Two questions owners ask about the fridge slide, and they are usually the same job. How do I get the slide out to repair something behind it, and why does the slide never lock in place when I push it home?
Both come down to understanding what a fridge slide is: a heavy-duty drawer slide carrying the heaviest single object in the camper, with a lock that has to hold that weight against every bump on the road.
Why the slide will not lock
A fridge slide locks by a catch engaging a stop when the slide is pushed fully home. When owners report that the slide has never locked, or has stopped locking, it is one of four things.
It is not fully home. The most common one. Something behind the fridge, a cable, a hose, a displaced piece of insulation, stops the slide travelling the last few millimetres, so the catch never reaches the stop. The slide feels closed. It is not.
The catch is out of adjustment. Most locking slides have an adjustable catch or stop. If it was never set correctly at the factory, or has moved, the catch and the stop do not meet.
The catch spring has failed or the catch is worn. After enough cycles, or after being forced, the catch no longer holds.
The slide is racked. If one side of the slide is further out than the other, because the fridge was pushed in at an angle or a mounting screw has let go, the two halves of the slide do not close together and the lock cannot engage.
Check in that order. The first two need no parts.
Before you remove anything
Empty and switch off the fridge. Obvious, but a fridge slide with a full fridge on it is dangerous to handle, and a 12 V compressor fridge should not be tipped far while running.
Photograph everything. The wiring, the gas connection if it is a three-way fridge, the drain hose, the mounting screws. You will be putting it back.
Disconnect power at the source. Not at the fridge. Pull the fuse or isolate the circuit, then confirm with a meter before touching any connection.
If it is a gas fridge, isolate the gas at the bottle and at the appliance valve, and be prepared to have the gas connection checked for leaks by someone qualified when it goes back.
Removing the slide
The sequence, which varies a little by model but follows this pattern:
- Pull the slide fully out and support the fridge. A second person or a block under the front edge, because the slide is about to lose its load.
- Disconnect the fridge. Power, and drain hose, and gas if fitted. Move the cables clear and secure them so they cannot fall back into the void.
- Unbolt the fridge from the slide tray. It is usually screwed down through the tray or held by brackets at the front. Lift the fridge off and set it down where it can stand upright.
- Locate the slide release. Full-extension slides have a release lever on each side, near the front when extended, that lets the drawer member separate from the cabinet member. Press both, one up and one down on most designs, and pull the tray forward off the slide.
- Unscrew the cabinet members from the cabinet sides. Note which side is which and which way up they go.
You now have the tray and both slide halves out, and clear access to whatever is behind.
While it is out: check the things that cause the problem
You will not get better access than this. Look at:
Whatever was stopping it closing. A cable or hose that had dropped into the slide path, or insulation that had come adrift. Secure it so it cannot happen again.
The mounting screws. Slides carrying this much weight loosen on corrugations. Any screw that has pulled or stripped needs a longer screw into solid material, or a plugged and re-drilled hole.
The catch. Operate it by hand. It should move freely and spring back positively. A catch that sticks or has no spring is the part to replace.
The fridge vent. With the fridge out, the compartment vent and the condenser behind the fridge are exposed. A condenser furred with dust runs hot and cools badly, and it is the reason a fridge loses performance after a long dusty trip. Clean it. If the compartment does not breathe well, a fridge vent fan forcing air through the compartment keeps the condenser cool, and the fridge cools better and draws less.
The fridge door handles. A common casualty on a fridge that has been pushed in and out on a slide that does not lock. Replacement Dometic fridge handles are sold as a pair.
Adjusting or replacing the lock
Adjusting. With the slide back in the cabinet and unloaded, close it and watch the catch. If it stops short of the stop, move the stop or the catch until they meet with the slide fully home. Most have a slotted mounting or an adjustment screw for exactly this. Set it so the catch engages with a positive click and the slide cannot be pulled open without operating the release.

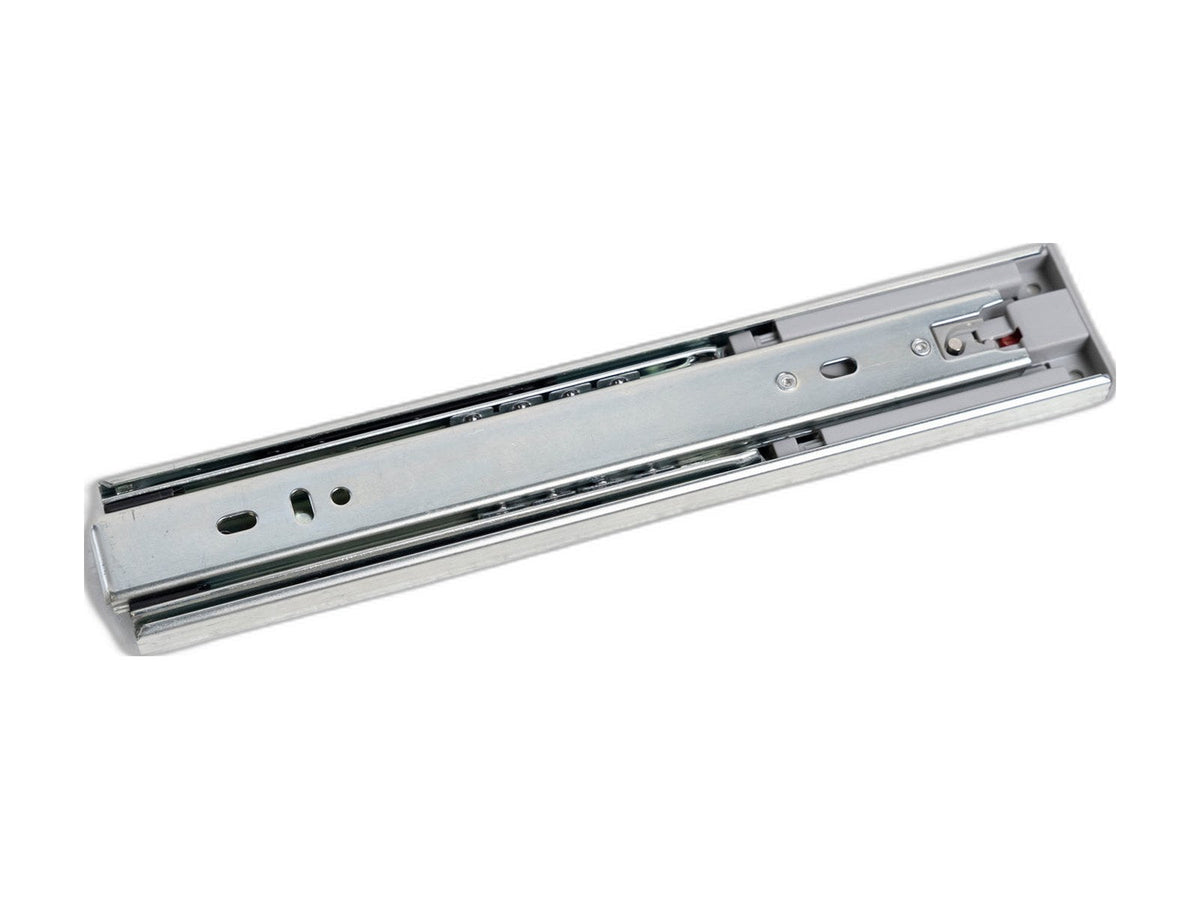

Replacing. If the catch is worn, the spring has gone, or the slide is bent, replace the slide rather than the catch alone. The genuine locking cabinet drawer slide is the OEM locking slide for HQ Series cabinets, with a mechanism that holds the drawer shut in transit. Measure the length and the mounting pattern of your existing fridge slide before ordering, because fridge slides are longer and heavier duty than standard cabinet slides and the part has to match both the load and the length.
If the cabinet door in front of the fridge is what is opening, rather than the slide, a push-to-open cabinet latch is the fix for that, and it is a different problem.
Putting it back
Reverse the removal, with three things worth doing properly:
- Fit the cabinet members level and parallel. A racked slide will never lock. Measure from a fixed reference at front and back on both sides.
- Load-test before connecting anything. Push the empty tray in and out a few times and confirm the lock engages every time before the fridge goes on.
- Route cables and hoses so they cannot drop into the slide path, which is what caused the problem in the first place. Cable-tie them to something fixed, with slack for the slide's travel.
Then reconnect, test the fridge, and if it is gas, have the joint leak-checked.
The short version
A fridge slide that will not lock is usually something behind it stopping the last few millimetres of travel, or a catch that was never adjusted. Get the slide out, clear the path, secure the wiring, set the catch, and clean the condenser while you are there.
If you are unsure which slide fits, send us the length and a photo of the mounting and we will match it. Everything ships from Upland, California.
