Off-road trailer shock replacement is needed when your camper bounces excessively, sways after bumps, bottoms out, leaks oil, wears tires unevenly, or feels unstable on washboard roads. The right replacement shock must match the trailer model, suspension design, mounting points, travel length, loaded weight, and the terrain you actually tow through.
A shock absorber does not carry the trailer’s weight by itself. Its job is to control suspension movement. On an off-road camper, that matters a lot. Springs support the load, but shocks manage how quickly the suspension compresses and rebounds after bumps, dips, rocks, potholes, and corrugations. When shocks are worn or poorly matched, the trailer can feel loose, harsh, noisy, or unpredictable.
What Trailer Shock Absorbers Do
Trailer shock absorbers are dampers. They slow down suspension movement so the tires stay more controlled and the trailer settles quickly after bumps.
Without effective shocks, the suspension can continue bouncing after each impact. That extra movement affects tire contact, braking stability, cargo protection, and driver confidence. It can also increase stress on suspension bushings, mounts, frame brackets, cabinets, plumbing, and electrical components.
On an off-road camper, shocks help with:
| Function | Why It Matters |
|---|---|
| Bounce control | Helps the trailer settle after bumps |
| Tire contact | Keeps tires more planted on uneven ground |
| Sway reduction | Reduces repeated side-to-side movement |
| Cargo protection | Limits harsh motion inside the camper |
| Brake stability | Helps the trailer track better during braking |
| Suspension durability | Reduces uncontrolled impacts through the system |
| Towing comfort | Makes rough roads feel more manageable |
Good shocks do not make a trailer immune to rough terrain, but they make the suspension more controlled and easier to trust.
Why Off-Road Campers Are Hard on Shocks
A pavement-only travel trailer may spend most of its life on smooth highways and campground roads. Off-road campers see much harsher conditions.
Common shock stressors include:
| Condition | How It Affects Shocks |
|---|---|
| Washboard roads | Creates rapid repeated suspension movement |
| Deep potholes | Forces sudden compression and rebound |
| Rocks and ledges | Can push shocks through long travel cycles |
| Heavy water tanks | Increases suspension load |
| Front storage boxes | Adds tongue and chassis weight |
| Long remote trips | Builds heat inside the damper |
| Dust and mud | Can damage seals and moving surfaces |
| Water crossings | Increase corrosion risk |
| Overspeeding on rough roads | Overheats and overworks the suspension |
Heat is a major issue. Shocks convert suspension movement into heat. On long corrugated roads, a basic shock can heat up, fade, and lose damping performance. That is one reason serious off-road trailers often benefit from higher-quality dampers or remote reservoir designs.
Signs Your Off-Road Trailer Shocks Need Replacement
Excessive Bouncing
If the trailer keeps bouncing after crossing a bump, dip, or driveway transition, the shocks may be weak. A controlled trailer should settle quickly instead of continuing to oscillate.
More Sway Than Usual
Shocks are not the only cause of sway, but worn dampers can make sway worse. If the trailer feels floaty, slow to settle, or more reactive to passing trucks and rough pavement, inspect the suspension.
Oil Leaks on the Shock Body
Visible oil on the shock body often means a seal has failed. A light film from road grime is different from wet oil running down the damper. A leaking shock should be replaced.
Uneven Tire Wear
Cupped or scalloped tire wear can point to suspension control problems, tire balance issues, alignment problems, or worn components. Inspect shocks, bushings, bearings, and tire pressure together.
Harsh Bottoming
If the suspension bottoms out more often than before, the trailer may be overloaded, the springs may be tired, or the shocks may not be controlling movement properly.
Clunking or Rattling
Noise can come from worn shock bushings, loose bolts, cracked mounts, or internal shock failure. Do not assume every clunk is normal off-road noise.
Poor Control on Washboard Roads
A trailer that skips, chatters, or feels uncontrolled on corrugated dirt roads may have shocks that are fading under heat or no longer matched to the loaded trailer.
Shock Replacement vs Suspension Repair
A new shock will not fix every suspension problem. Before ordering parts, inspect the whole suspension system.
| Symptom | Shock Issue Possible | Other Causes to Check |
|---|---|---|
| Trailer bounces repeatedly | Yes | Overloaded trailer, weak springs |
| One side sits lower | Maybe | Spring, trailing arm, frame, tire pressure |
| Clunk over bumps | Yes | Bushings, loose bolts, mounts, coupler |
| Tire cupping | Yes | Bearings, alignment, wheel balance, tire pressure |
| Trailer sways | Maybe | Loading, tongue weight, tires, hitch setup |
| Bottoming out | Maybe | Overload, spring rate, travel limits |
| Pulling during braking | Not usually | Brakes, bearings, tire pressure |
A shock absorber should be replaced if it is leaking, damaged, loose, bent, internally failed, or no longer controlling movement. But if the root problem is overloading, poor weight distribution, or worn bushings, shocks alone will not solve it.
How to Choose the Right Off-Road Trailer Shock
Match the Trailer Model
Fitment comes first. Shock length, mount style, eye size, bushing type, travel range, and clearance must match the trailer suspension.
For Black Series HQ campers, check your model and year before ordering. A shock that fits one chassis setup may not fit another if the suspension layout, bracket position, or ride height differs.
Verify:
| Fitment Point | What to Check |
|---|---|
| Trailer model | HQ12, HQ15, HQ17, HQ19, HQ21, HQ22T, or other compatible model |
| Suspension type | Independent suspension, trailing arm, or other design |
| Mount style | Eye-to-eye, stem, or bracket-specific mounting |
| Extended length | Must not overextend at full droop |
| Compressed length | Must not bottom before suspension stops |
| Bushing size | Must match mounting hardware |
| Body clearance | No contact with frame, tire, tank, or brake wiring |
| Reservoir location | Must be protected and securely mounted |
| Side-specific routing | Remote reservoir hose must not rub or kink |
RV Parts Giant carries the Radflo Shock with Remote Reservoir for Black Series HQ, listed in its Radflo suspension collection. It is most relevant for compatible Black Series HQ applications where a remote reservoir shock is the correct fit.
Match the Shock to the Trailer Weight
A shock that works on an empty trailer may not perform the same after the camper is loaded with water, batteries, tools, recovery gear, food, spare parts, and outdoor equipment.
Always think in terms of travel weight, not dry weight. If your trailer is frequently loaded near its limit, shock performance becomes more important.
Consider the Terrain
Highway towing, gravel roads, and technical off-road travel all place different demands on shocks.
| Terrain | Shock Priority |
|---|---|
| Mostly highway | Stability, ride control, long service life |
| Gravel roads | Heat management and vibration control |
| Washboard roads | Fade resistance and damping consistency |
| Rocky trails | Travel control and impact durability |
| Remote overlanding | Serviceability and reliability |
| Mixed use | Balanced damping and correct fitment |
If you tow long distances on corrugated roads, a more capable shock can make a noticeable difference in control and durability.
Remote Reservoir Shocks: What They Do
A remote reservoir shock uses an external reservoir connected to the main shock body. This gives the shock more fluid capacity and can help manage heat during repeated suspension movement. Some remote reservoir shocks also include adjusters that let the damping feel be tuned for different loads or terrain.
Benefits can include:
| Benefit | Why It Helps |
|---|---|
| More oil volume | Helps manage heat during long rough-road sections |
| Better fade resistance | Damping can stay more consistent |
| Packaging flexibility | Reservoir can be mounted away from the shock body |
| Performance tuning | Adjustable models can be matched to terrain or load |
| Off-road durability | Better suited to repeated high-demand movement |
Remote reservoir shocks are not required for every RV. But for off-road campers that regularly see rough roads, they can be a worthwhile upgrade when properly matched and mounted.
The Radflo shock listed by RV Parts Giant includes a remote reservoir and compression adjuster in the product name, which makes it especially relevant for Black Series HQ owners looking for a more performance-oriented suspension replacement.
Step-by-Step Shock Inspection
1. Park on Level Ground
Park the trailer on a level surface, chock the wheels, and make sure it cannot move. If you need to lift the trailer, use proper jack points and rated stands.
2. Inspect for Leaks
Look at the shock body, shaft area, hose, and reservoir if equipped. Wet oil, dirt stuck to oil, or streaking down the shock body can indicate seal failure.
3. Check Bushings and Mounts
Inspect the upper and lower shock mounts. Look for cracked bushings, elongated holes, loose bolts, rust trails, missing washers, or metal-to-metal contact.
4. Look for Dents or Bent Shafts
A dented shock body or bent shaft can affect performance and seal life. Off-road debris and rock strikes can damage exposed components.
5. Check for Interference
Look for rubbing near tires, brake wiring, water tanks, frame brackets, and reservoir hoses. A shock or hose that contacts another component will eventually fail.
6. Compare Both Sides
If one shock looks oily, dented, loose, or overheated while the other looks normal, inspect the trailer for uneven loading, bent brackets, suspension damage, or tire pressure differences.
7. Road Test Carefully
Tow the trailer over a known road at a safe speed. Listen for clunks, feel for bounce, and watch how quickly the trailer settles. Do not use a road test to push a questionable suspension harder.
Step-by-Step Off-Road Trailer Shock Replacement Overview
This overview is for planning. Always follow the trailer and shock manufacturer’s instructions. Suspension work affects towing safety.
1. Confirm Fitment Before Disassembly
Compare the replacement shock with the current part. Check mount style, length, bushings, reservoir routing, and hardware before removing anything.
2. Support the Trailer Safely
Chock the wheels and support the trailer with rated stands if lifting is required. Do not work under a trailer supported only by a jack.
3. Support the Suspension Arm
If the shock is under suspension load, support the trailing arm or axle area as instructed. Removing a loaded shock without support can be unsafe.
4. Remove the Old Shock
Remove the lower and upper mounting hardware. If bolts are seized, use care. Do not damage mounting brackets.
5. Inspect the Mounts
Before installing the new shock, inspect the brackets for cracks, elongation, rust, or bending. A new shock installed on a damaged mount will not last.
6. Install the New Shock
Fit the shock in the correct orientation. If it has a remote reservoir, route and mount the hose and reservoir so they cannot rub, kink, or hit moving parts.
7. Torque Hardware Correctly
Use the correct hardware and torque specifications. Over-tightening can crush bushings. Under-tightening can create movement and noise.
8. Check Travel Clearance
Cycle or inspect the suspension through its expected movement range where practical. Confirm there is no contact at full droop, compression, or steering/tire movement if applicable.
9. Repeat on the Other Side
Shocks should normally be replaced in pairs on the same axle. A fresh damper on one side and a worn damper on the other can create uneven control.
10. Test Drive and Recheck
After a short tow, recheck mounting hardware, reservoir clamps, hoses, and signs of contact. Recheck again after the first rough-road trip.
Why Shocks Should Usually Be Replaced in Pairs
Trailer suspension works side to side. If one shock is new and the other is worn, damping can become uneven. That can make the trailer feel strange over bumps, during braking, or on uneven ground.
Replace shocks in pairs when:
| Situation | Why Pair Replacement Helps |
|---|---|
| One shock is leaking | The other is likely similar age |
| One shock is damaged | Balanced damping matters |
| Upgrading shock type | Both sides should match |
| Unknown service history | Better reliability |
| Off-road travel planned | Reduces uneven behavior |
If a nearly new shock was damaged by a rock strike or isolated incident, replacing only one may be reasonable if the other side is identical and in excellent condition. For most RV owners, pair replacement is the safer habit.
Common Mistakes to Avoid
Buying by Length Alone
Shock length matters, but it is not the only fitment requirement. Mount type, bushing size, travel, body diameter, reservoir location, and clearance all matter.
Ignoring Loaded Weight
A lightly packed trailer behaves differently from a fully loaded off-road camper with water, batteries, tools, and recovery gear. Evaluate suspension with the trailer loaded for travel.
Reusing Damaged Hardware
Old bolts, crushed washers, and worn bushings can ruin a new shock installation. Replace hardware if it is damaged, stretched, corroded, or incorrect.
Mounting the Reservoir Where It Can Rub
Remote reservoir hoses and clamps need careful routing. A hose that touches the frame, tire, brake wire, or suspension arm can fail on rough roads.
Over-Tightening Bushings
Rubber or polyurethane bushings need proper compression. Crushing them can shorten life and create harshness.
Ignoring Other Suspension Parts
Bad bushings, loose arms, worn bearings, weak springs, and incorrect tire pressure can all make a good shock feel poor.
Driving Too Fast on Washboard Roads
Even excellent shocks have limits. Slow down before heat and repeated impacts overwhelm the suspension.
Maintenance Tips for Longer Shock Life
Rinse After Mud and Salt
Mud, clay, and road salt can accelerate wear and corrosion. Rinse shocks, mounts, and reservoirs after dirty trips.
Inspect After Rough Roads
After washboard roads or rocky sections, check shock bodies, bushings, bolts, and reservoir mounts. Look for fresh contact marks or loose hardware.
Keep Reservoir Hoses Protected
If your shock has a remote reservoir, inspect hose routing regularly. Make sure clamps are still secure and the hose has not shifted.
Watch Tire Wear
Unusual tire wear can reveal suspension control problems early. Check tires during every trip.
Check Mounting Bolts
Vibration can loosen hardware. Recheck shock mounting bolts after installation and after the first demanding trip.
Include Shocks in Seasonal Service
Shocks should be inspected with tires, brakes, bearings, suspension bushings, and couplers. RV Parts Giant’s off-road camper maintenance checklist is a useful internal guide for building that routine.
How Shocks Work With the Rest of the Suspension
A shock absorber is only one part of the suspension system. If other parts are worn or mismatched, the trailer will still feel wrong.
| Component | How It Affects Ride |
|---|---|
| Springs | Support trailer weight and ride height |
| Shocks | Control suspension movement |
| Bushings | Allow controlled pivot movement |
| Tires | Absorb impact and maintain contact |
| Bearings | Allow smooth wheel rotation |
| Brakes | Add heat and load through the hub |
| Coupler | Affects towing feel and articulation |
| Load distribution | Changes suspension behavior |
If your camper feels unstable, inspect the whole system. A rough towing feel is rarely caused by one part alone.
RV Parts Giant’s RV wheel bearing replacement guide and RV electric trailer brake replacement guide are relevant because hub, brake, and suspension problems often show up together as heat, noise, vibration, or poor towing control.
Remote Reservoir Shock Adjustment Basics
If your replacement shocks include compression adjustment, use it carefully. Adjustment is not a cure for wrong fitment or overloading. It is a tuning tool.
General guidance:
| Condition | Possible Adjustment Direction |
|---|---|
| Trailer feels too soft over repeated bumps | Increase compression damping slightly |
| Trailer feels harsh over small chatter | Decrease compression damping slightly |
| Trailer bottoms too easily | Check load first, then adjust if appropriate |
| Trailer skips on corrugations | Reduce speed and fine-tune damping |
| Trailer behavior changed after loading | Adjust only after confirming tire pressure and weight |
Make small changes and test on the same road when possible. Record settings so you can return to a known baseline.

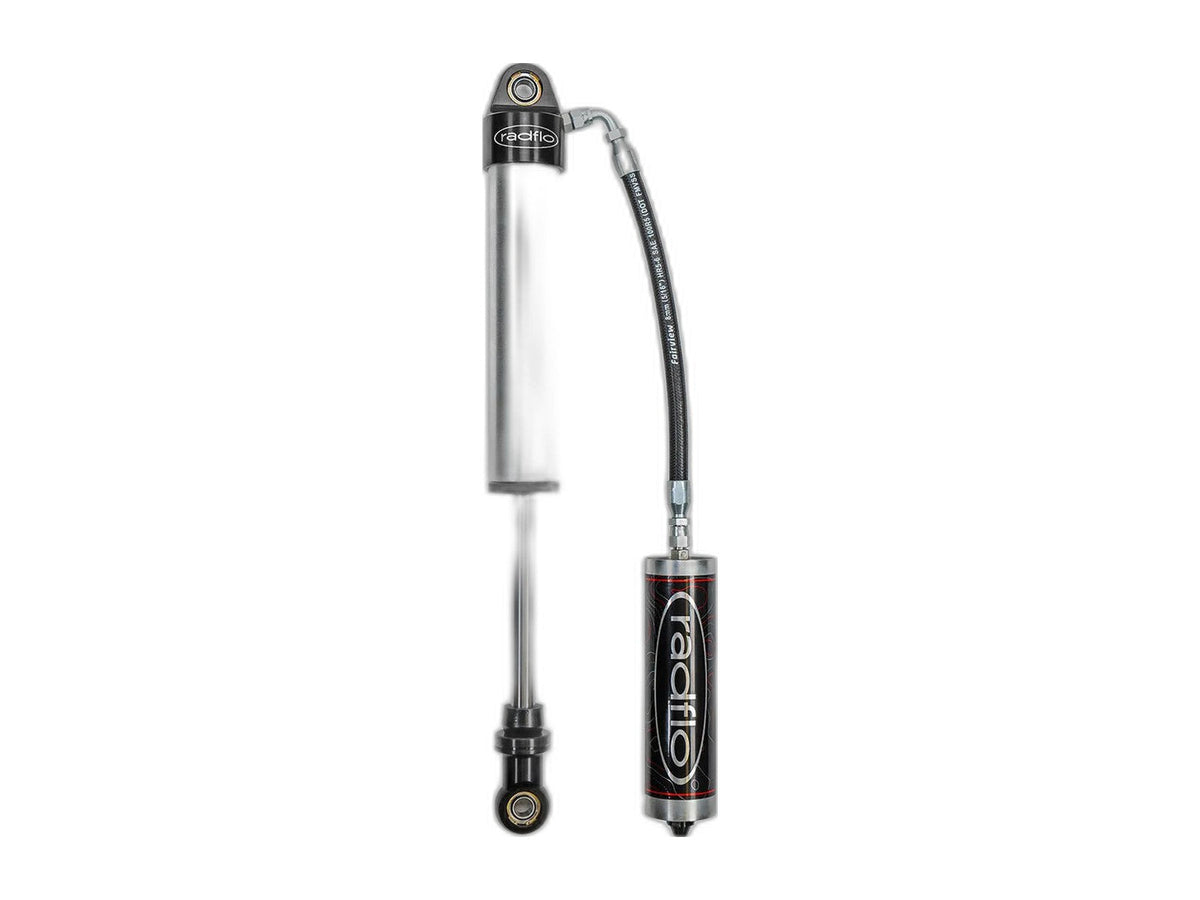

Product Recommendation: Radflo Shock for Black Series HQ
For compatible Black Series HQ campers, RV Parts Giant’s Radflo Shock with Remote Reservoir for Black Series HQ is the most relevant product to review. The collection page identifies it as a Radflo off-road shock and suspension component, and the product name indicates a remote reservoir and compression adjuster.
It is a suitable option to consider when:
| Situation | Why It Fits |
|---|---|
| Your Black Series HQ shock is leaking or damaged | Replacement restores damping control |
| You tow on rough roads often | Remote reservoir design supports demanding use |
| You want damping adjustability | Compression adjustment helps tune loaded behavior |
| Your current shocks fade on washboard roads | More performance-oriented design may help |
| You are refreshing suspension before remote travel | New shocks improve confidence and control |
Before ordering, confirm model compatibility, quantity needed, mounting hardware, reservoir routing, and whether other suspension parts also need attention.
Shock Replacement for Black Series and Overland Campers
Black Series and similar off-road campers are often loaded with gear and driven far from paved roads. That makes suspension maintenance more important than it may be on a standard campground trailer.
Before a major trip, inspect:
| Area | What to Check |
|---|---|
| Shocks | Leaks, dents, bushings, mounts |
| Springs and arms | Cracks, sagging, impact damage |
| Bushings | Wear, noise, looseness |
| Tires | Pressure, sidewall cuts, uneven wear |
| Bearings | Heat, play, grease condition |
| Brakes | Drag, wiring, shoe wear |
| Coupler | Locking, articulation, bolts |
| Load | Balanced gear and correct tongue weight |
RV Parts Giant’s off-road RV upgrades guide is a helpful related article because shocks work alongside tires, suspension, power systems, recovery gear, and campsite equipment.
Pros and Cons of Upgrading to Remote Reservoir Shocks
| Pros | Cons |
|---|---|
| Better heat management on rough roads | Higher cost than basic shocks |
| More consistent damping under repeated impacts | Fitment must be checked carefully |
| Useful for loaded off-road campers | Reservoir routing takes extra attention |
| Compression adjustment can fine-tune ride | Incorrect settings can feel harsh or too soft |
| Stronger performance focus | Still requires maintenance and inspection |
For occasional paved-road towing, basic replacement shocks may be enough. For regular rough-road travel, remote reservoir shocks are easier to justify.
Expert Recommendation
For most off-road camper owners, shock replacement should be based on condition, fitment, and how the trailer behaves when loaded. Replace leaking, dented, loose, or poorly performing shocks before a long trip. Replace shocks in pairs when possible. Inspect mounts and bushings before installing new dampers.
If your trailer spends real time on washboard roads, rocky tracks, or remote routes, consider a higher-performance option such as a remote reservoir shock when it matches your camper. If your trailer is mostly used on pavement and mild gravel, correct fitment and fresh standard damping may matter more than premium features.
The goal is not a stiff trailer. The goal is a controlled trailer.
FAQs
How do I know if my off-road trailer shocks are bad?
Common signs include excessive bouncing, oil leaks, clunking, poor control on washboard roads, uneven tire wear, increased sway, or a trailer that takes too long to settle after bumps.
Should trailer shocks be replaced in pairs?
Yes, in most cases. Replacing shocks in pairs keeps damping balanced across the axle. A new shock on one side and a worn shock on the other can cause uneven control.
What do remote reservoir shocks do on an off-road trailer?
Remote reservoir shocks increase oil capacity and can help manage heat during repeated suspension movement. This helps damping stay more consistent on rough roads, washboard tracks, and long off-road trips.
Can worn shocks cause trailer sway?
Worn shocks can contribute to sway or make it worse, but they are not the only cause. Also check tongue weight, tire pressure, hitch setup, loading, suspension bushings, and wheel bearings.
Are stiffer shocks better for an off-road camper?
Not always. A shock should control movement without making the trailer harsh or causing tires to skip over rough surfaces. The best shock is properly matched to the trailer weight, suspension travel, and terrain.
Can I replace off-road trailer shocks myself?
Experienced DIY owners can replace some trailer shocks, but the trailer must be supported safely and the suspension must be handled correctly. If mounts are damaged or fitment is uncertain, use a qualified RV or suspension technician.
Final Takeaway
Off-road trailer shock replacement is about restoring control. Worn shocks can make a camper bounce, sway, clunk, overheat tires, and feel unsettled on rough roads. Fresh, correctly fitted shocks help the suspension settle faster, protect components, and improve towing confidence.
Inspect shocks regularly, especially after rough-road travel. Look for leaks, dents, worn bushings, loose mounts, hose rubbing, and uneven tire wear. For compatible Black Series HQ campers, RV Parts Giant’s Radflo Shock with Remote Reservoir is a strong replacement option to review when you want a performance-focused damper built for demanding off-road use.
