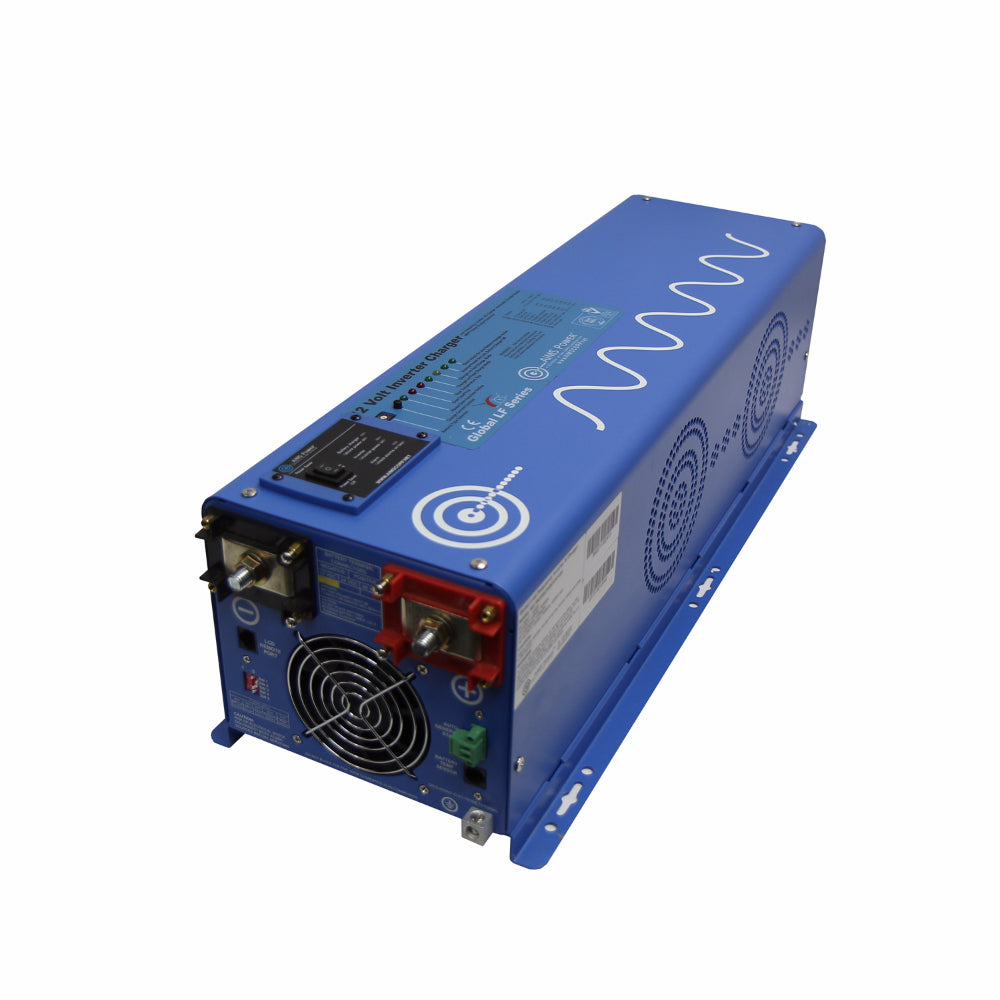

AIMS Power 4000W Split Phase Inverter Charger 12V, 120V Charge Input
- Regular price
- $1,733.00
- Sale price
- $1,733.00
- Regular price
-
$1,920.00
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability
Deliver dependable 120/240V split-phase power anywhere with a rugged 4000W inverter charger built for off-grid, mobile, and emergency backup systems.
The AIMS Power 4000 Watt, 33A, Pure Sine Inverter Charger is a heavy duty 3-in-1 power solution designed for reliable off-grid, backup, and mobile power applications. Combining a pure sine inverter, a powerful multi-stage battery charger, and an automatic transfer switch into one rugged system, this unit delivers clean energy for both sensitive electronics and demanding tools.
Built with low frequency inverter technology and conformal coated internal boards, this inverter charger is engineered for long lasting performance in real-world environments such as RVs, boats, off-grid cabins, work vehicles, and backup power systems. The powerful 12V battery input and split phase 120/240V AC output make it a versatile solution for both Do It Yourselfer power systems and professional installations.
For Everyday Users: Run appliances, refrigerators, tools, and electronics with clean, stable pure sine wave power. Enjoy seamless backup during outages, plus a built-in lithium battery wake-up feature for over discharged batteries.

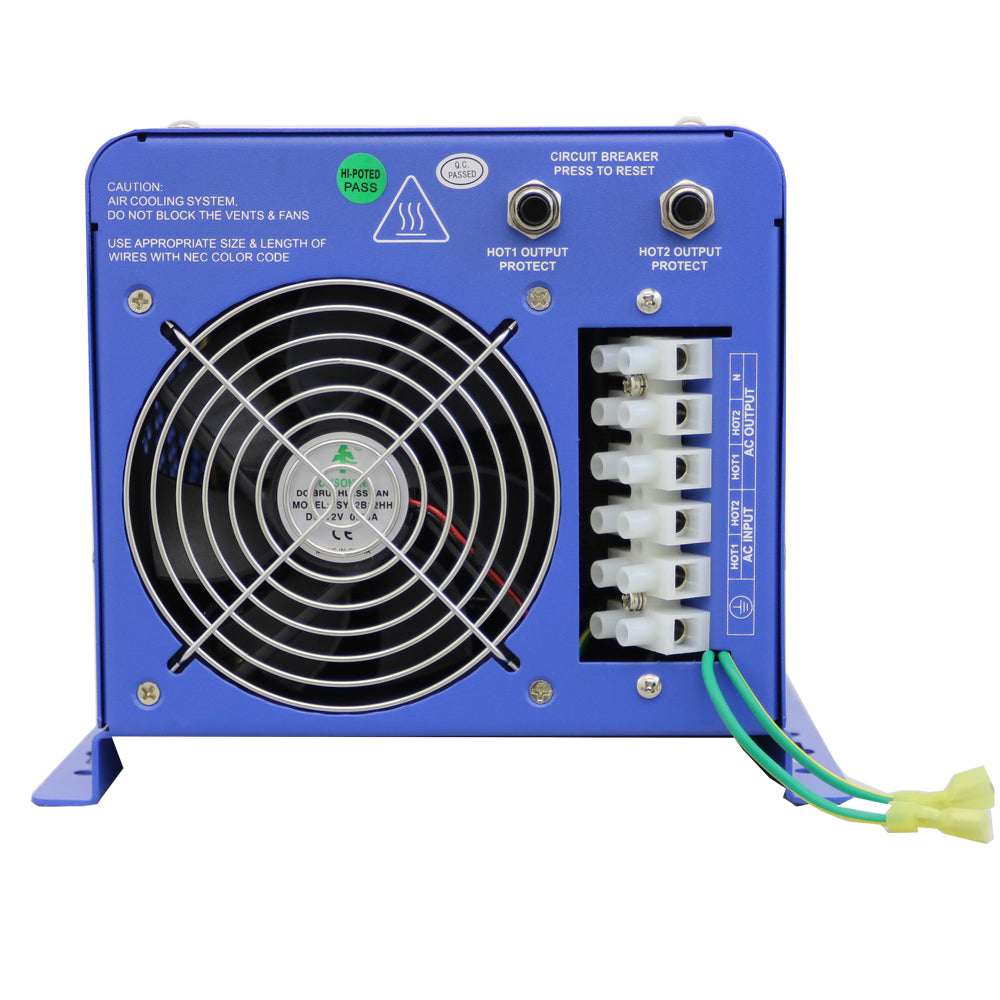

- Installers: A direct-connect terminal block supports full surge capacity, while selectable battery types and automatic transfer switching simplify installation and system integration. Flexible remote operation is available with an optional wired LCD remote or Bluetooth dongle, making it easy to monitor the system even when installed in hard-to-reach locations.
Specifications
- Built-in charger: 70A
- AC output: 120 / 240 VAC - Split Phase
- Battery wake-up: Yes
- Bluetooth: Yes, with dongle BT-AIMS-PRO
- Battery types charged: AGM, GEL, Lithium, Lead, User Defined
- Hardwire terminal block: Yes
- AC input: 120V AC
- DC input: 12 VDC
- Continuous / surge AC amps: 33.33 A | 100 A
- Output type: Pure Sine Inverter Charger + Transfer Low Frequency
- Continuous / surge output: 4000W | 12000W
- Outlets: None: Hardwire Only
- Typical loads: Compressors, Pumps, Motors / Heavy Duty Multiple Devices High Demand / Large Variable Speed Motors / Appliances with Display / Motors & Pumps Requiring 240V
- Remote options: Bluetooth Dongle BT-AIMS-PRO / Ignition Switch REMLFLCDIGN / LCD & On/Off REMOTELF / On/Off w/LEDs REMOTELFLED
- Transfer switch: Yes
- Warranty: 3 Year
- Weight: 85 lb
- AIMS Power model: PICOGLF4012120240VS
Genuine AIMS Power, backed by the AIMS Power warranty. Ships from our warehouse in Upland, California. Questions about sizing an inverter, battery or solar setup for your RV or van? Ask us before you order.
