ARK XO750 XL Trailer Jack, Black (ORJW750XLBDU)
- Regular price
- $388.00
- Sale price
- $388.00
- Regular price
-
$410.00
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability
Free Shipping & Free 30-Day Returns — prepaid return label, no restocking fee. Details

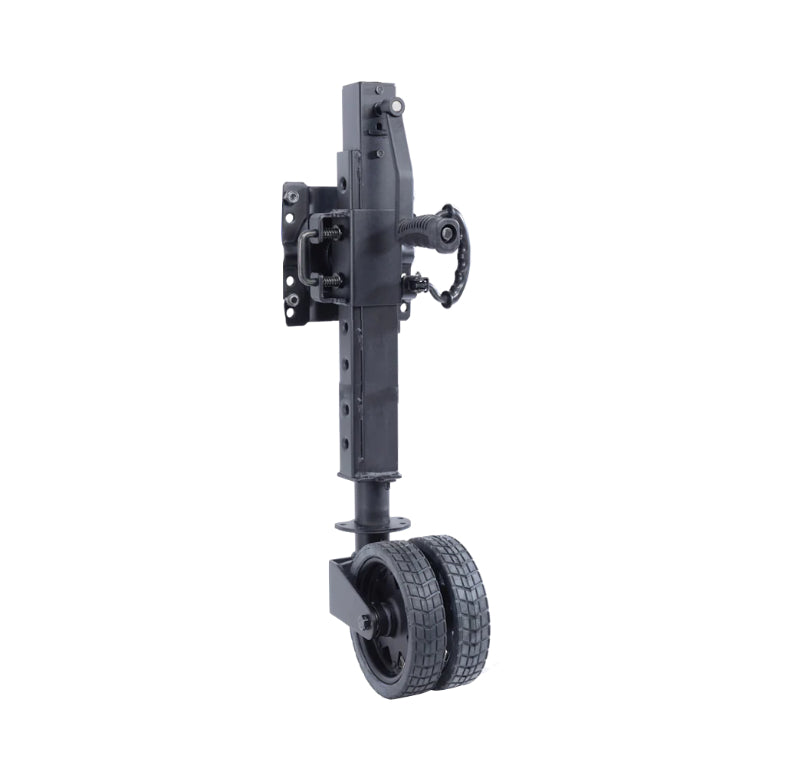

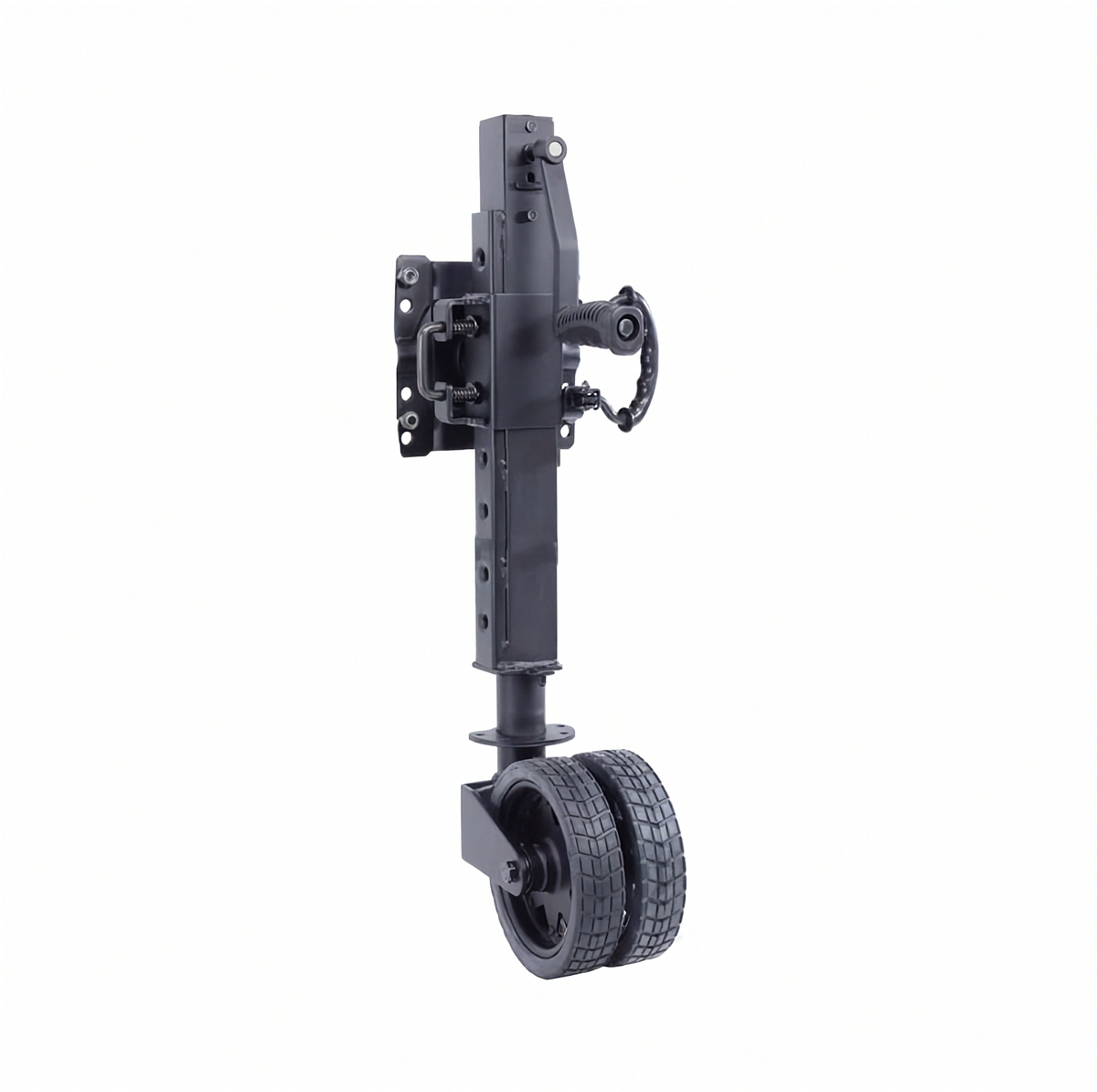

The ARK XO750 XL is the extra-long-body version of the XO750 off-road trailer jack, built for lifted campers and tall drawbars where a standard jack runs out of travel. The longer main body delivers a 12-inch minimum and 33-inch maximum height while keeping the full heavy-duty 1650 lb rating.
A four-bolt pivot on the heavy-duty swivel clamp stops the jack bowing under load, and the clamp suits 3, 4, 5, and 6-inch drawbars with the included mounting hardware, so there's no welding. Six height positions each offer 10 inches of adjustment around a central swivel point, two 8-inch sealed-bearing off-road wheels spread the load on soft ground, and the easy-pivot trailing yoke turns even under a heavy trailer. A five-position yoke lock clears stone guards, toolboxes, and jerry can holders when stowed, the magnetic side-winding handle removes for safe storage, and the finish is salt-spray tested for 600 hours.
In stock and shipping from Upland in 3–7 days.
Specifications
- Brand: ARK
- Part number: ORJW750XLBDU
- Load rating: 1650 lb

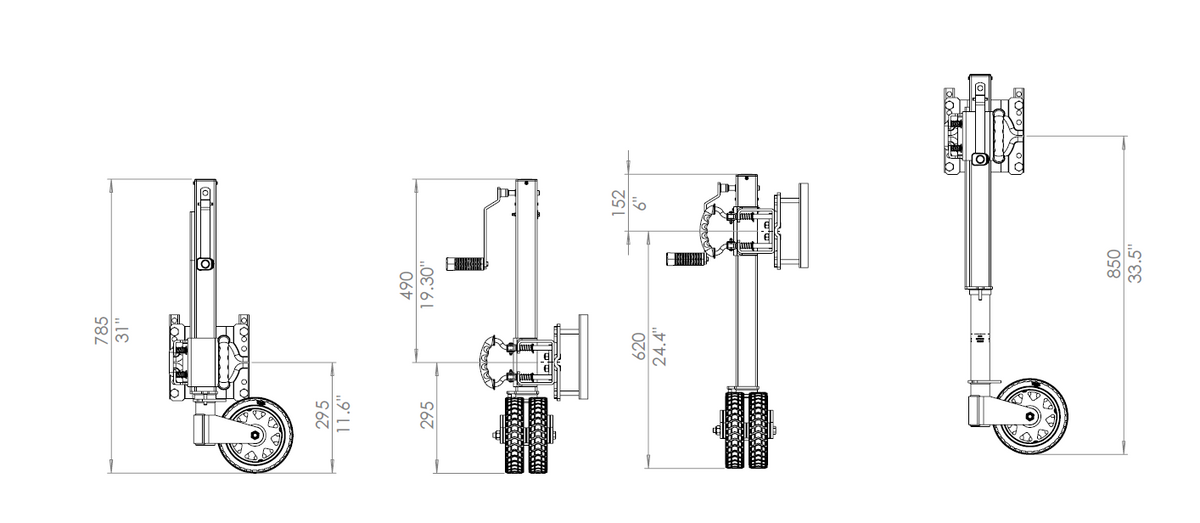

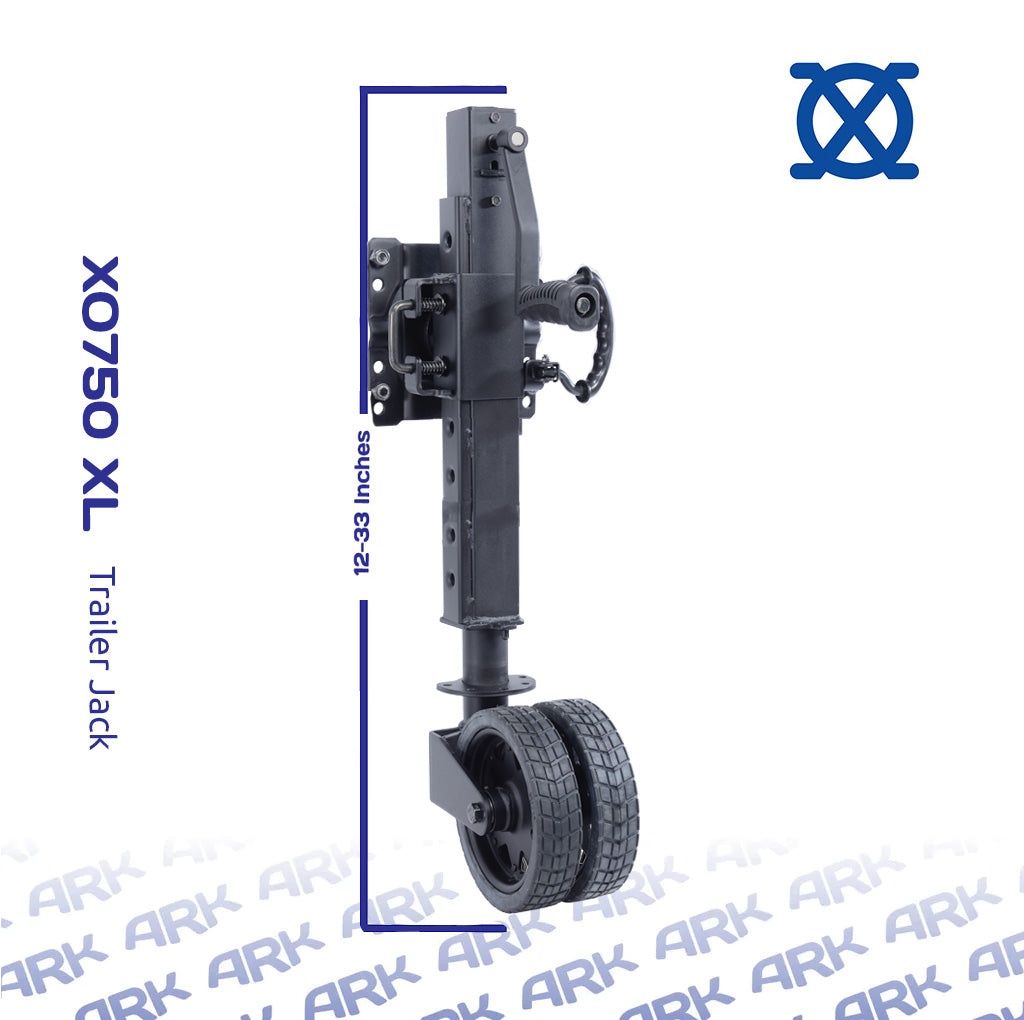

- Height: 12" min, 33" max
- Height positions: 6, with 10" adjustment at each
- Drawbars: 3", 4", 5" and 6" (mounting hardware included)
- Wheels: 2 x 8", sealed bearings, off-road tread
- Yoke lock: 5-position
- Handle: Magnetic, removable side-wind
- Corrosion testing: 600-hour salt spray
Shop the full ARK range at RV Parts Giant.
Eligible unused and uninstalled physical products may be returned
within 30 days after delivery.
Regular sale and discounted products are eligible for return.
Only products clearly marked “Final Sale” before purchase are
non-returnable.
Conditions and exclusions apply. See our Return and Refund Policy.
Free standard shipping is available on eligible physical-product orders delivered within the contiguous United States, with no minimum order amount.
Black Series generic replacement parts and products or orders that are oversized, require freight shipping, are special-order, contain hazardous materials, or are delivered to remote or limited-access areas are excluded. Any applicable shipping charge will be displayed at checkout before you submit your order.
In-stock products are generally processed within 1–2 business days. Estimated delivery is approximately 4–12 business days, depending on the product, destination, carrier, and delivery method.
Alaska, Hawaii, U.S. territories, and international destinations are not included in the contiguous United States free-shipping offer. See our Shipping Policy for complete details.
Frequently Bought Together
Shop All*EDITED* After several days, I received a text message from Josh with Ark. He let me know the company had reached out several times and to check my spam folder. I did so and noticed that I received about 4 or 5 emails all at the same time to my spam folder. So, maybe there was a delay with the email servers. ANYWAYS, Josh was excellent and even helped me with my questions about the application to my trailer, the jacks dimensions, etc. It works perfect for my trailer and I am very pleased. I came slightly damaged (cosmetic only) and they offered to return a portion of what I paid, which I agreed to since I love the jack itself. HIGHLY recommend. I've tried emailing twice, calling 10 to 15 times, left two voicemails... all to just ask 2 questions about this jack but because I can't even get an email or call back from the company, I don't even want to place the order for fear of poor customer service.
Originally posted on arkcorporation.us, ARK's official store, and shared here by RV Parts Giant, an authorized ARK dealer.
Excellent
Originally posted on arkcorporation.us, ARK's official store, and shared here by RV Parts Giant, an authorized ARK dealer.

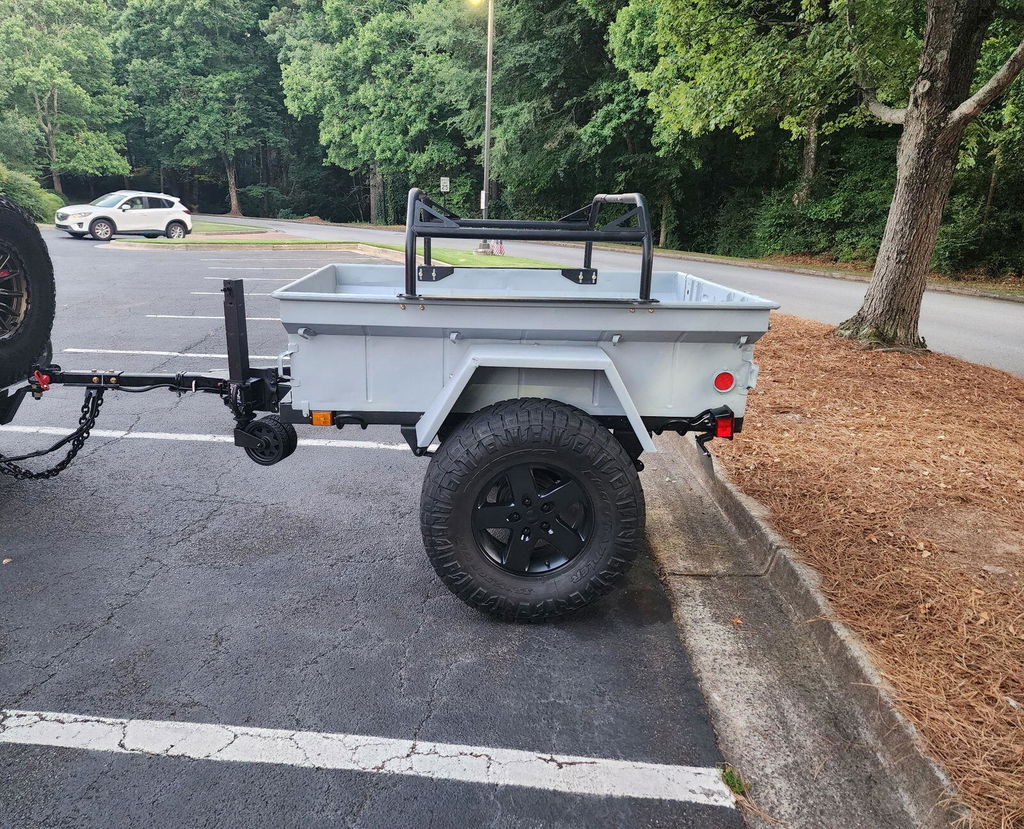

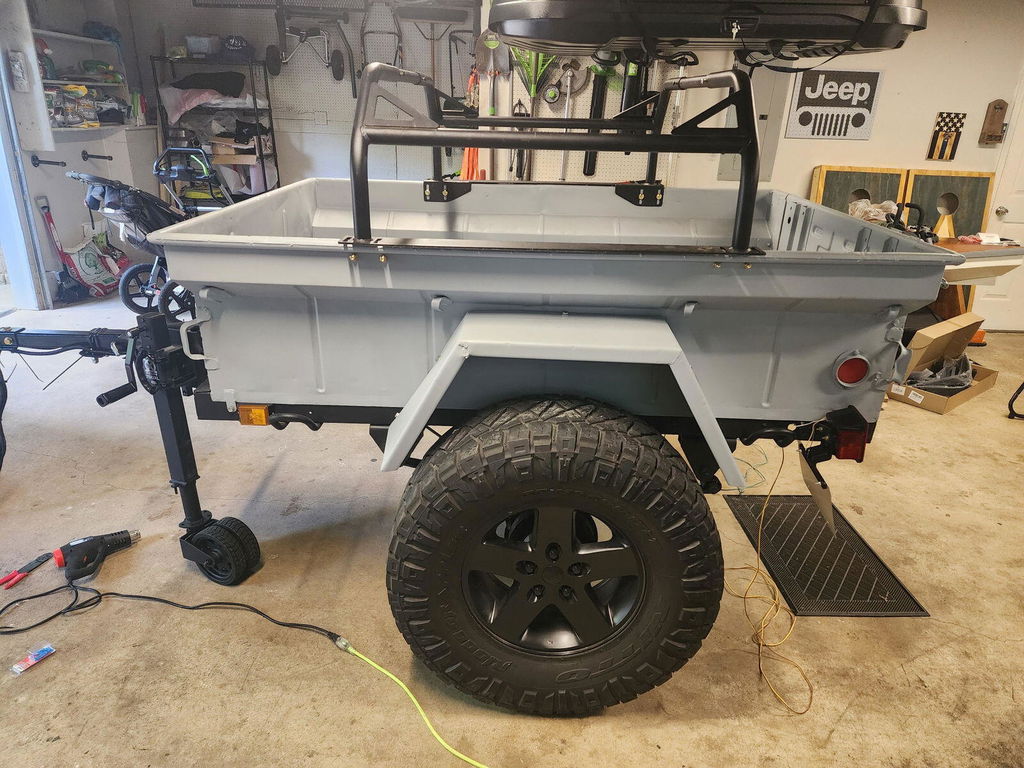

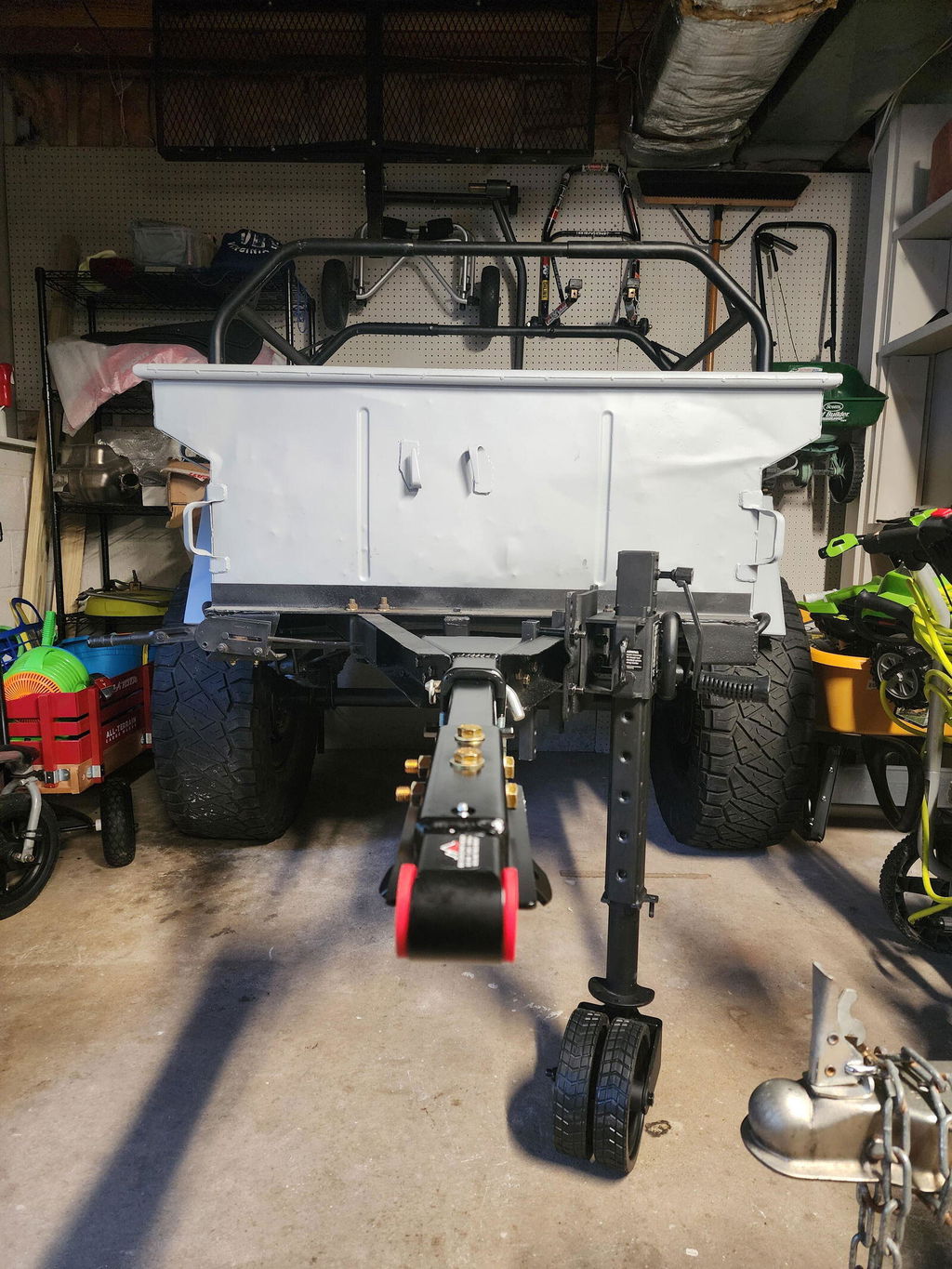

Trailer was originally built with the 500. Broke it in less than a week. With a little modification the 750xl in black works and looks amazing
Originally posted on arkcorporation.us, ARK's official store, and shared here by RV Parts Giant, an authorized ARK dealer.
Love it
Originally posted on arkcorporation.us, ARK's official store, and shared here by RV Parts Giant, an authorized ARK dealer.
This jack is super tough and has the adjustments I need for my trailer, it was pricey but well worth it. Anything comparable only had foot pads, this has 2 tough wheels.
Originally posted on arkcorporation.us, ARK's official store, and shared here by RV Parts Giant, an authorized ARK dealer.
What are the wheels like?
Two 8-inch sealed-bearing off-road wheels spread the load on soft ground, and the easy-pivot trailing yoke turns even under a heavy trailer.
How is the XL different from the standard XO750?
A longer main body giving a 12-inch minimum and 33-inch maximum height, for lifted campers and tall drawbars where a standard jack runs out of travel. It keeps the full 1650 lb rating.
How many height positions are there?
Six, each offering 10 inches of adjustment around a central swivel point, with a five-position yoke lock to clear stone guards, toolboxes and jerry can holders when stowed.
Which drawbar sizes does the clamp fit?
3, 4, 5 and 6-inch drawbars with the included mounting hardware, so there's no welding. A four-bolt pivot stops the jack bowing under load.
