Victron MEGA-fuse
- Regular price
- $44.41
- Sale price
- $44.41
- Regular price
-
$55.00
Victron list $55.00 · you save $10.59
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability
Free Shipping (ships from Upland in 3–7 days) & Free 30-Day Returns — prepaid return label, no restocking fee. Details
Specifications
- Brand: Victron Energy
- Part number: Varies by option
- Type: Ceramic MEGA fuse
- Ratings: 40A to 500A
- Voltage: 80V
- Size (H x W x D): 0.4 x 2.6 x 0.7 in
- Voltage drop: 80 to 135 mV by rating
- Sold as: Pack of 5

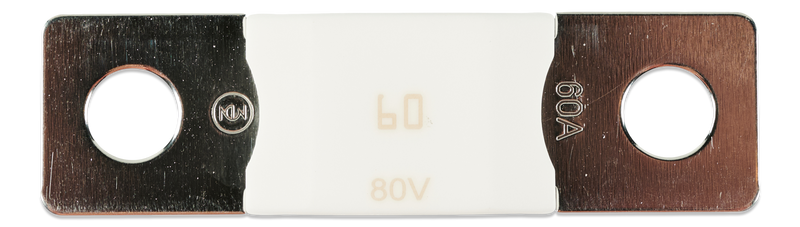

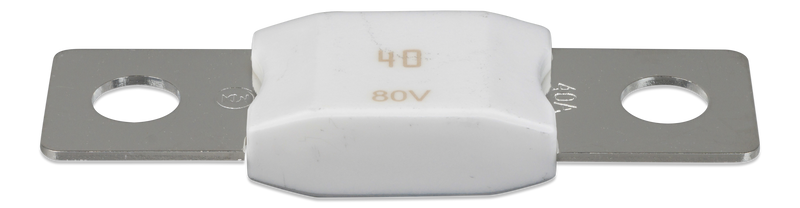

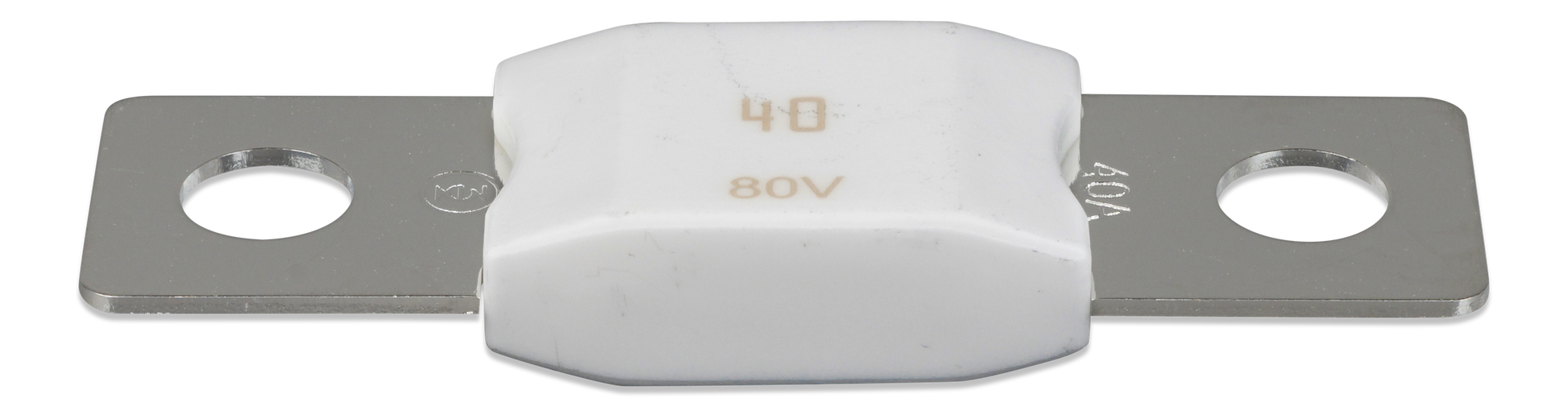

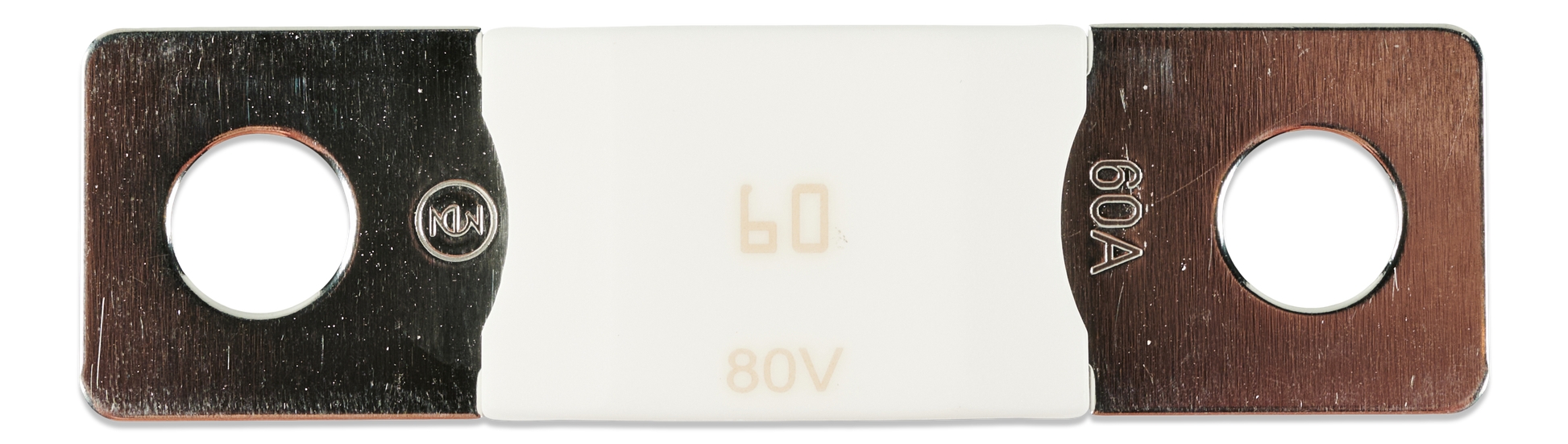

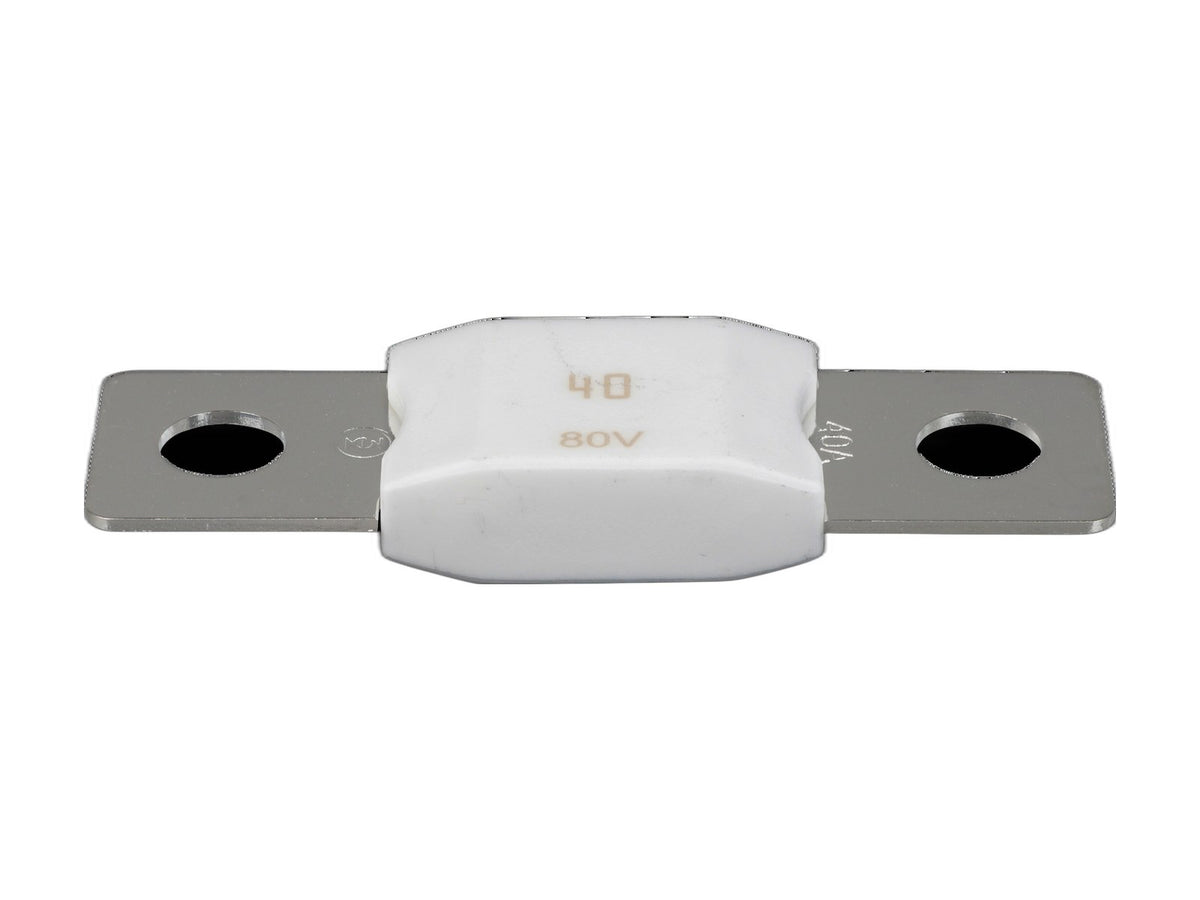

Ceramic MEGA-fuses
H x W x D: 0.4 x 2.6 x 0.7
MEGA fuse 40A/80V
Appr. voltage drop: 135 mV
Cold resistance: 1,459 mΩ
MEGA fuse 60A/80V
Appr. voltage drop: 135 mV
Cold resistance: 1,017 mΩ
MEGA fuse 80A/80V
Appr. voltage drop: 110 mV
Cold resistance: 0,716 mΩ
MEGA fuse 100A/80V
Appr. voltage drop: 110 mV
Cold resistance: 0,868 mΩ
MEGA fuse 125A/80V
Appr. voltage drop: 110 mV
Cold resistance: 0,653 mΩ
MEGA fuse 150A/80V
Appr. voltage drop: 110 mV
Cold resistance: 0,332 mΩ
MEGA fuse 175A/80V
Appr. voltage drop: 110 mV
Cold resistance: 0,282 mΩ
MEGA fuse 200A/80V
Appr. voltage drop: 110 mV
Cold resistance: 0,253 mΩ
MEGA fuse 225A/80V
Appr. voltage drop: 110 mV
Cold resistance: 0,235 mΩ
MEGA fuse 250A/80V
Appr. voltage drop: 110 mV
Cold resistance: 0,208 mΩ
MEGA fuse 300A/80V
Appr. voltage drop: 80 mV
Cold resistance: 0,171 mΩ
MEGA fuse 400A/80V
Appr. voltage drop: 80 mV
Cold resistance: 0,128 mΩ
MEGA fuse 500A/80V
Appr. voltage drop: 80 mV
Cold resistance: 0,106 mΩ
Victron part numbers on this page: MEGA-fuse 40A/80V (package of 5 pcs) CIP138040020 · MEGA-fuse 60A/80V (package of 5 pcs) CIP138060020 · MEGA-fuse 80A/80V (package of 5 pcs) CIP138080020 · MEGA-fuse 100A/80V (package of 5 pcs) CIP138100020 · MEGA-fuse 125A/80V (package of 5 pcs) CIP138125020 · MEGA-fuse 150A/80V (package of 5 pcs) CIP138150020 · MEGA-fuse 175A/80V (package of 5 pcs) CIP138175020 · MEGA-fuse 200A/80V (package of 5 pcs) CIP138200020 · MEGA-fuse 225A/80V (package of 5 pcs) CIP138225020 · MEGA-fuse 250A/80V (package of 5 pcs) CIP138250020 · MEGA-fuse 300A/80V (package of 5 pcs) CIP138300020 · MEGA-fuse 400A/80V (package of 5 pcs) CIP138400020 · MEGA-fuse 500A/80V (package of 5 pcs) CIP138500020. Searching for a specific part number? Use our Victron part number lookup, or ask us and we will confirm the right one for your system.
