Nomadic Cooling S1 Helix 12V DC Split Air Conditioner, Arctic White
- Regular price
- $2,186.32
- Sale price
- $2,186.32
- Regular price
-
$2,249.00
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability

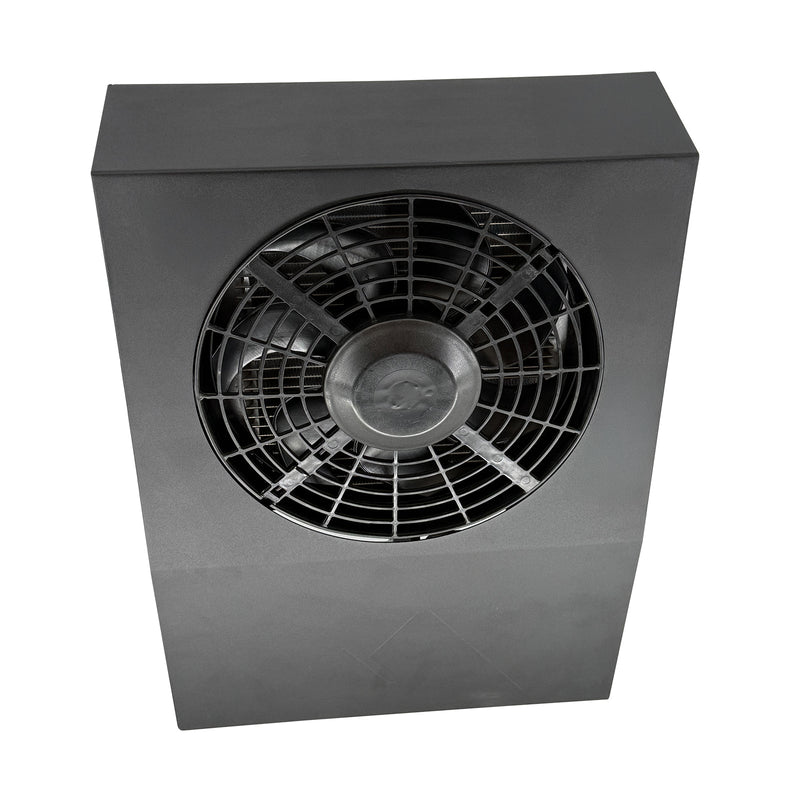

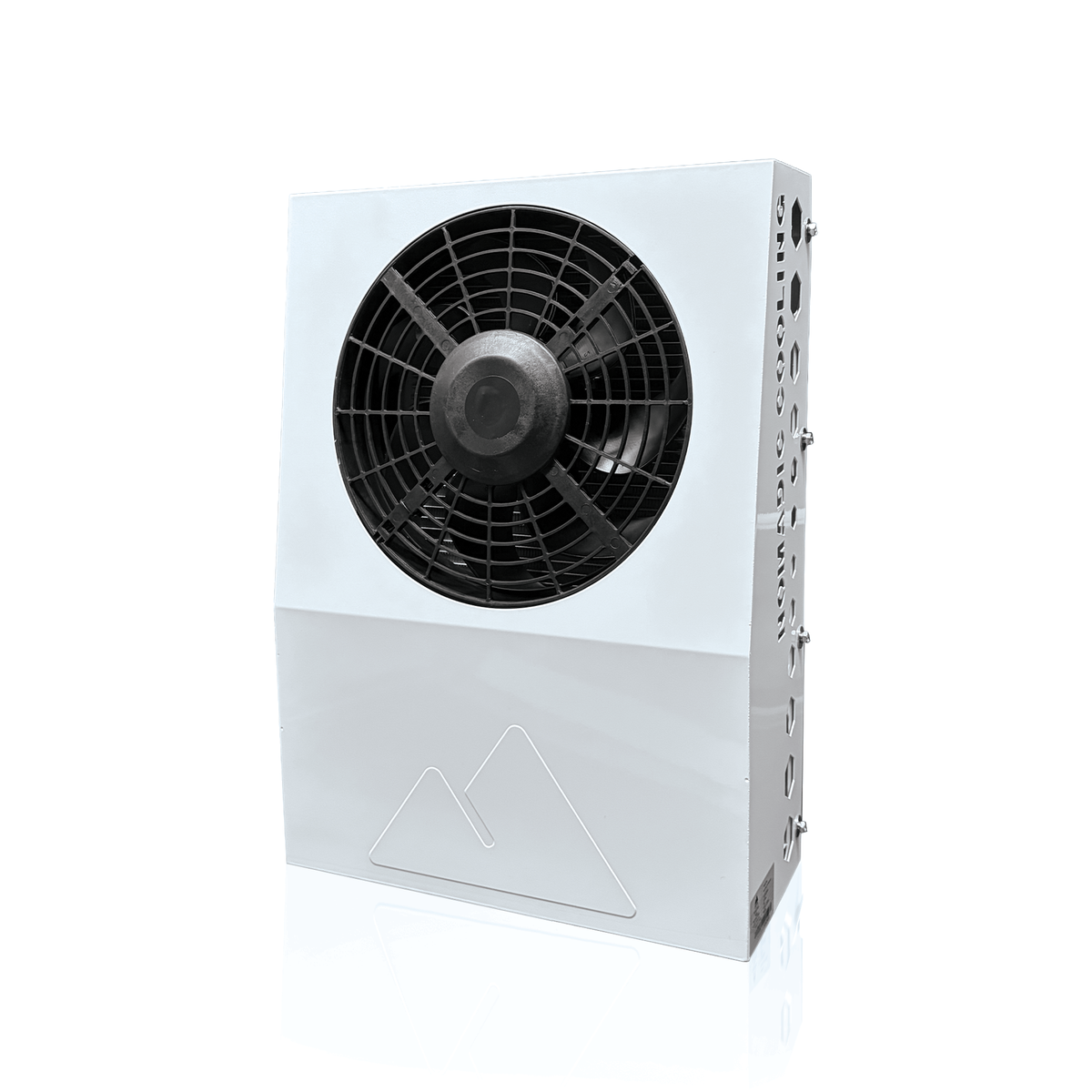

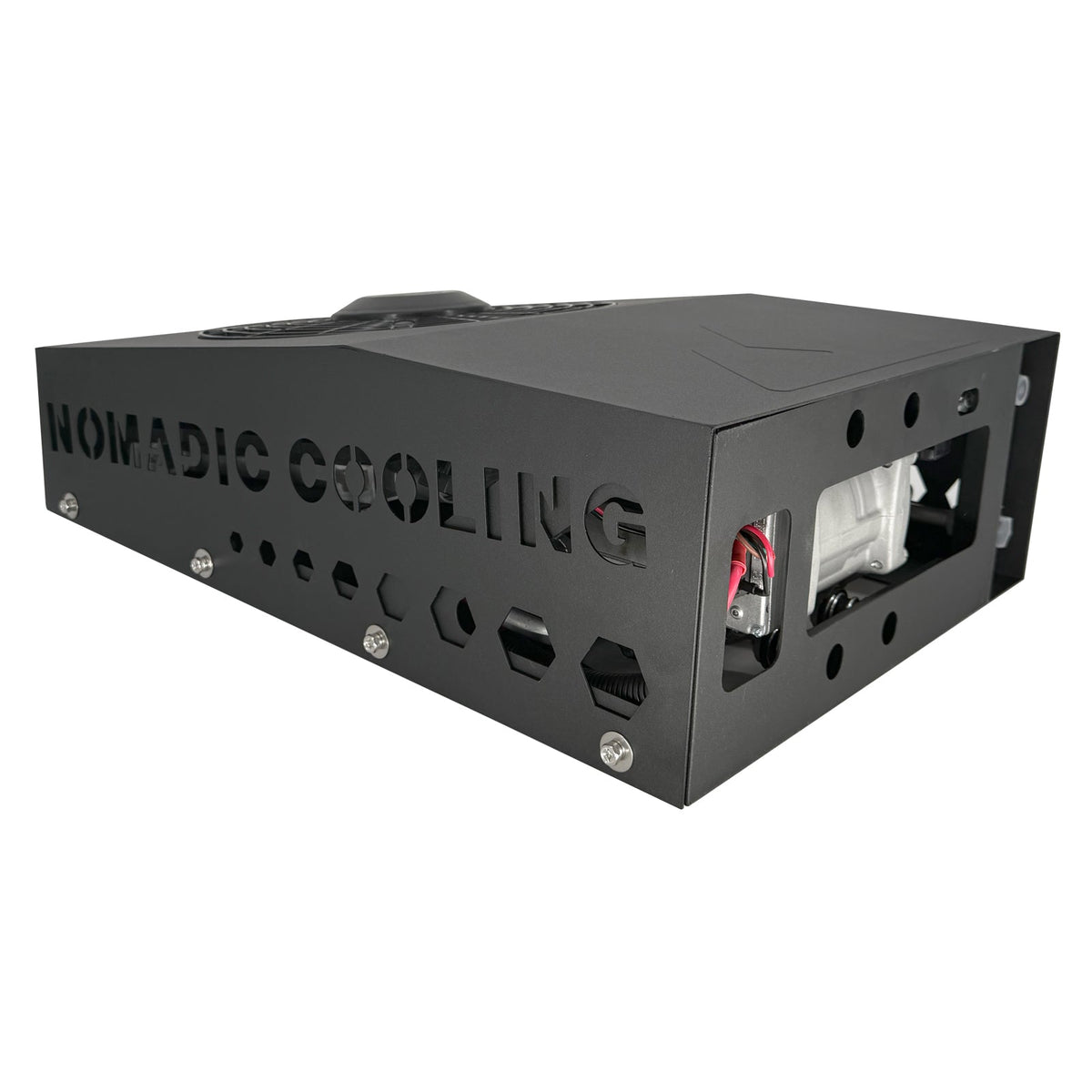

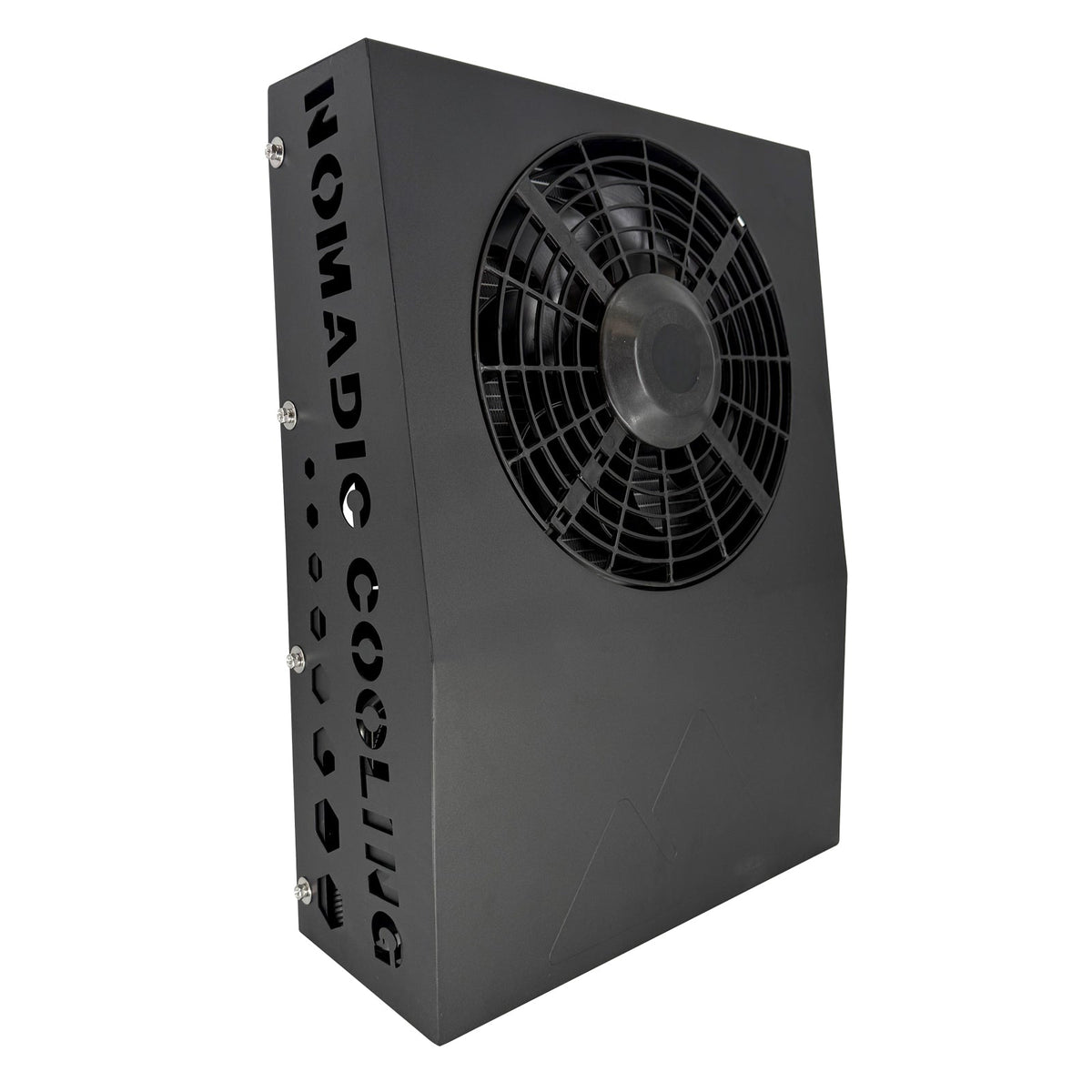

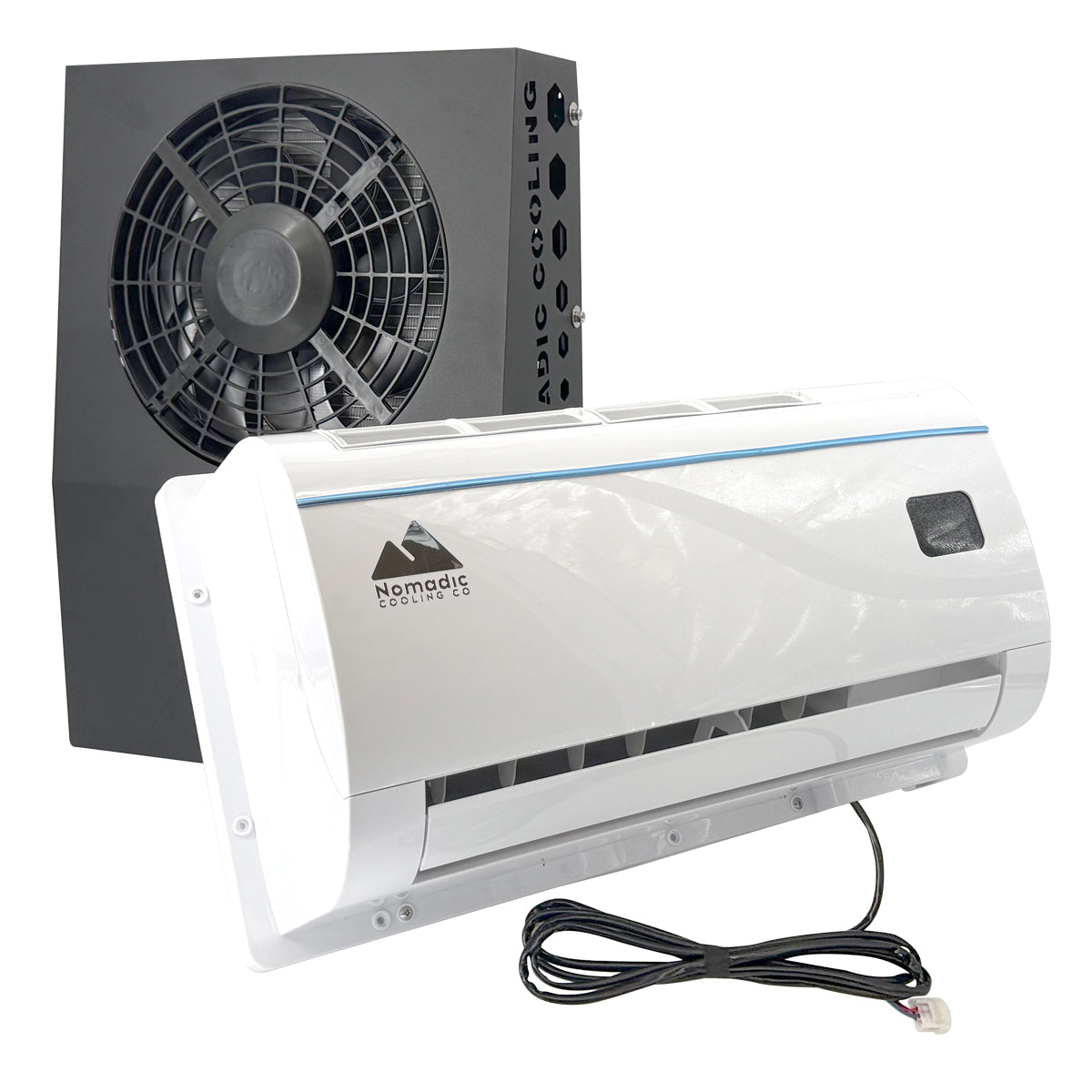

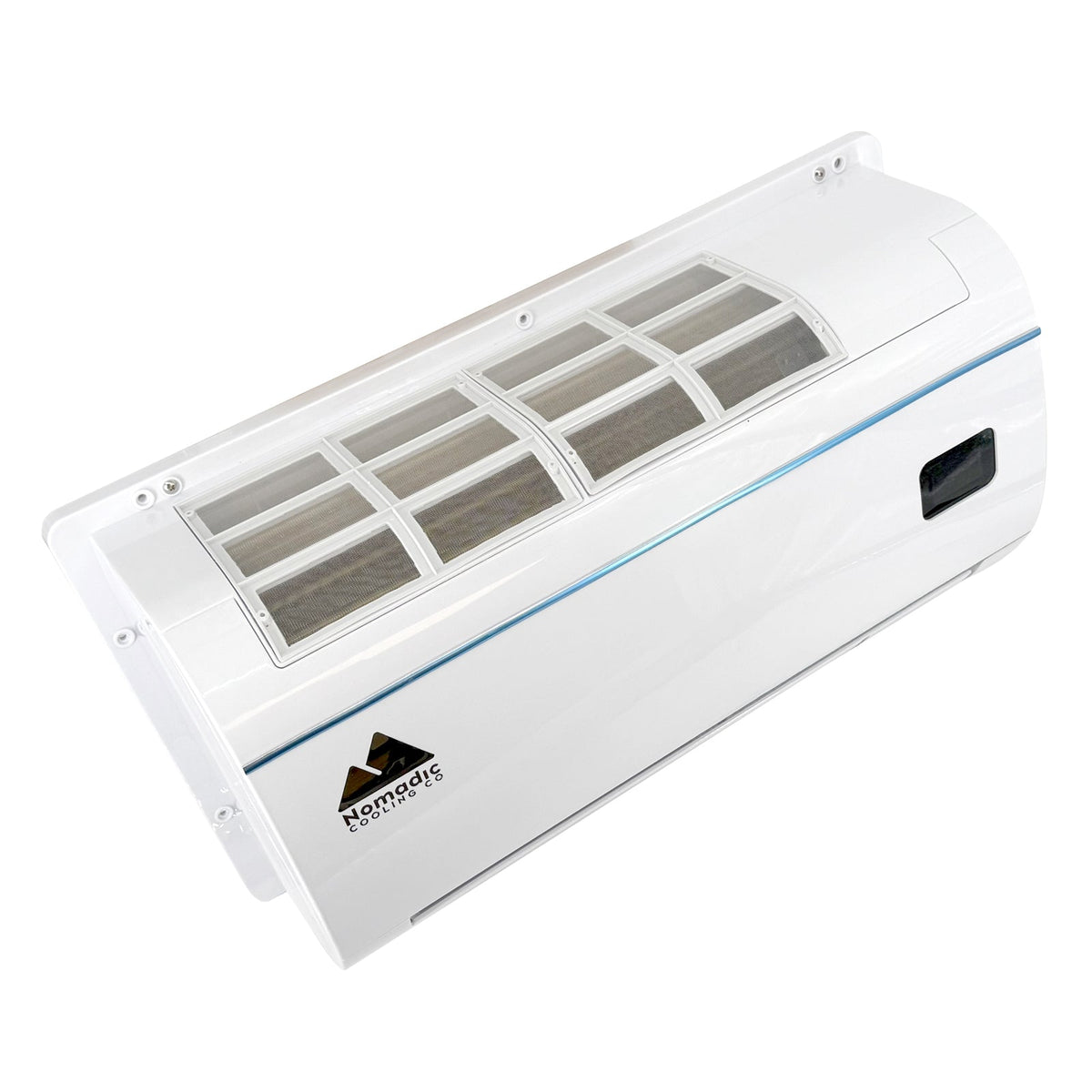

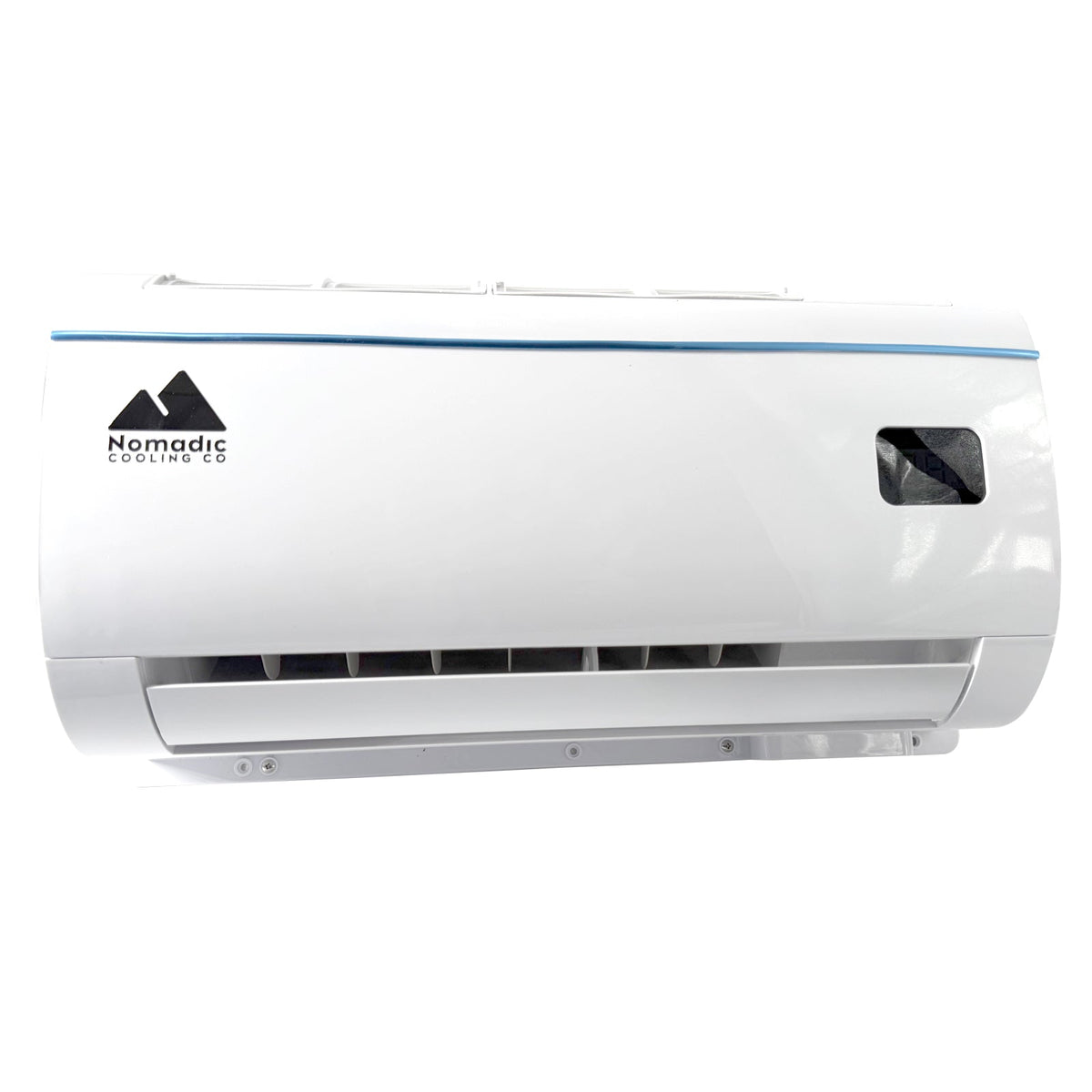

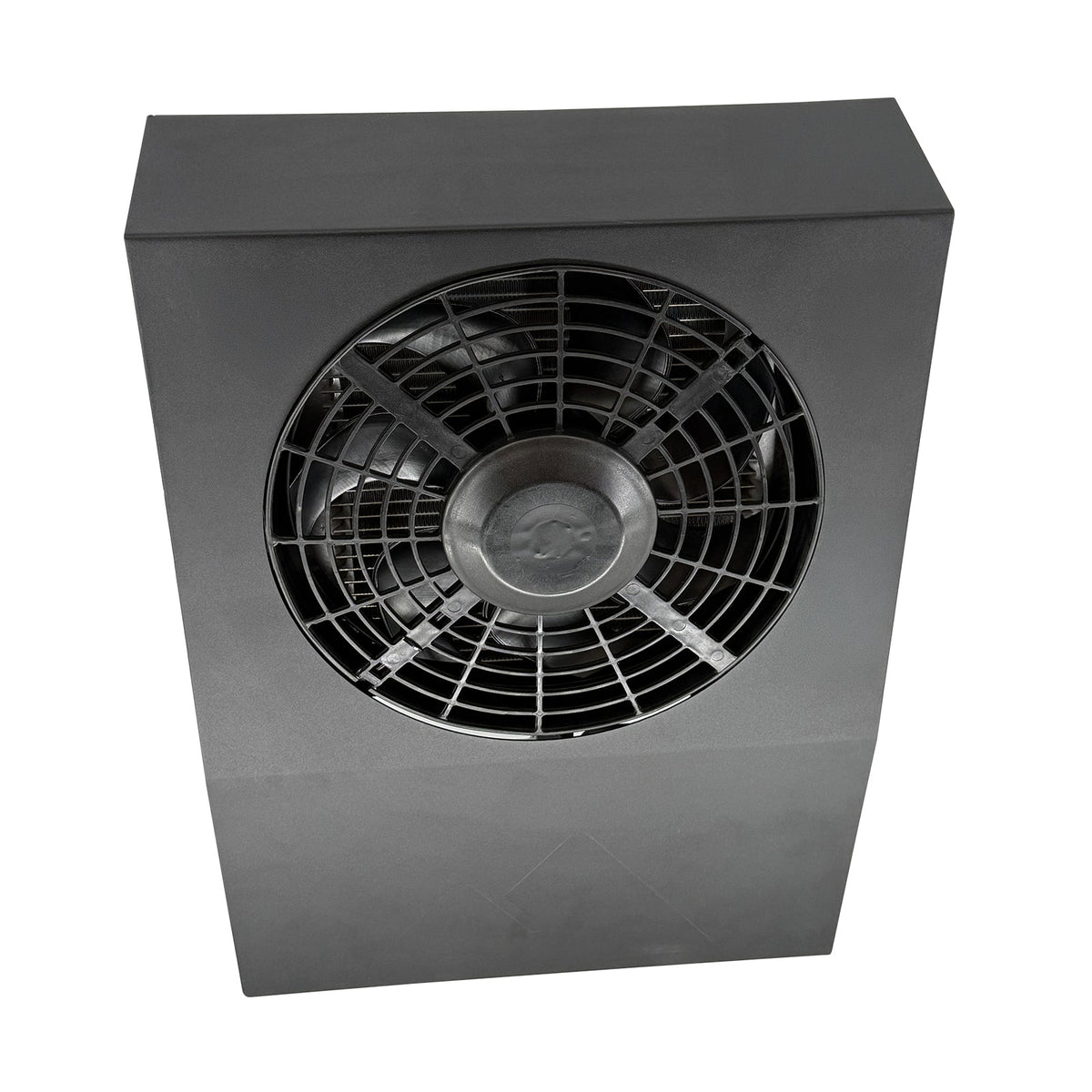

The S1 Helix is a 12V DC two-piece split air conditioner: the condenser mounts outside on a rear wall and a quiet evaporator module cools the cabin. Nomadic designed it for sleeper cabs as an electric alternative to an idling engine or APU, and the split layout also suits custom builds where a rooftop unit will not fit.
The PWM compressor is tuned for smooth ramps and a steady overnight hold, and the minimalist interior panel shows status and fault codes while the Helix app handles pre-cooling, schedules and scenes. Finish: Arctic White. Cooling figures below are Nomadic's planning averages pending certification.
Specifications
- Type: 12V DC two-piece split air conditioner (S1 Helix)
- Full AC (planning): ~10,216 BTU/hr, ~879W, ~61A
- ECO (planning): ~6,304 BTU/hr, ~486W, ~33.7A
- Compressor: PWM modulation
- Refrigerant: R1234yf or R134a
- Exterior condenser: 17.83 W x 23.68 H x 8.36 D in
- Interior evaporator: 24.26 W x 13.07 H x 7.52 D in
- Pass-through: 2.25 in hole, two-piece grommet included
- Line set: 10 ft liquid (8 mm) + 10 ft suction (12.7 mm), cut to fit, EZ Clip fittings and service valves
- Warranty: 1-year limited
Genuine Nomadic Cooling with Nomadic's 1-year limited warranty and US-based tech support. Ships from Upland, California to the lower 48 states. Refrigerant connections need a qualified technician (evacuation and charge). Questions about sizing the battery bank? Ask us before you order.
Shop the full Nomadic Cooling range at RV Parts Giant.
Will it fit my truck, van or RV?
- Mounting: condenser on a rear wall (4 in clear around vents, within 5 degrees of level), evaporator inside (6 in clear), joined through a 2.25 in hole. No roof cut.
- Battery: about 486 W on ECO and 879 W on Full AC (Nomadic planning figures, 12V, pending certification). A 400 Ah 12V LiFePO4 bank runs it about 9.5 h on ECO with no other loads.
- Power: a 100 A breaker or fuse on the positive line within 18 in of the battery, per Nomadic.
- Install: a licensed technician must evacuate and charge the cut-to-fit lines.
Guides: X2 vs X3 vs S1 · battery runtime tables · 12V vs 48V wiring.
