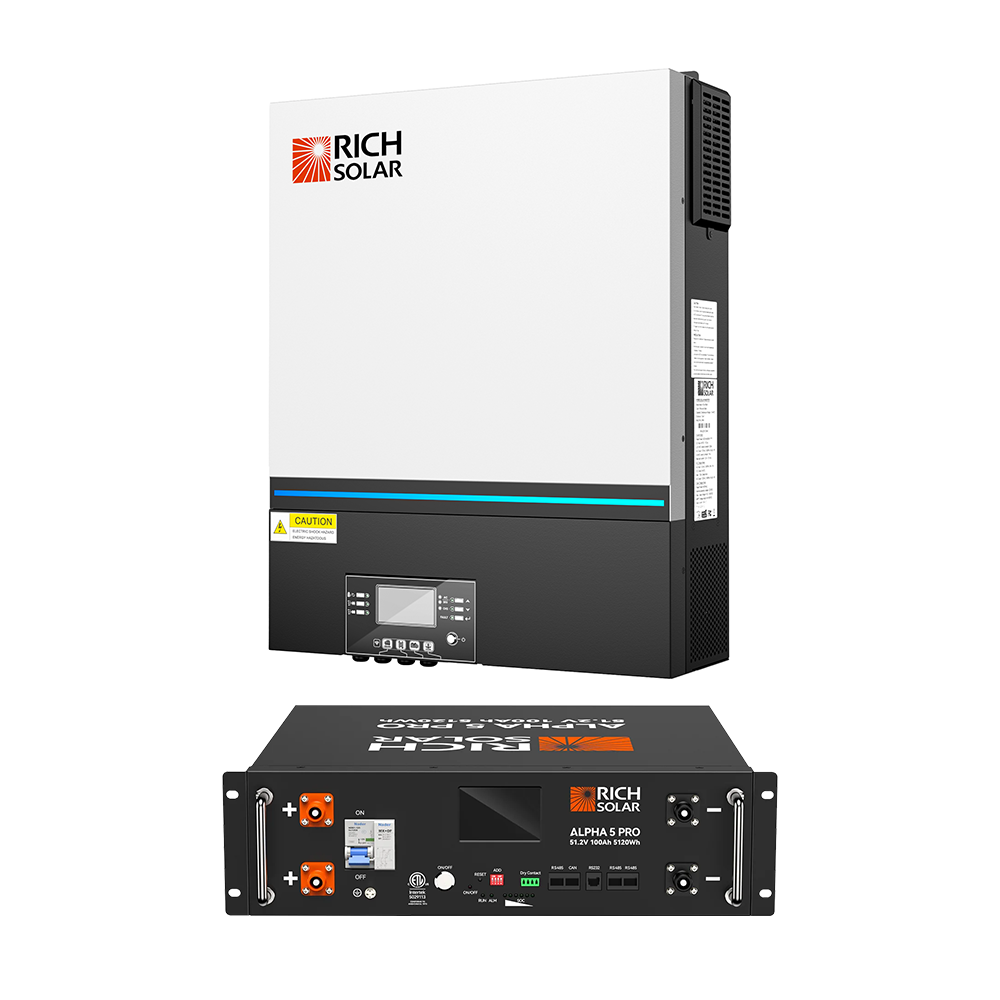

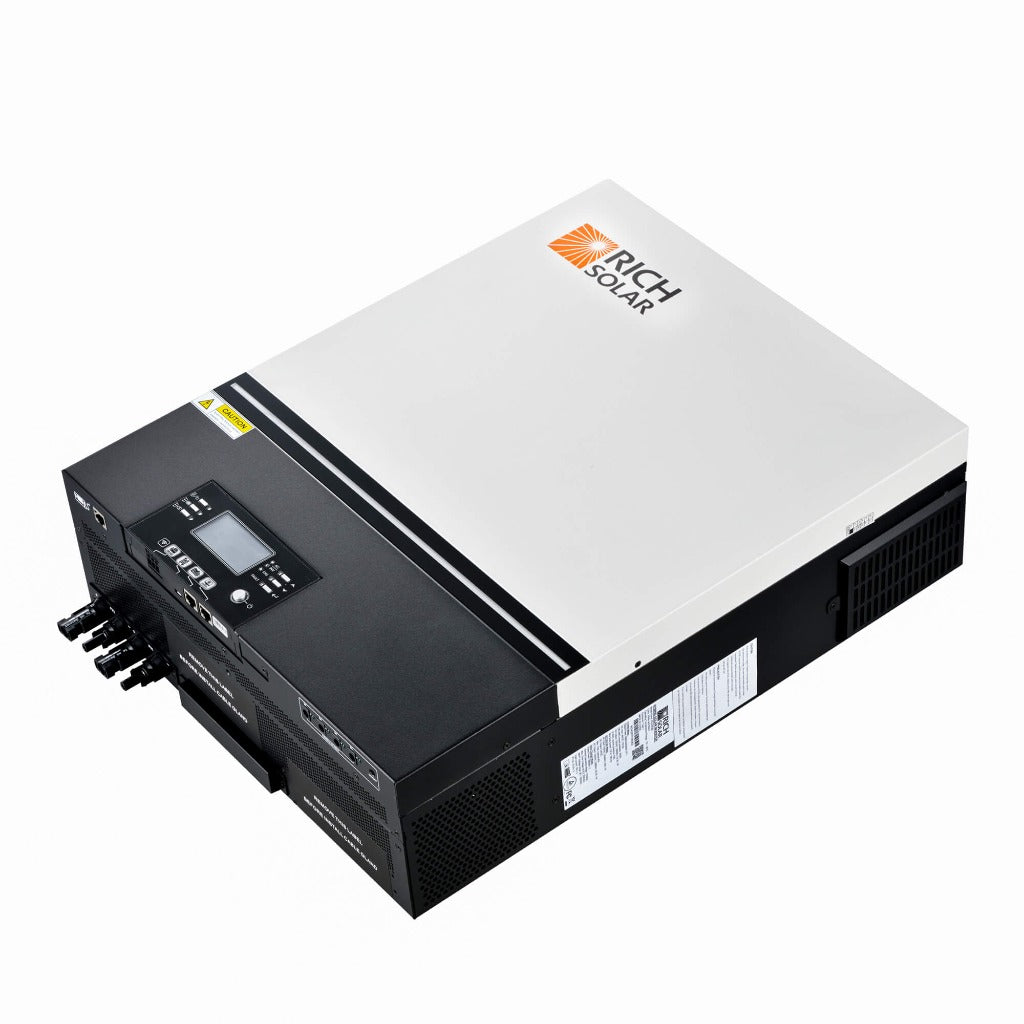

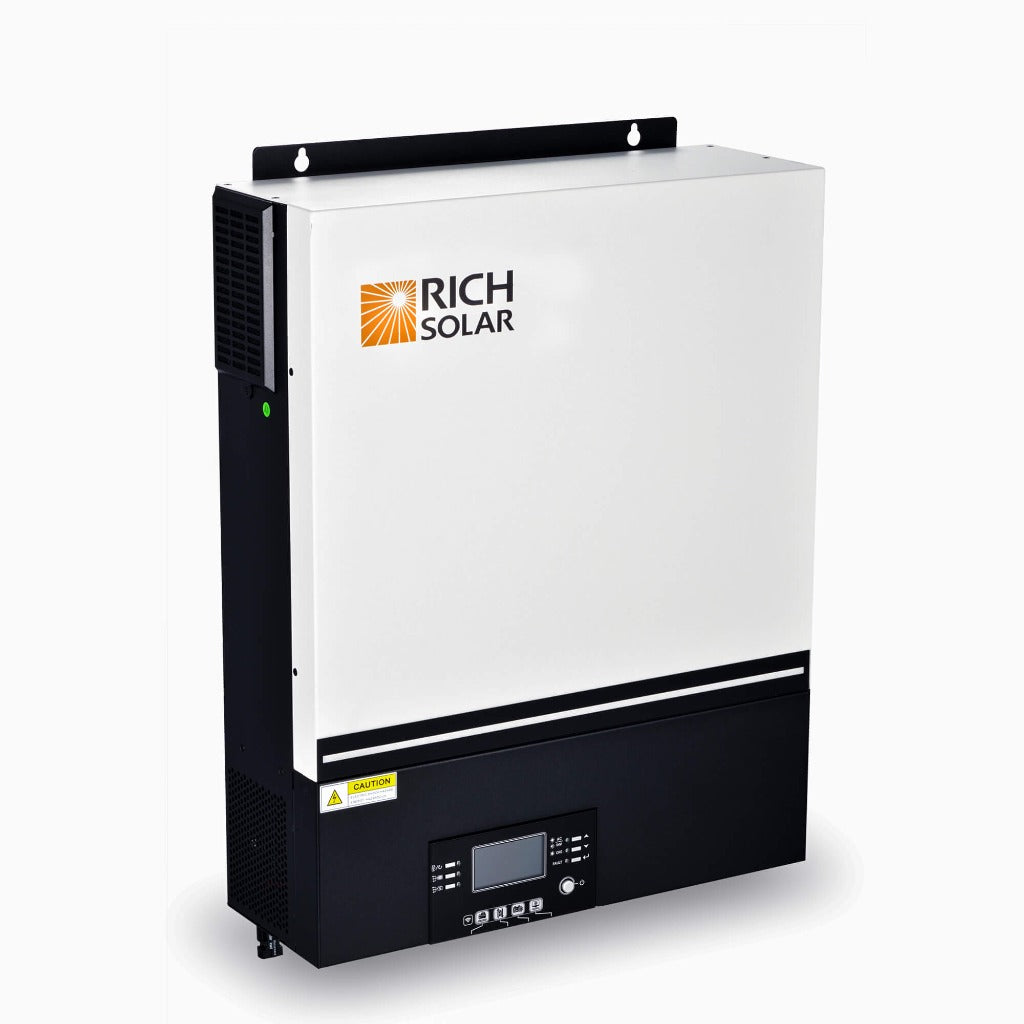

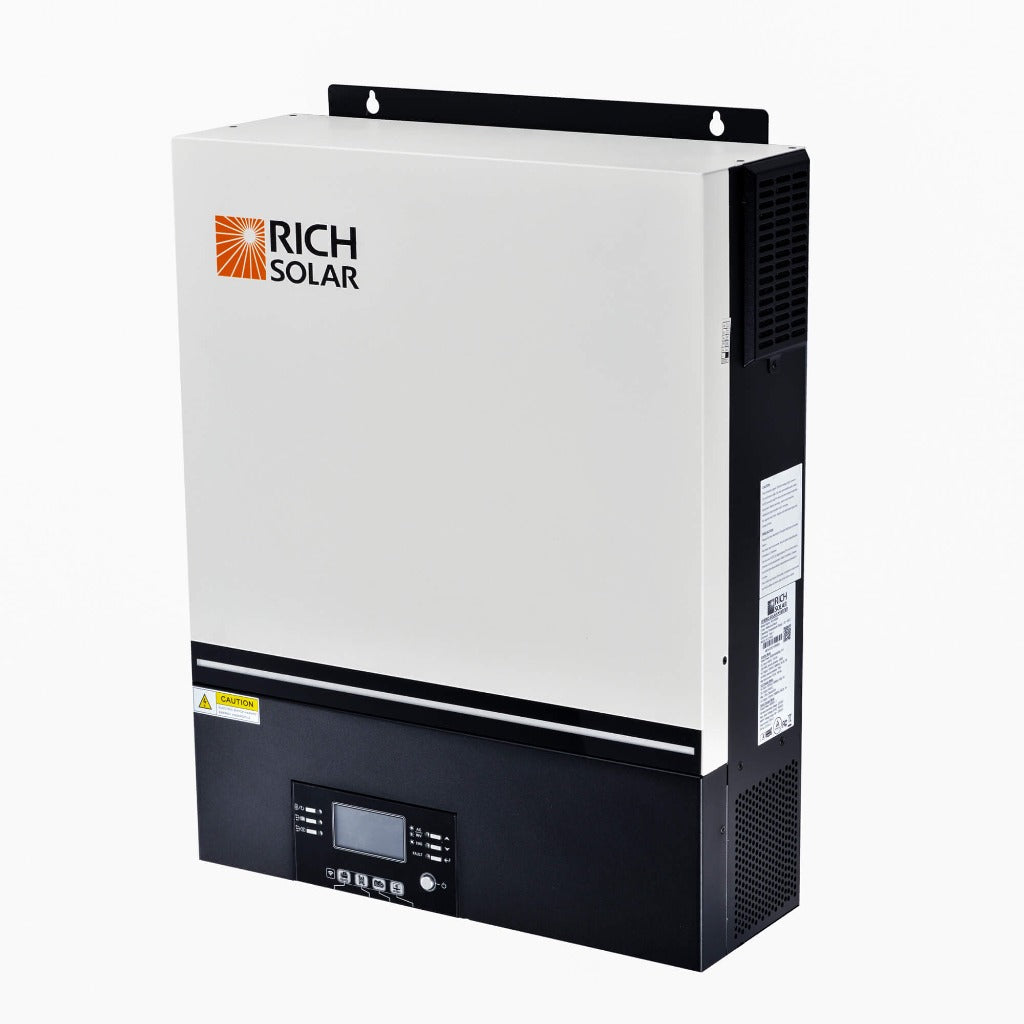

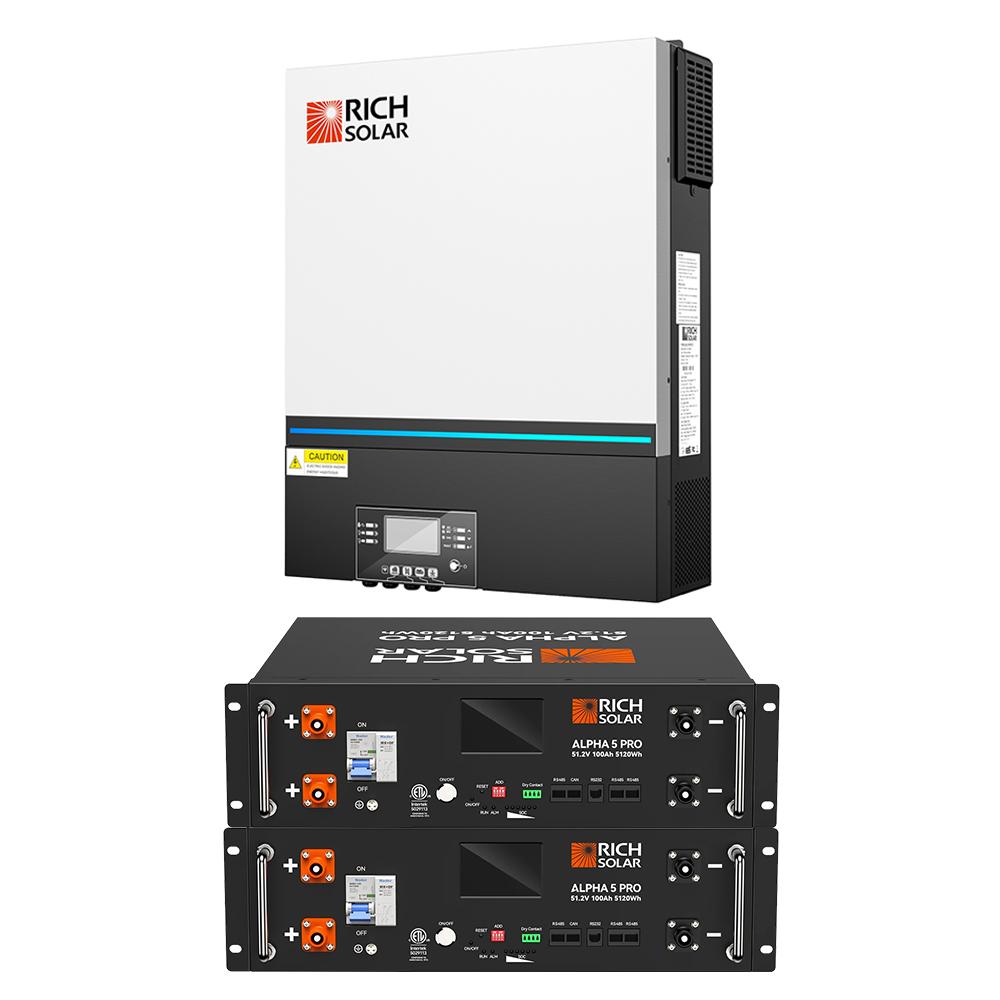

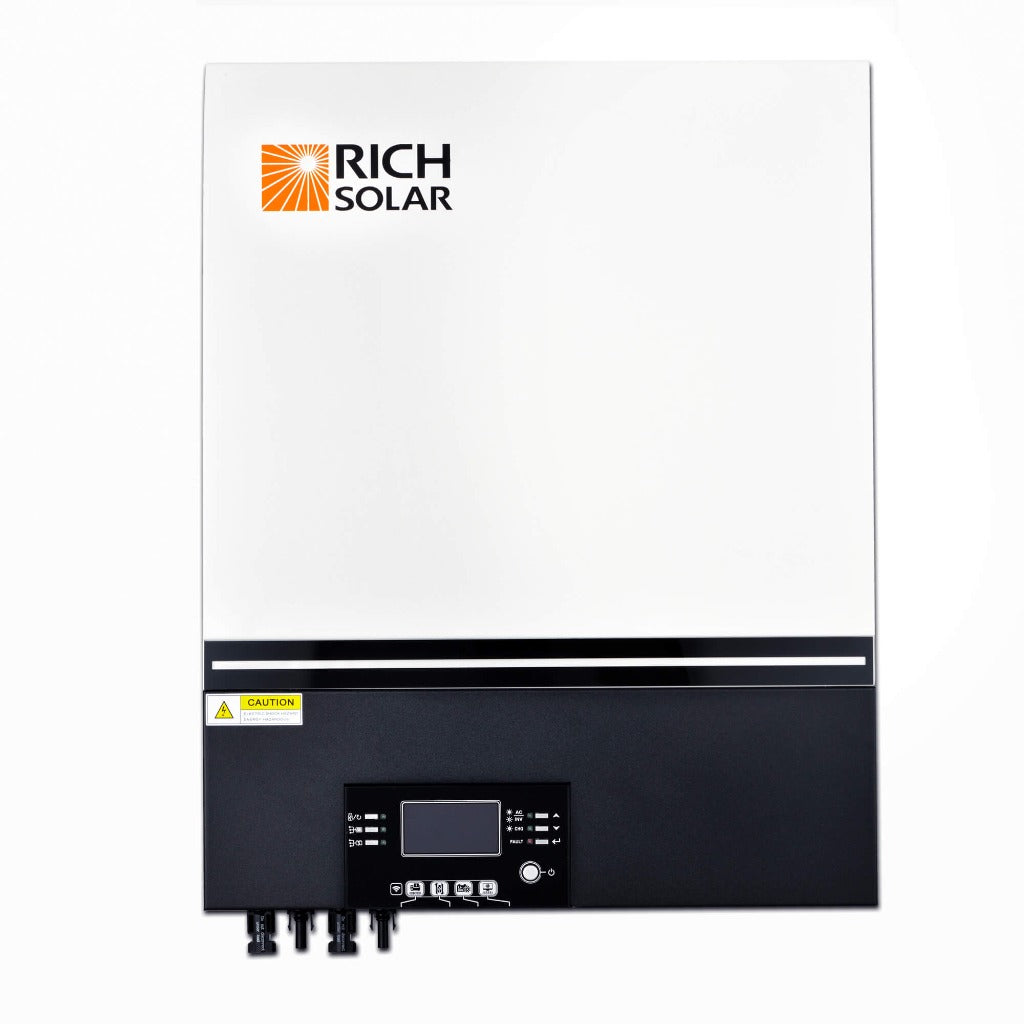

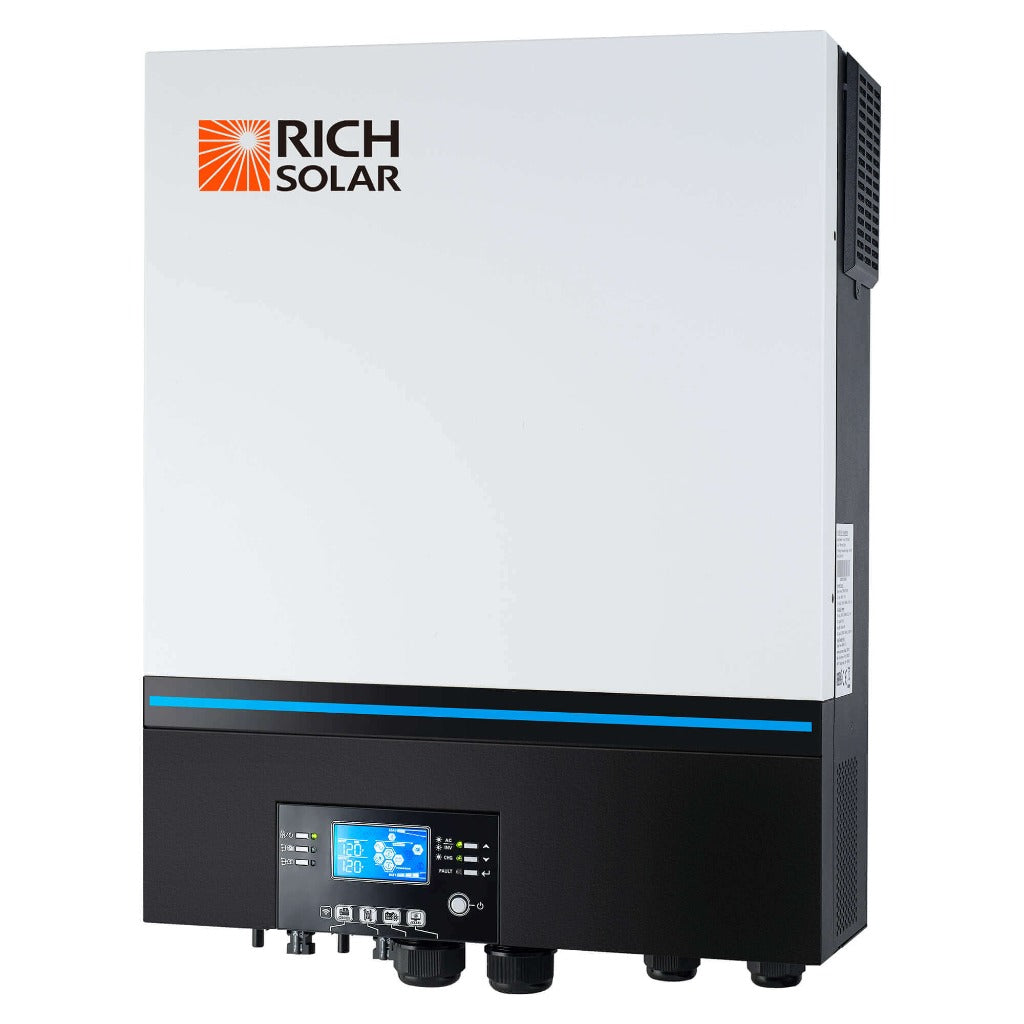

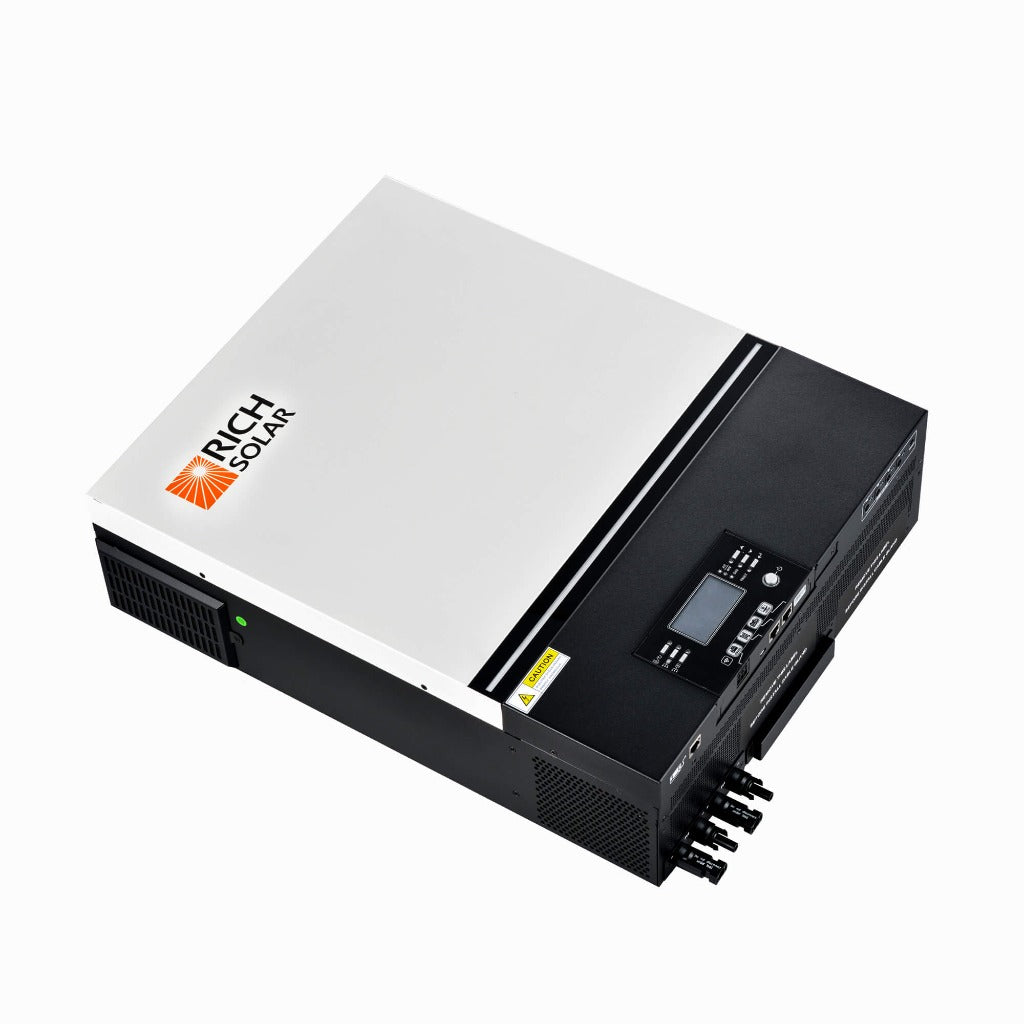

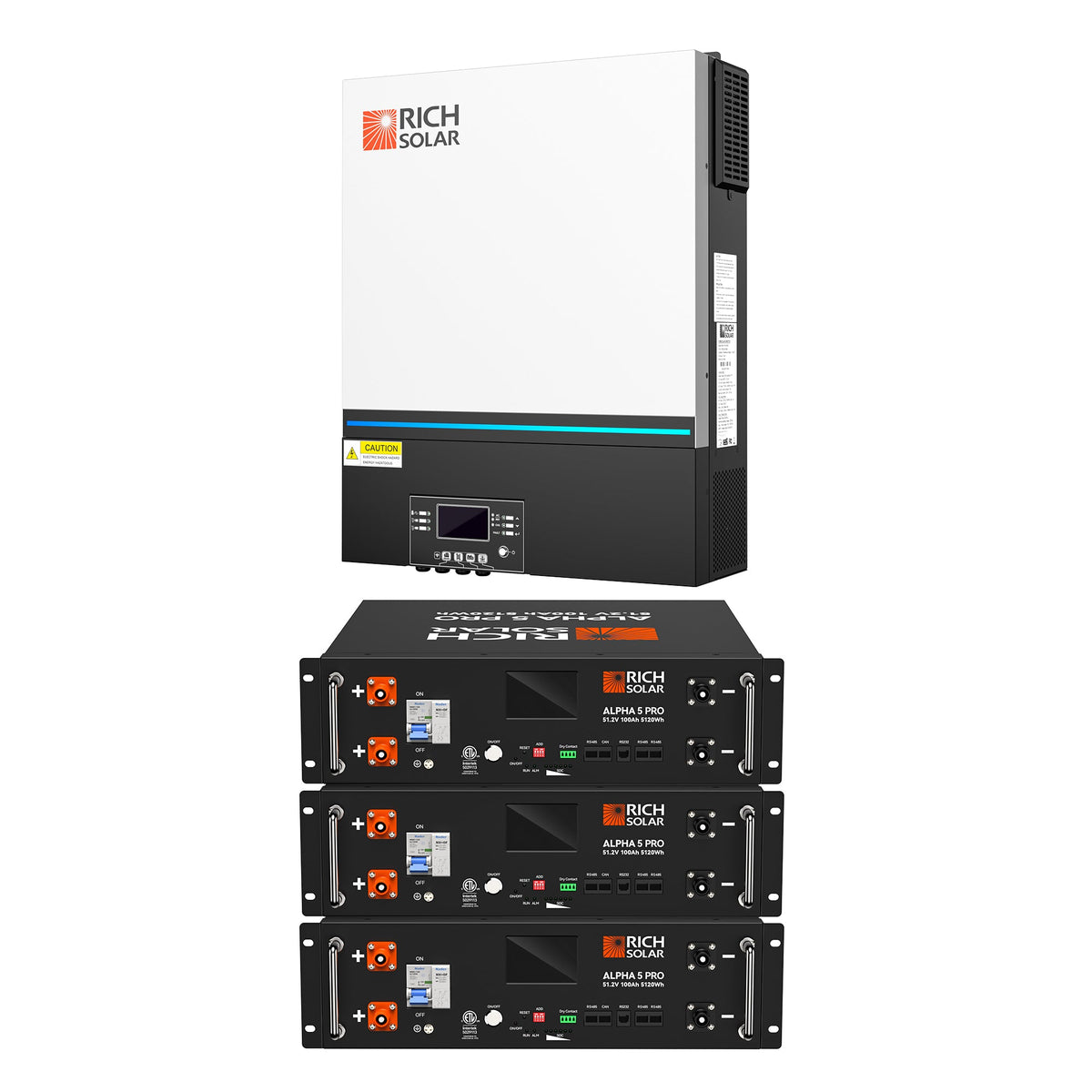

Rich Solar NOVA 6548 6500 Watt (6.5kW) 48 Volt Off-Grid Hybrid Solar Inverter

Features

High-Power Hybrid Energy Solution

• 6,500W pure sine wave inverter with 13,000W surge capacity delivers reliable power for homes, cabins, RVs, boats, and off-grid applications.

• Supports solar, battery, utility, and generator integration for flexible energy management.
• Designed for residential backup and off-grid energy systems.

Advanced Solar & Battery Management

• Built-in dual 120A MPPT charge controllers support up to 8,000W PV input for maximum solar harvesting.

• Configurable charging priority and charging current optimize battery performance for different applications.

• Compatible with AGM, Gel, Flooded, and lithium batteries for flexible energy storage.

Smart Control & Reliable Operation

• Ultra-fast transfer time (10ms UPS / 20ms Appliances) keeps critical loads running during power interruptions.

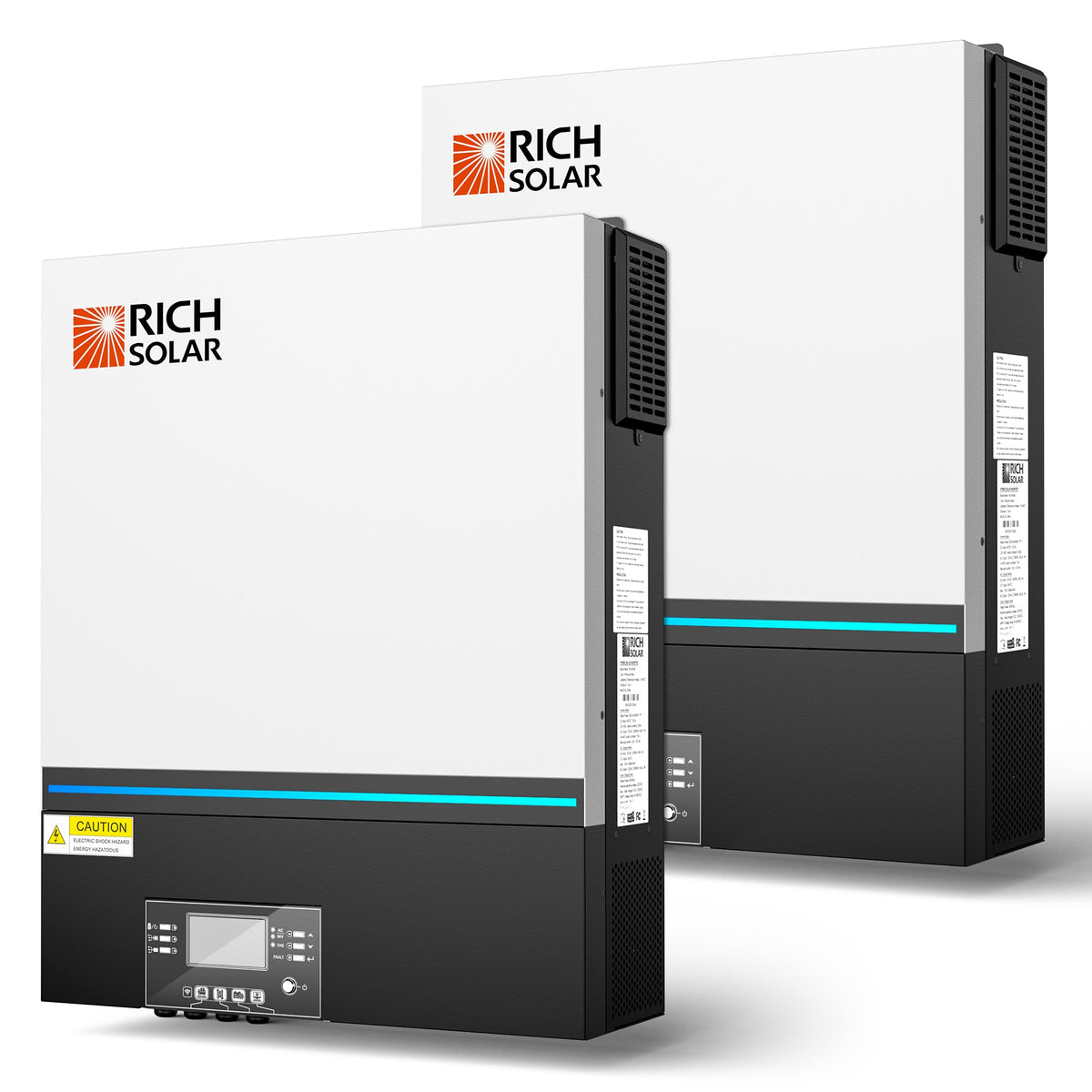

• Supports parallel operation with up to 6 units for expanded system capacity and split-phase applications.

• Detachable LCD control module supports BMS communication via RS485, CAN-BUS, and RS232.

Intelligent Protection & Reliable Design

• Built-in protection against overload, over-temperature, and short circuits for reliable operation.

• Automatic AC recovery restores operation after utility power returns and supports both utility and generator input.

• UL 1741 certified to meet North American safety standards.

Specifications

PV Input

• Maximum PV Input Power: 8000W

• Solar Charger Type: MPPT

• MPPT Operating Voltage Range: 90V DC–230V DC

• Maximum PV Open Circuit Voltage: 250V DC

• Maximum PV Input Current: 18A x 2

AC Input

• Input Voltage Waveform: Sinusoidal (Utility or Generator)

• Nominal Input Voltage: 120V AC

• Maximum AC Input Voltage: 150V AC

• Max AC Input Current: 60A

• Nominal Input Frequency: 50Hz / 60Hz (Auto Detection)

• Transfer Time: 10ms (UPS) / 20ms (Appliances)

• Efficiency (Line Mode): >95%

AC Output

• Rated Output Power: 6500VA / 6500W

• Surge Power: 13,000W (5 Seconds)

• Output Voltage: 120V AC ±5%

• Output Waveform: Pure Sine Wave

• Output Frequency: 50Hz / 60Hz

• Peak Efficiency: 91%

• Optional DC Output: 12V DC ±7%, 100W

Battery & Charger

• Nominal DC Input Voltage: 48V DC

• Maximum Charge Current: 120A

• Bulk Charging Voltage: 58.4V DC (Flooded) / 56.4V DC (AGM / Gel)

• Float Charging Voltage: 54V DC

• Overcharge Protection: 66V DC

General

• Parallel Capability: Up to 6 Units

• Communication Interface: USB, RS232, RS485, CAN-BUS, Wi-Fi, Dry Contact

• Operating Temperature: -14°F to 104°F

• Dimensions: 5.8 × 17.0 × 21.8 in

• Net Weight: 40.6 lb

Certifications & Compliance

• Safety Certification: UL 1741

Part numbers: RS-H6548 (UPC 650380717793)
