Can a LiTime 320Ah Mini run a 2000 watt inverter?
The BMS is the limit that matters
Every lithium battery's continuous output is capped by its BMS. LiTime states the 12V 320Ah Mini has a 200A BMS that supports 2,560W continuous output and up to 1,000A peak discharge for inverters and appliances. A 2,000W inverter at full load draws under that from a 12V bank, and the surge capacity covers the start-up of a microwave or a coffee maker.
Compare that with the 100Ah and 200Ah
| LiTime 12V battery | Continuous output (LiTime) | Fits a 2,000W inverter? |
|---|---|---|
| 100Ah Group 24 | 1,280W | No, stay near 1,000W |
| 200Ah Bluetooth | 1,280W max continuous | No, stay near 1,000W |
| 230Ah Bluetooth | 200A continuous | Yes |
| 320Ah Mini | 2,560W | Yes |
The 200Ah is the trap: more capacity than the 100Ah, but LiTime lists the same 1,280W continuous output.
How long it runs
The 320Ah Mini stores 4,096Wh. At a steady 2,000W, before inverter losses, that is about two hours; at a few hundred watts of real household use it is days. Most of the time the inverter runs well below its rating.
Wiring it
- Use cable sized for the inverter's full-load current over your run length, short and heavy.

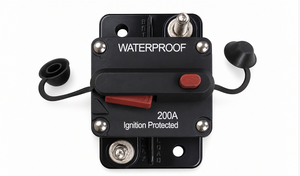

- Fit a main fuse or breaker close to the battery positive, rated for the cable.
- Fit a shunt in the negative so you see real state of charge with all loads counted.
Cold weather
The standard 320Ah Mini has a low-temperature charge cut-off. If it lives in an unheated compartment and you camp below freezing, the LiHeat 320Ah Mini is the self-heating version of the same case.
