200A DC Circuit Breaker for RVs: Installation and Safety Guide

High-current RV and marine electrical systems need more than a battery and a large cable. A short circuit in an unfused battery cable can release enormous fault current, creating dangerous heat and potentially damaging equipment, wiring, or the battery itself.

A properly selected circuit breaker provides an important layer of protection. It can interrupt excessive current before the cable becomes dangerously hot, while also giving the owner a convenient way to restore the circuit after the problem has been corrected.

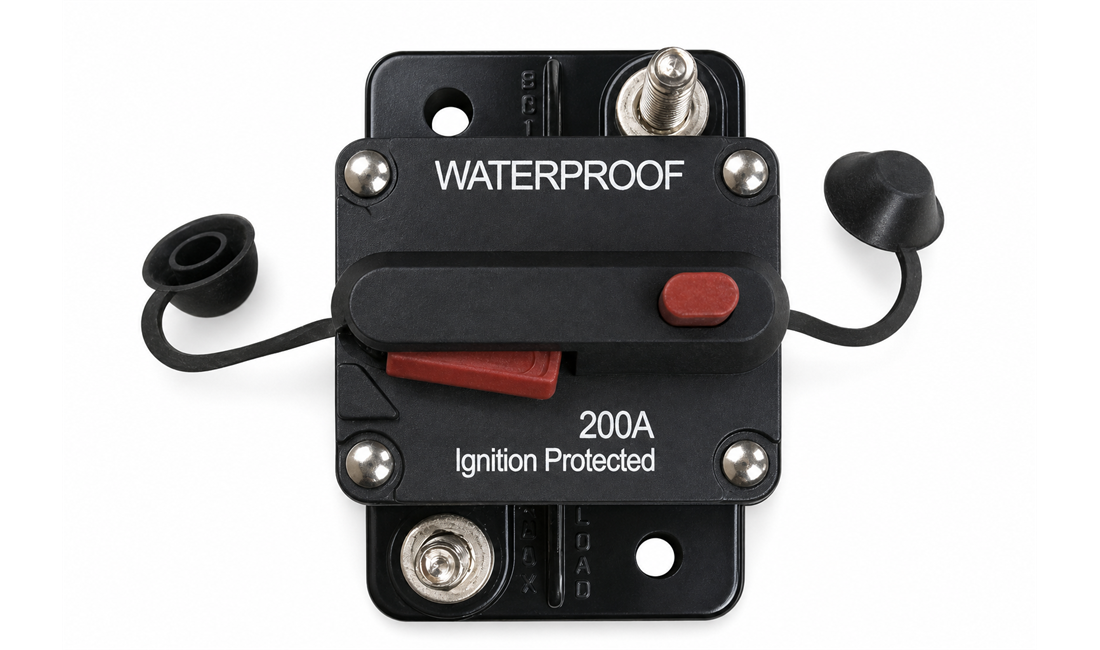

The 200A 42V DC Waterproof Manual Reset Circuit Breaker is designed for high-current DC applications in RV, marine, automotive, and similar mobile power systems. Its 200A rating and 42V DC maximum voltage make it a potential option for battery, inverter, charging, and auxiliary power circuits that remain within the breaker’s specifications.

The correct installation depends on more than the number “200A.” The battery voltage, continuous current, cable size, fault current, temperature, mounting location, and equipment requirements must all be considered.

Product Specifications at a Glance

The product listing identifies this as a high-current manual reset breaker for RV and marine use.

The exact trip characteristics, interrupt capacity, terminal size, mounting dimensions, and temperature derating should be confirmed in the product documentation before installation.

What Does a DC Circuit Breaker Do?

A DC circuit breaker is designed to open the circuit when current exceeds a safe level. This helps protect the cable and connected equipment from overloads and short circuits.

In a typical battery circuit, the breaker may be installed between the battery positive terminal and a high-current load such as:

• An inverter

• A DC distribution bus

• A battery charger

• A DC-DC charger

• A winch

• A hydraulic pump

• A refrigeration system

• A high-current auxiliary panel

The breaker does not create a safer circuit by itself. It must be correctly matched to the cable and equipment. If the cable is too small, installing a large breaker will not make that cable safe.

The breaker should be selected so that it protects the wiring while allowing the expected normal load to operate without nuisance trips.

Why Choose a Manual Reset Breaker?

A manual reset breaker does not automatically reconnect the circuit after it trips. The user must identify and correct the problem before manually resetting it.

This is useful because it can:

• Prevent repeated automatic cycling

• Make a fault easier to notice

• Provide a visible open-circuit condition

• Allow inspection before restoring power

• Reduce the chance of repeatedly energizing a damaged circuit

• Avoid replacing a fuse after every overload event

Automatic reset breakers may reconnect while a fault is still present. That behavior can be unsuitable for some high-current RV or marine circuits. A manual reset design encourages the operator to investigate first.

However, a manual reset breaker should not be treated as a substitute for a battery disconnect switch. It protects a circuit from excessive current, while a disconnect switch is intended for deliberate system isolation.

Circuit Breaker vs Fuse

Both fuses and circuit breakers can protect battery wiring, but they behave differently.

A breaker is convenient when the circuit is accessible and may require occasional service. A fuse may be preferred where the manufacturer specifies a particular high-interrupt design or where space is limited.

Some installations use both a main fuse and a breaker for different protection and isolation functions. Follow the equipment manufacturer’s requirements rather than assuming one device can replace every other protection component.

How to Choose the Correct 200A Breaker

A 200A breaker may be appropriate only when the expected load and cable system support that rating.

Before installation, check:

• Nominal system voltage

• Maximum continuous load

• Short-duration startup current

• Cable gauge

• Cable length

• Battery discharge capability

• Required interrupt capacity

• Mounting temperature

• Terminal size

• Equipment manufacturer requirements

For example, a 2,000W load on a 12V system would require approximately:

2,000W ÷ 12V = 167A

This is an ideal calculation before accounting for inverter losses, battery voltage drop, and startup demand. A 200A breaker may therefore be close to its operating range in a high-power 12V inverter application.

The actual breaker size should be based on the complete system design. Do not increase the breaker rating simply to stop nuisance trips. Frequent trips may indicate undersized cables, excessive load, loose connections, poor ventilation, low battery voltage, or a failing device.

For additional guidance, review the Victron cable, fuse, and busbar sizing chart.

Where Should the Breaker Be Installed?

In most battery-powered applications, the main protection device should be installed close to the battery’s positive terminal. This helps protect the entire length of cable between the battery and the load.

A typical high-current layout may look like this:

Battery positive → DC breaker → positive busbar or equipment → load

The exact arrangement depends on the electrical system. Some systems may require additional protection near separate batteries, chargers, inverters, or distribution points.

Choose a location that is:

• Accessible for manual reset

• Protected from direct water impact

• Away from excessive heat

• Close enough to the battery to protect the cable

• Strong enough to support the breaker

• Clear of moving parts

• Suitable for the cable bend radius

• Easy to inspect during service

Do not bury the breaker behind permanent panels or inside a location where the reset button cannot be reached.

Waterproof Does Not Mean Installation-Proof

The product is described as waterproof, which can be helpful in marine, exterior, and mobile applications. However, the breaker’s real-world protection depends on the complete installation.

Water can still enter through:

• Unsealed cable connections

• Incorrectly installed terminals

• Damaged insulation

• Loose mounting

• Cable openings

• Condensation

• Corroded hardware

• Direct pressure washing

Use suitable cable protection, terminal covers, heat-shrink products, and mounting practices. Avoid placing the breaker where it will sit in standing water or receive continuous high-pressure spray.

A waterproof enclosure also does not protect against incorrect polarity, excessive current, poor crimping, or an unsuitable voltage.

Installation Preparation

Before beginning work, make a simple diagram of the existing circuit. Mark the battery, breaker, fuse, busbar, inverter, charger, load, and negative return.

Prepare:

• Correctly sized battery cable

• Compatible terminal lugs

• Appropriate overcurrent protection

• Terminal covers

• Heat-shrink tubing

• Cable supports

• A torque wrench or suitable hand tools

• A multimeter

• Mounting hardware

• Personal protective equipment

Disconnect all charging sources before working. This may include:

• Shore power

• Solar charging

• Alternator charging

• A generator

• A battery charger

• A second battery bank

Do not assume that turning off one switch has disconnected every possible energy source.

Basic Wiring Steps

The exact wiring must follow the product instructions and the electrical system design. A general process includes:

1. Turn off all loads and charging sources.

2. Disconnect the battery’s positive connection.

3. Mount the breaker close to the battery or designated protection point.

4. Connect the battery-side cable to the correct breaker terminal.

5. Connect the load-side cable to the other terminal.

6. Tighten terminals to the manufacturer’s specified torque.

7. Install terminal covers and protect exposed cable.

8. Secure the wiring against movement and abrasion.

9. Recheck polarity and cable routing.

10. Restore power and test the circuit under a controlled load.

Some breakers have marked line and load terminals. Follow those markings if present. Do not rely on the physical appearance of the terminals.

High-current cables should not be twisted, stacked improperly, or forced into a tight bend. Loose connections can generate heat even when the current is below the breaker rating.

Manual Reset Operating Procedure

If the breaker trips:

1. Turn off the connected load.

2. Inspect the breaker and cables for heat or damage.

3. Check for a short circuit or damaged wire.

4. Confirm that the load is not exceeding the circuit rating.

5. Check battery voltage under load.

6. Inspect terminals and grounds.

7. Allow overheated components to cool.

8. Reset the breaker only after the fault has been corrected.

9. Reconnect the load gradually.

10. Monitor the circuit for additional heating or another trip.

Never hold or bypass the breaker to force a damaged circuit to operate. If it trips repeatedly, stop using the equipment and have the circuit inspected.

Battery Chemistry and High-Current Systems

Battery chemistry affects the way a circuit behaves. Lithium batteries, AGM batteries, flooded lead-acid batteries, and other battery types may have different discharge capabilities, charging requirements, and fault characteristics.

A lithium battery bank can often deliver very high current, while its BMS may disconnect suddenly when it detects an unsafe condition. A circuit breaker remains important because it protects the wiring independently of the battery management system.

A breaker does not replace:

• A lithium battery BMS

• A battery monitor

• A properly sized fuse

• A battery disconnect

• A charging controller

• Correct cable sizing

For more information about how battery protection components fit together, see the RV battery isolator guide.

Maintenance Checklist

Inspect the breaker regularly, especially after off-road travel, water exposure, or high-load operation.

Check:

• Mounting screws

• Breaker housing

• Reset mechanism

• Terminal tightness

• Cable insulation

• Heat discoloration

• Corrosion

• Moisture

• Cable support

• Terminal covers

• Unusual odor

• Repeated nuisance trips

Test the breaker only according to the manufacturer’s instructions. Do not repeatedly short the circuit to see whether it trips. A controlled professional test is safer and more reliable.

Common Mistakes to Avoid

Installing the breaker too far from the battery

An unprotected cable between the battery and breaker can still be exposed to a short-circuit hazard.

Selecting the breaker by load name alone

A “200A inverter” or “200A battery” does not provide enough information. Check actual continuous current, surge demand, cable size, and system voltage.

Using it on an AC circuit

This is a DC circuit breaker. Do not use it for 120V AC shore-power wiring unless the product documentation specifically supports that application.

Ignoring voltage drop

Long cable runs and poor terminals can cause voltage drop and heat. The RV 12V voltage drop guide explains how cable length, connections, and current affect mobile DC systems.

Treating waterproof as submersible

Protect the breaker from standing water, direct pressure washing, and unsealed cable entries.

Repeatedly resetting a tripped breaker

A trip is a warning. Find and correct the fault before restoring power.

Frequently Asked Questions

What is the rating of this circuit breaker?

The product is listed as a 200A, 42V DC manual reset circuit breaker.

Can it be used in a 12V RV?

It may be suitable for a compatible 12V RV circuit when the cable, load, battery, and installation are correctly matched to the breaker.

Can it be used in a 24V system?

A 24V system is below the listed 42V DC maximum, but the complete application must still meet the product’s current and installation requirements.

Does the breaker protect the battery?

It primarily protects the connected cable and circuit from excessive current. It does not replace a battery management system or protect individual battery cells.

Is a 200A breaker suitable for a 200A inverter?

Not automatically. Inverter input current, startup demand, battery voltage, cable length, and manufacturer requirements must all be checked.

Is this breaker a battery disconnect switch?

It can interrupt the protected circuit and may provide a manual reset function, but it should not automatically be treated as a full-system battery disconnect.

Can it be installed outdoors?

The product is described as waterproof and may be suitable for protected outdoor or marine locations. Install it according to the documentation and protect all cable connections from water and corrosion.

Why does the breaker keep tripping?

Possible causes include excessive load, startup surge, undersized cable, low battery voltage, loose terminals, a short circuit, poor ventilation, or a defective connected device.

Final Takeaway

The 200A 42V DC waterproof manual reset circuit breaker is designed for high-current battery and auxiliary power circuits in RV, marine, automotive, and off-grid applications. Its manual reset function allows the operator to investigate a fault before restoring power, while the high current rating supports properly designed DC systems.

A safe installation requires more than matching the breaker to the load. Install it close to the battery when appropriate, protect the entire cable run, use correctly sized conductors and terminals, verify system voltage, and follow the manufacturer’s specifications for current and interrupt capacity.

Keep the breaker accessible, protect its connections from moisture, and never repeatedly reset it without finding the cause of the trip. Used as part of a complete electrical protection plan, a correctly selected DC circuit breaker can improve the safety and serviceability of an RV or marine battery system.
