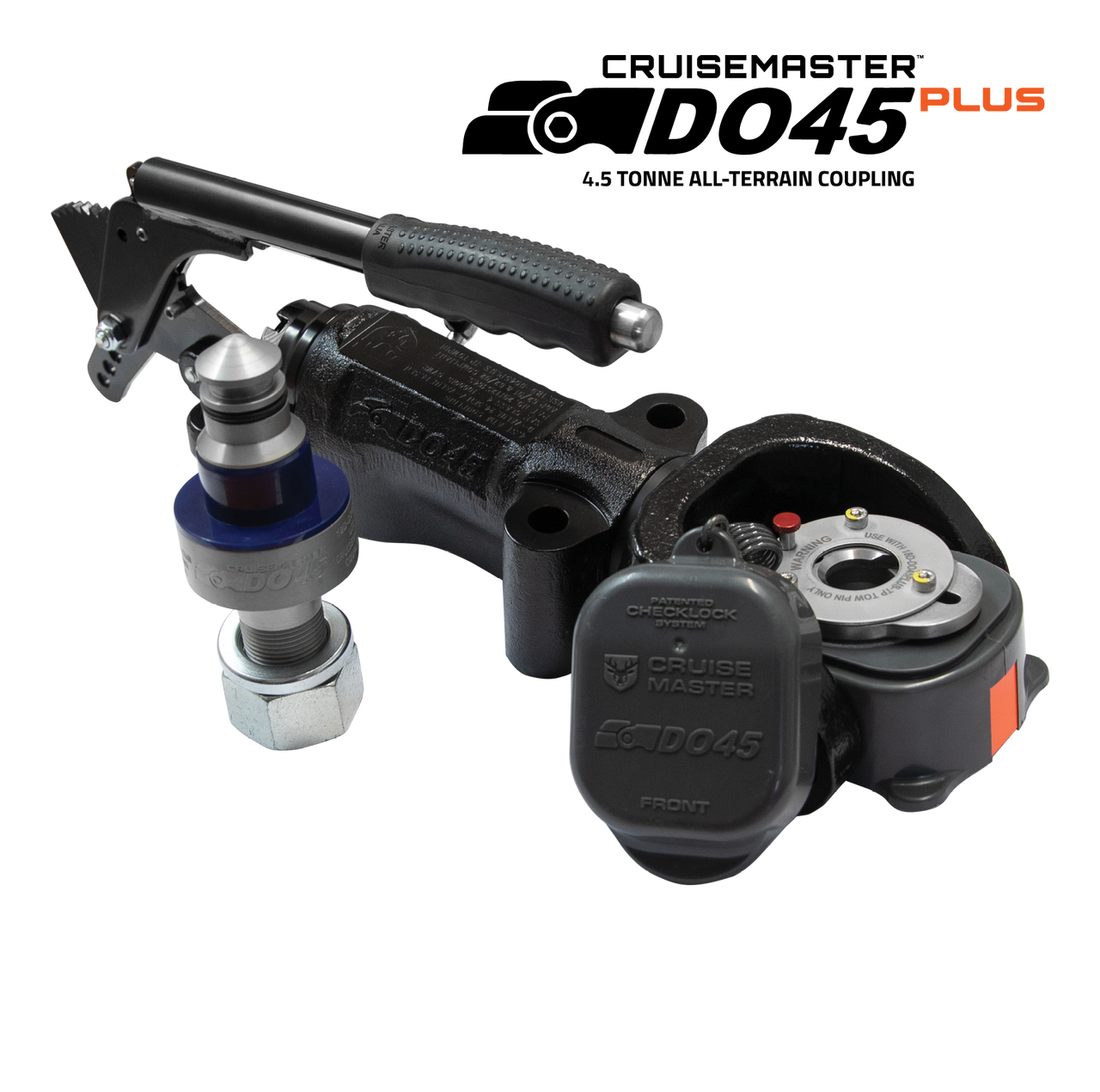

The Cruisemaster DO45 coupler is a 4.5T articulating off-road trailer coupling designed for heavier camper trailers, caravans, and overland builds that exceed the practical range of a DO35. Choose the DO45 when your loaded trailer weight or tow ball load requires the higher 4,500 kg / 9,921 lb class, and when you need true off-road articulation instead of a standard ball coupling.
The Cruisemaster DO45 Off-Road Articulating Trailer Hitch / Coupling - 4.5T (No Handbrake) is built for serious towing setups where strength, movement, lock security, and maintenance access matter. It uses a drop-on design, extreme dual-axis articulation, Positive Interlock engagement, a Checklock dust cap, a tow pin cover, a bright reflector strip for alignment, and a 4,500 kg / 9,921 lb capacity.
For off-road trailer owners, the coupler is not just the part that connects the trailer to the tow vehicle. It is the hinge point that absorbs every twist, climb, dip, and off-camber angle between the two. When the trailer is heavy, choosing the correct coupler becomes a safety decision, not just a convenience upgrade.
What Problem Does the Cruisemaster DO45 Solve?
A standard ball coupler works well on paved roads because the tow vehicle and trailer usually stay close to the same angle. Off-road towing is different. The tow vehicle may climb, twist, or lean while the trailer is still angled the other way. On rutted tracks, steep driveways, washouts, and uneven campsites, a standard coupler can bind and transfer stress into the towbar, drawbar, coupling hardware, or trailer chassis.
The Cruisemaster DO45 solves that problem by using an articulating tow-pin design rather than a basic ball-cup coupling. It allows the trailer and tow vehicle to move more independently while staying securely connected.
| Problem | Why It Matters | How the DO45 Helps |
|---|---|---|
| Heavy trailer needs more rating than a DO35 | Underrated towing parts are unsafe | DO45 is rated to 4,500 kg / 9,921 lb |
| Coupler binds on uneven ground | Binding stresses the trailer and tow vehicle | Dual-axis articulation allows controlled movement |
| Hitching is difficult with a heavy trailer | Small alignment errors are harder to correct | Drop-on design and reflector strip help alignment |
| Dirt enters the mechanism | Dust and water can affect operation | Checklock dust cap helps protect the lock area |
| Lock engagement is uncertain | A poorly locked coupler is dangerous | Positive Interlock engagement and Checklock cap support safety checks |
| Rough roads accelerate wear | Vibration and grit wear moving parts | Greaseable bushes support routine maintenance |
RV Parts Giant’s off-road coupler fitment guide explains the core decision clearly: the DO35 suits most off-road campers up to 3,500 kg, while the DO45 steps up to 4,500 kg for heavier rigs.
Key Features of the Cruisemaster DO45 No-Handbrake Coupler
The RV Parts Giant product listing identifies this product as the no-handbrake DO45 coupler. That means it is intended for trailers that do not need an integrated handbrake lever at the coupler.
| Feature | Practical Benefit |
|---|---|
| 4,500 kg / 9,921 lb capacity | Suitable for heavier camper trailers and overland rigs within rating |
| No-handbrake configuration | Fits trailers where an integrated coupler handbrake is not required |
| Simple drop-on design | Helps make trailer connection quicker and more controlled |
| Extreme dual-axis articulation | Allows movement for off-road and uneven terrain |
| Positive Interlock engagement | Supports simple attachment and secure locking |
| Checklock dust cap | Helps prevent water and dust ingress while also acting as a lock check |
| Tow pin cover | Protects the tow pin when not in use |
| Bright reflector strip | Helps with reversing alignment during hitching |
| Universal C-spanner included | Supports setup and adjustment |
| Mounting bolts included | Helps complete installation with the supplied hardware |
| User guide included | Provides product-specific use and installation information |
Cruisemaster’s official DO45Plus information also lists a 4,500 kg rating, ADR-compliant locking, a patented Checklock Gen.2 dust cap, rear support webbing for suitable underside drawbar mounting, a forged yoke and rear nut, a one-piece lightweight cast housing, greaseable bushes, a wider bolt pattern, and a 1 1/4-inch shaft. Those details are especially useful for buyers comparing the DO45 to smaller or more basic couplers.
Who Should Choose the DO45?
The DO45 is not the default choice for every off-road trailer. It is the right choice when trailer weight, tow ball load, and build configuration justify the heavier-duty coupler.
Best Fit
| Trailer or Owner Type | Why the DO45 Fits |
|---|---|
| Heavy expedition trailers | Higher 4.5T rating suits heavier loaded builds |
| Large dual-axle camper trailers | More capacity than the DO35 class |
| Overland rigs with large water, battery, and gear loads | Added weight can push trailers beyond 3.5T |
| Owners replacing an undersized coupler | DO45 provides the correct higher rating when needed |
| Trailers used on corrugations and rough tracks | Articulation and greaseable bushes suit off-road conditions |
| Buyers who do not need coupler handbrake function | No-handbrake version matches that setup |
Less Ideal Fit
| Situation | Better Direction |
|---|---|
| Trailer is comfortably under 3,500 kg loaded | The DO35 may be more appropriate |
| Trailer requires an integrated handbrake | Choose the correct handbrake version |
| Drawbar does not match the DO45 mounting needs | Confirm fitment before buying |
| Tow vehicle cannot use the required tow pin setup | Resolve tow vehicle compatibility first |
| Trailer is pavement-only and light-duty | A standard coupler may be enough |
RV Parts Giant’s Cruisemaster DO45 review notes that the DO45 is necessary when loaded ATM exceeds 3,500 kg or tow ball weight exceeds 350 kg. That is the practical dividing line most buyers should start with.
DO45 vs DO35: Which Coupler Do You Actually Need?
The DO35 and DO45 are closely related, but they are sized for different trailer classes. Picking the bigger coupler just because it sounds stronger is not always the best decision. The right coupler is the one that matches the trailer’s loaded rating, ball load, drawbar, and towing conditions.
| Coupler | Rated Capacity | Best For |
|---|---|---|
| Cruisemaster DO35 | 3,500 kg / 7,716 lb | Most light to medium off-road camper trailers |
| Cruisemaster DO45 | 4,500 kg / 9,921 lb | Heavier expedition trailers and larger loaded builds |
Choose the DO35 if your trailer stays comfortably within the 3,500 kg class when fully loaded for travel. Choose the DO45 if your loaded trailer weight is genuinely in the 3,500-4,500 kg range or your tow ball weight exceeds the practical DO35 limit.
The important phrase is “fully loaded.” Water, batteries, food, recovery gear, generators, spare tires, fuel, tools, bikes, and front storage can all change the real towing weight. Empty brochure weight is not enough.
RV Parts Giant’s DO35 vs DO45 comparison is a helpful supporting guide if you are still unsure which model fits your trailer.
What Does “No Handbrake” Mean?
The no-handbrake version does not include an integrated handbrake lever at the coupler. That matters because some trailers rely on a coupler-mounted handbrake as part of their parking or braking arrangement, while others use a different system.
| Version | Best For | What to Confirm |
|---|---|---|
| DO45 no handbrake | Trailers that do not require a coupler-mounted handbrake | Confirm your braking and parking setup |
| DO45 with handbrake | Trailers that need handbrake function at the coupler | Confirm cable routing and brake compatibility |
| DO35 no handbrake | Lighter trailers under the DO35 rating without coupler handbrake need | Confirm loaded weight and brake setup |
| Standard ball coupler | Light road-focused trailers | Not ideal for serious off-road articulation |
Do not remove an existing handbrake function unless your trailer has an approved alternative. If you are unsure, check the trailer manufacturer’s guidance or have a qualified trailer technician inspect the braking setup.
Compatibility Checklist Before Buying
Fitment is the most important part of buying a DO45. The coupler may be high quality, but it still has to match the trailer and tow vehicle.
| Compatibility Check | What to Confirm |
|---|---|
| Loaded trailer weight | Must be within the 4,500 kg / 9,921 lb DO45 rating |
| Tow ball weight | Confirm your actual loaded ball weight is appropriate |
| Handbrake requirement | Choose no-handbrake only if your trailer setup allows it |
| Drawbar condition | Mounting surface must be flat, strong, and undamaged |
| Mounting pattern | DO45 uses a wider bolt pattern than smaller couplers |
| Tow pin setup | DO45 requires the correct matching tow pin |
| Shaft size | Official DO45Plus information lists a 1 1/4-inch shaft |
| Safety chain routing | Chains must not bind during articulation |
| Breakaway cable routing | Cable must remain free through turns and articulation |
| Trailer jack clearance | Coupler, jack, and front accessories must not interfere |
| Stone guard and toolbox clearance | Check front-frame accessories before final installation |
| Local towing rules | Confirm the coupler and braking setup comply with your region |
If your trailer uses Black Series hardware or model-specific parts, RV Parts Giant’s Black Series HQ parts compatibility guide is useful because it explains why model year, trailer configuration, and existing hardware matter before ordering upgrade parts.
DO45 Tow Pin Compatibility
The DO45 is not a standard trailer ball coupler. It uses a matching tow pin system. That means the tow vehicle side must be set up correctly before the coupler can be used.
RV Parts Giant’s Cruisemaster collection includes the Cruisemaster DO45 Tow Pin Kit, which is the correct accessory category to review if your existing pin is missing, worn, or needed for a second tow vehicle.
| Tow Pin Question | Why It Matters |
|---|---|
| Do you already have a DO45-compatible tow pin? | The coupler cannot connect to a standard ball by itself |
| Is the pin worn or scored? | Wear can affect secure engagement |
| Are you towing with more than one vehicle? | A second tow pin can make vehicle changes easier |
| Is the pin installed on the correct mount? | Tow height and receiver setup affect trailer attitude |
| Is the pin covered when not used? | The supplied tow pin cover helps protect it from dirt and damage |
Do not mix DO35 and DO45 tow pin hardware unless the manufacturer specifically confirms compatibility for your setup. The DO45 is a heavier coupler and must be matched with the correct pin system.
When Should You Upgrade to the DO45?
Upgrade to the DO45 when your trailer’s real loaded weight or tow ball load has outgrown a lighter coupler. Also consider it when building a heavy expedition trailer from the start.
| Situation | Why the DO45 Makes Sense |
|---|---|
| Loaded trailer exceeds 3,500 kg | DO35 capacity is no longer enough |
| Tow ball weight exceeds DO35 practical range | Higher load class is needed |
| Trailer has large water capacity | Water adds major weight |
| Heavy battery and solar system added | Electrical upgrades can shift weight forward |
| Generator, tools, and recovery gear are carried | Dense gear increases loaded mass |
| Dual-axle expedition trailer build | Often heavier than standard camper trailers |
| Existing coupler is worn or damaged | Replacement is a chance to correct rating |
| Standard coupler binds off-road | Articulating design improves movement |
If your trailer is still comfortably under 3,500 kg when fully loaded, the DO35 may be the smarter match. The DO45 is a targeted upgrade for heavy trailers, not a trophy part.
Installation Considerations for the DO45
The DO45 is a critical towing component. Installation should be handled by a qualified fitter if you are not fully comfortable with trailer drawbars, mounting hardware, torque procedures, tow pin setup, and brake requirements.
1. Park and Secure the Trailer
Park on firm, level ground. Chock the wheels and support the drawbar safely. Never work on an unsupported trailer tongue.
2. Document the Existing Setup
Take photos of the existing coupler, safety chains, breakaway cable, trailer jack, handbrake components if present elsewhere, stone guard, toolbox, and front-frame accessories.
3. Remove the Old Coupler
Remove old mounting hardware carefully. If bolts are corroded or seized, use proper tools and avoid damaging the drawbar.
4. Inspect the Drawbar
The DO45 should mount to a flat, strong, undamaged surface. Check for cracks, elongated holes, rust, poor welds, deformation, and paint damage around the mounting area.
5. Test-Fit the DO45
Set the coupler in position and confirm bolt pattern, coupler height, drawbar alignment, jack clearance, safety chain routing, and front accessory clearance. Do not drill or tighten until alignment is confirmed.
6. Install With Correct Hardware
Use the supplied mounting bolts or manufacturer-specified hardware. Tighten evenly and follow the official user guide for installation details and torque requirements.
7. Install and Check the Tow Pin
Make sure the tow vehicle has the correct DO45 tow pin setup. Confirm the pin is properly secured, aligned, and positioned for safe trailer height.
8. Test Lock Engagement
Couple and uncouple several times before towing. Confirm Positive Interlock engagement and make sure the Checklock dust cap seats correctly only when the lock is engaged.
9. Check Articulation Clearance
Turn the tow vehicle and trailer carefully through realistic angles. Confirm chains, breakaway cable, electrical plug, jack, toolbox, and stone guard do not bind or contact.
10. Recheck After First Tow
After a short test tow, inspect mounting bolts, tow pin, lock function, and any signs of movement. Recheck again after the first off-road trip.
How to Hitch and Unhitch With a DO45
A drop-on coupler is easy to use once you build the habit. The key is alignment, lock confirmation, and a final walkaround.
| Step | What to Do |
|---|---|
| Align the tow vehicle | Use mirrors, camera, spotter, and the reflector strip |
| Lower the coupler onto the pin | Drop on smoothly without forcing |
| Confirm the coupler is fully seated | Do not lock a partly seated coupling |
| Engage the lock | Use the Positive Interlock system as directed |
| Fit the Checklock dust cap | Cap fit confirms the lock is activated |
| Connect safety chains | Route so they do not bind at articulation angles |
| Connect breakaway cable | Keep it secure but free to move |
| Connect electrical plug | Test lights and brake controller operation |
| Raise and stow the jack | Confirm it will not interfere while towing |
| Complete a walkaround | Check tires, chains, plug, coupler, cargo, and clearance |
If the Checklock cap will not fit, do not tow. Recheck seating, lock position, dirt in the mechanism, and tow pin alignment.
Maintenance Tips for the Cruisemaster DO45
A DO45 works in harsh conditions: dust, mud, water, road salt, corrugations, and high tongue loads. Maintenance is not optional if you want smooth articulation and secure locking.
| Maintenance Task | Why It Matters |
|---|---|
| Clean around the lock and pin | Prevents grit from interfering with engagement |
| Fit the Checklock dust cap | Helps protect the lock area when hitched |
| Grease the bushes | Greaseable bushes reduce wear and noise |
| Inspect the tow pin | Wear, scoring, or deformation can affect coupling security |
| Check mounting bolts | Rough roads can loosen hardware |
| Inspect poly bushes | Excessive play can cause clunks or poor articulation |
| Rinse after salt or mud | Reduces corrosion and abrasive buildup |
| Re-grease after water exposure | Water can contaminate or wash out grease |
| Check reflector strip | Helps alignment during hitching |
| Inspect after rough trips | Heavy trailers stress front-end towing hardware |
RV Parts Giant’s Cruisemaster maintenance and greasing guide is written around the DO35, but the same maintenance mindset applies to the DO45: keep the coupling clean, greased, inspected, and checked before towing.
Common Mistakes to Avoid
Most DO45 mistakes happen when owners choose it for the wrong trailer, skip fitment checks, or assume bigger means automatic compatibility.
| Mistake | Why It Causes Problems |
|---|---|
| Buying the DO45 without weighing the trailer | You may not need it, or you may still be overloaded |
| Using no-handbrake on a trailer that needs a handbrake | Removes an important parking/braking function |
| Ignoring the wider bolt pattern | Mounting may not match the drawbar |
| Installing on a damaged drawbar | Coupler strength cannot overcome structural damage |
| Using the wrong tow pin | Coupler engagement depends on correct hardware |
| Forgetting safety chain clearance | Chains can bind during articulation |
| Assuming the reflector strip replaces alignment care | You still need careful reversing |
| Skipping grease service | Dry bushes can wear and bind |
| Towing when Checklock cap does not seat | Lock may not be properly engaged |
| Treating the coupler as a recovery point | Tow pins and couplers should not be used for recovery unless specifically rated for that purpose |
The DO45 is built for heavy trailers, but heavy towing leaves less room for sloppy setup.
Troubleshooting DO45 Coupler Problems
If the DO45 is difficult to use or feels wrong while towing, stop and inspect before continuing.
| Symptom | Possible Cause | What to Check |
|---|---|---|
| Coupler will not drop onto pin | Misalignment, wrong pin, height mismatch, or dirt | Check tow pin and trailer height |
| Lock will not engage | Coupler not fully seated or mechanism contaminated | Clean and reseat before locking |
| Checklock cap will not fit | Lock may not be engaged | Do not tow until resolved |
| Clunking at the hitch | Worn pin, loose bolts, worn bushes, or drawbar wear | Inspect all coupling hardware |
| Binding in turns | Chain, cable, jack, or accessory interference | Check articulation clearance |
| Hard reversing at tight angles | Normal resistance plus trailer geometry | Use smoother, smaller steering inputs |
| Grease looks dirty | Dust or water contamination | Clean and re-grease |
| Mounting bolts move | Torque issue or drawbar problem | Stop towing and inspect immediately |
The DO45 is a strong component, but it is only one part of the towing system. Hitch noise or poor behavior can come from towbar movement, receiver play, suspension wear, trailer loading, or drawbar damage.
Buying Advice: Is the DO45 No-Handbrake Coupler Right for You?
The Cruisemaster DO45 Off-Road Articulating Trailer Hitch / Coupling - 4.5T (No Handbrake) is the right buying choice when your trailer is heavy enough to need the 4.5T class and your braking setup does not require a coupler-mounted handbrake.
Choose the DO45 No-Handbrake Coupler If You Want
| Need | Why It Fits |
|---|---|
| A 4.5T off-road coupler | Rated to 4,500 kg / 9,921 lb |
| More rating than the DO35 | Designed for heavier trailers |
| Off-road articulation | Dual-axis articulation supports uneven terrain |
| Secure locking checks | Positive Interlock and Checklock dust cap support safe engagement |
| A no-handbrake setup | Matches trailers without coupler-mounted handbrake requirement |
| A serviceable coupling | Greaseable bushes support long-term maintenance |
| Easier alignment | Reflector strip helps when reversing to hitch |
Consider Another Option If
| Situation | Better Direction |
|---|---|
| Trailer is under 3,500 kg loaded | Compare the DO35 |
| Trailer requires a coupler handbrake | Choose the handbrake version |
| Tow vehicle lacks the correct pin setup | Add the correct DO45 tow pin first |
| Drawbar is not compatible | Verify or modify professionally |
| You only tow light trailers on pavement | A standard coupler may be enough |
If you are upgrading the front of the trailer at the same time, RV Parts Giant’s off-road trailer jack guide can help you think through coupler height, jack clearance, tongue weight, and campsite handling as one system.
Expert Recommendation
The DO45 is worth buying when the numbers justify it. If your trailer’s loaded GTM or ATM sits in the heavy-duty range, or if tow ball weight has moved beyond what a DO35 is intended to handle, the DO45 is the correct Cruisemaster coupler to consider. It gives you the higher 4,500 kg / 9,921 lb rating with the articulation and locking features that make Cruisemaster couplers popular for off-road towing.
The no-handbrake version is best for trailers that do not need an integrated coupler handbrake. Before ordering, verify loaded weight, tow ball weight, drawbar mount, bolt pattern, shaft and tow pin requirements, safety chain routing, breakaway cable movement, jack clearance, and local towing rules. If those checks line up, the DO45 gives heavy off-road trailers a more appropriate coupling than forcing a smaller hitch to do a bigger job.
Frequently Asked Questions
What is the Cruisemaster DO45 coupler?
The Cruisemaster DO45 is a 4.5T articulating off-road trailer coupler. It is designed for heavier caravans, camper trailers, and overland trailers that need more articulation than a standard ball coupling.
What is the weight rating of the DO45?
The DO45 is rated to 4,500 kg / 9,921 lb. Match that rating against the trailer’s fully loaded weight, not the empty brochure weight.
What does “no handbrake” mean on the DO45?
“No handbrake” means this version does not include an integrated handbrake lever at the coupler. It should be used only on trailers where the braking and parking setup does not require that feature.
Is the DO45 better than the DO35?
Only for heavier trailers. The DO35 is usually the better fit for trailers under 3,500 kg, while the DO45 is intended for trailers that need up to 4,500 kg capacity.
Does the DO45 use a standard trailer ball?
No. The DO45 uses a tow-pin style connection rather than a standard ball coupler. Confirm the correct DO45 tow pin setup before towing.
Can I install the Cruisemaster DO45 myself?
A skilled DIY owner may be able to install it if the drawbar, mounting pattern, tow pin, and braking setup are compatible. Because it is a critical towing part, professional installation is recommended when anything is uncertain.
How do I know the DO45 is locked correctly?
The DO45 uses Positive Interlock engagement, and the Checklock dust cap is designed to fit only when the lock is activated. If the cap does not fit, do not tow.
How should I maintain a DO45 coupler?
Keep it clean, grease the bushes, inspect the tow pin and mounting bolts, check the Checklock cap, and re-grease after water, mud, dust, or salt exposure.
Final Takeaway
The Cruisemaster DO45 coupler is the right off-road hitch for heavy camper trailers and expedition builds that genuinely need a 4.5T rated articulating coupling. Its 4,500 kg / 9,921 lb capacity, drop-on design, dual-axis articulation, Positive Interlock engagement, Checklock dust cap, tow pin cover, reflector strip, greaseable construction, and no-handbrake configuration make it a strong fit for heavy trailers with the correct braking setup.
Do not choose it by guesswork. Weigh the trailer as it actually travels, confirm tow ball weight, check whether you need the handbrake version, verify drawbar and tow pin compatibility, and inspect the full front-end setup before installation. When the trailer truly needs the extra rating, the Cruisemaster DO45 Off-Road Articulating Trailer Hitch / Coupling - 4.5T (No Handbrake) is the practical step up from the DO35 for safer, smoother, and more capable heavy off-road towing.
