A trailer coupling does more than connect a trailer to a tow vehicle. It also affects how the trailer is parked, secured, serviced, and prepared for the next journey.
For heavy caravans, camper trailers, and expedition trailers, an integrated handbrake can make the front of the trailer easier to manage during setup. The Cruisemaster DO45 Off-Road Articulating Trailer Hitch / Coupling – 4.5T With Handbrake combines a heavy-duty articulating coupling with a handbrake configuration designed for trailers that require handbrake control at the coupler.
The DO45 Plus platform is rated at 4.5 tonnes and uses a drop-on articulating design. Cruisemaster lists high articulation, a two-stage locking mechanism, greaseable bushes, a low-profile bumper and cap, and an integrated handbrake option among its key features. Always confirm the exact configuration, hardware, and regional requirements on the product listing before installation.
What Does the Handbrake Add?
The handbrake provides a dedicated way to hold the trailer when it is disconnected from the tow vehicle. This is particularly useful when preparing a trailer at a campsite, storage area, service location, or uneven parking spot.
An integrated handbrake can help with:
-
Securing the trailer after uncoupling
-
Reducing unwanted trailer movement during setup
-
Holding the trailer while the tow vehicle is repositioned
-
Making campsite arrival and departure more controlled
-
Keeping the braking control close to the coupling
-
Simplifying the front-of-trailer parking routine
The handbrake should be treated as one part of the complete parking system. Wheel chocks, a stable surface, correct brake adjustment, and safe trailer positioning remain important.
A handbrake does not make it safe to park on an unstable slope without additional precautions.
Why the DO45 Is Suited to Heavy Off-Road Trailers
The DO45 is designed for trailers that need more capacity and articulation than a lighter coupling can provide. Its 4.5-tonne rating makes it suitable for heavier off-road caravans, camper trailers, and overland builds when the fully loaded trailer remains within the approved limits.
Off-road trailers experience more movement than road-only trailers. The tow vehicle and trailer may be at different angles while crossing:
-
Deep ruts
-
Uneven approaches
-
Steep campsite entrances
-
Rocky tracks
-
Off-camber surfaces
-
Corrugated roads
-
Washouts and drainage channels
A rigid or poorly matched coupling can transfer unnecessary stress into the drawbar and tow vehicle. An articulating design allows the trailer and tow vehicle to move more independently while remaining connected.
Cruisemaster’s official DO45 Plus information identifies the coupling as a 4.5-tonne drop-on articulating unit with high articulation, greaseable bushes, a two-stage locking system, and handbrake availability.
The Handbrake and Coupling Should Be Chosen Together
The handbrake version is not simply a cosmetic variation. It must match the trailer’s braking arrangement and the space available around the drawbar.
Before ordering, check:
| Compatibility Area | What to Confirm |
|---|---|
| Trailer weight | The loaded trailer must remain within the DO45 rating |
| Brake system | Confirm the handbrake connects correctly to the trailer brakes |
| Drawbar space | Check clearance for the handbrake lever and cable |
| Coupling type | Confirm that the trailer uses a compatible articulating setup |
| Mounting pattern | Check the DO45 bolt pattern against the drawbar |
| Tow pin system | Confirm the correct tow pin and tow vehicle hardware |
| Door and toolbox clearance | Make sure front accessories can open normally |
| Wheel chock position | Ensure the handbrake and chocks can be used together |
| Local regulations | Verify compliance with applicable trailer rules |
If you are replacing a no-handbrake coupling, do not assume that the existing brake cable routing will work without adjustment. The cable may need to be repositioned, shortened, or replaced depending on the trailer design.
A Better Trailer Parking Routine
The handbrake becomes most useful when it is part of a consistent arrival and departure routine.
Step 1: Select a Stable Parking Area
Choose the flattest practical area available. Avoid soft shoulders, loose gravel edges, unstable slopes, and surfaces that may become slippery after rain.
Step 2: Keep the Trailer Connected During Initial Positioning
When possible, position the trailer while it is still connected to the tow vehicle. This gives you better control and allows you to correct the angle before uncoupling.
Step 3: Apply the Trailer Handbrake
Once the trailer is in position, apply the handbrake according to the product and brake-system instructions. Do not release the tow vehicle until the trailer is properly secured.
Step 4: Add Wheel Chocks
Place suitable wheel chocks on the downhill side of the trailer wheels, or use the arrangement recommended for the site and trailer. Chocks provide a physical backup against movement.
Step 5: Check the Trailer Before Uncoupling
Inspect the ground, wheel position, jack location, and surrounding clearance. Keep people away from pinch points around the coupling and drawbar.
Step 6: Uncouple Carefully
Follow the correct uncoupling procedure. Keep hands and fingers clear of moving coupling components and ensure the safety chains are handled safely.
Step 7: Recheck Stability
After uncoupling, observe whether the trailer settles, rolls, or shifts. If movement occurs, reconnect the trailer and reassess the parking position.
Using the Handbrake on Uneven Ground
An off-road campsite is rarely perfectly level. A small slope may be manageable, but the risk increases when the trailer is heavy, loaded, or positioned across uneven ground.
On sloped terrain:
-
Park facing the safest direction.
-
Keep the trailer connected while making final adjustments.
-
Apply the handbrake before uncoupling.
-
Use wheel chocks in addition to the handbrake.
-
Keep the trailer jack on a firm support surface.
-
Avoid placing the jack on loose sand or soft mud.
-
Do not rely on the handbrake alone for long-term storage.
-
Recheck the trailer after loading or unloading gear.
Water tanks, batteries, fuel containers, tools, and outdoor equipment can change the trailer’s weight distribution. A trailer that was stable when empty may behave differently when fully loaded.
Maintaining the Handbrake and Coupler
Off-road travel exposes the coupling to dust, mud, water, grit, and vibration. Routine inspection is essential because the handbrake and coupling work as part of the trailer’s connection and braking system.
Inspect the Handbrake
Check the lever, mounting points, cable routing, and cable connection. Look for:
-
Frayed or damaged cable sections
-
Kinks or sharp bends
-
Loose mounting hardware
-
Excessive lever travel
-
Corrosion around exposed components
-
Cable interference with the drawbar or accessories
The handbrake should move smoothly and should not remain partially engaged when released.
Grease the Coupling
The DO45 platform uses greaseable bushes to support articulation and reduce wear. Follow the manufacturer’s recommended grease points and service intervals.
Clean away old contaminated grease before applying fresh lubricant when necessary. Excess dirt mixed with grease can become abrasive, especially after dusty trail use.
Check the Locking Mechanism
Before every trip, confirm that the coupling is fully engaged on the tow pin. The locking system should be visibly and mechanically secure.
The DO45 Plus Checklock cap is designed to assist with the pre-towing check. If the cap does not fit correctly, stop and inspect the coupling rather than towing.
Inspect the Mounting Bolts
Check the mounting bolts and drawbar area for looseness, cracks, distortion, rust, or movement marks. Any damage around the mounting surface should be assessed before the trailer is used again.
Handbrake Cable Routing Matters
A handbrake cable should have enough movement for normal trailer articulation without becoming stretched, trapped, or sharply bent.
During inspection, turn the coupling through its normal range of movement and check that:
-
The cable does not rub against the drawbar
-
The cable does not pull tight during turns
-
The cable does not contact the ground
-
The cable does not interfere with the trailer jack
-
The cable remains clear of safety chains
-
The cable is not pinched by a toolbox or stone guard
Poor cable routing can reduce braking performance and accelerate wear. If the cable length or routing is uncertain, have a qualified trailer technician inspect it.
Installation Considerations
The DO45 is a structural towing component. Installation should be completed by a qualified installer when the drawbar needs modification, the brake system requires adjustment, or the existing mounting pattern does not match.
Before installation:
-
Measure the existing coupling and drawbar.
-
Confirm the DO45 mounting pattern.
-
Check whether the handbrake has enough operating clearance.
-
Inspect the drawbar for cracks, corrosion, and deformation.
-
Verify tow pin compatibility.
-
Check front-door and toolbox clearance.
-
Confirm the brake cable route.
-
Use the specified mounting hardware and torque procedure.
-
Test the handbrake before towing.
-
Complete a full hitching and braking inspection.
Cruisemaster notes that DO45 Plus accessories and fittings are not interchangeable with every earlier DO45 version. This is an important reason to confirm the exact model generation before ordering replacement components.
DO45 With Handbrake vs. DO45 Without Handbrake
| Feature | DO45 With Handbrake | DO45 Without Handbrake |
| Coupling capacity | 4.5 tonnes | 4.5 tonnes |
| Articulating design | Yes | Yes |
| Integrated coupler handbrake | Yes | No |
| Best for | Trailers requiring handbrake control at the coupling | Trailers with another approved brake-control arrangement |
| Installation considerations | Requires cable routing and clearance checks | Simpler front-end configuration |
| Parking workflow | Adds a dedicated handbrake step | Relies on the trailer’s existing parking system |
The correct version depends on the trailer’s braking design, not simply personal preference.
Common Mistakes to Avoid
Using the Handbrake as a Recovery Device
The coupling and tow pin are designed for towing connection, not vehicle recovery. Do not use the DO45 to pull another vehicle, recover a stuck trailer, or apply shock loads outside its intended use.
Forgetting Wheel Chocks
The handbrake is not a replacement for wheel chocks on sloped or unstable ground.
Ignoring Loaded Weight
The trailer must be assessed in its normal travel condition, including water, batteries, fuel, tools, food, and camping equipment.
Mixing Incompatible Accessories
Do not assume that a tow pin, handbrake kit, or replacement fitting from another DO45 generation will fit the current model.
Towing Before Checking the Lock
Never tow if the coupling is not completely engaged and locked. Use the visual safety checks every time.
Frequently Asked Questions

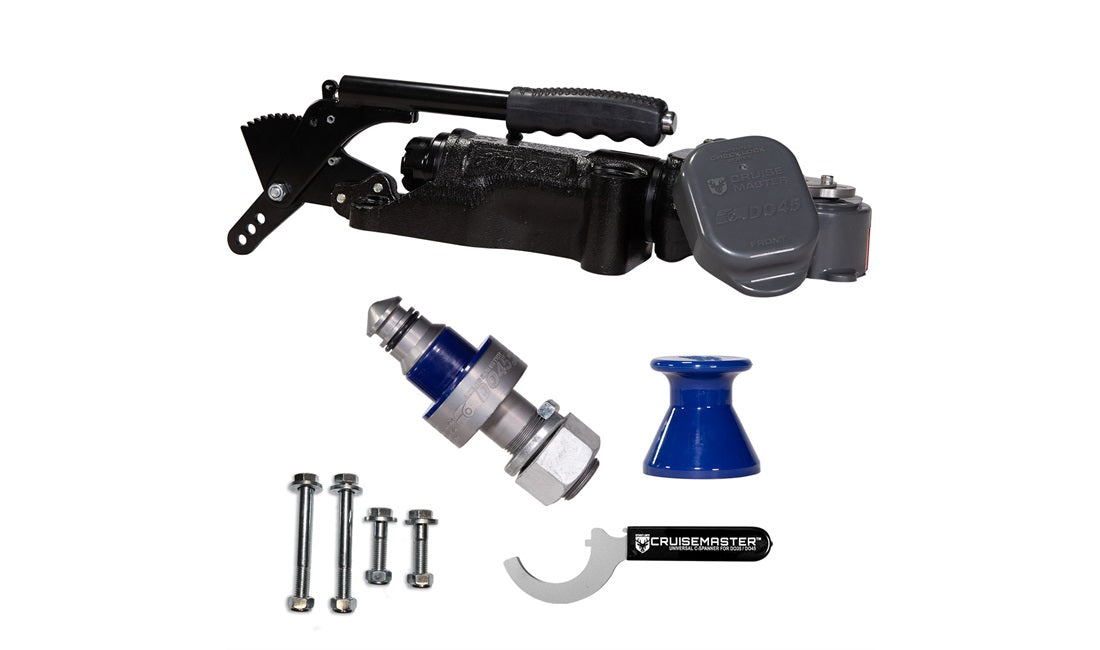

What is the Cruisemaster DO45 with handbrake?
It is a 4.5-tonne articulating off-road trailer coupling with an integrated handbrake configuration for compatible trailer braking systems.
What is the main benefit of the handbrake?
It provides a dedicated way to help secure the trailer after positioning and before uncoupling, especially during campsite setup and storage.
Is the DO45 suitable for every trailer?
No. It must match the trailer’s loaded weight, drawbar mounting pattern, tow pin system, brake arrangement, and available clearance.
Do I still need wheel chocks?
Yes. Wheel chocks should be used whenever the trailer is parked, especially on uneven or sloped ground.
Can I replace a no-handbrake DO45 with the handbrake version?
Possibly, but fitment and brake-cable compatibility must be confirmed first. The drawbar, cable routing, mounting pattern, and clearance all need to be checked.
How often should the coupling be greased?
Follow the manufacturer’s maintenance schedule and inspect the coupling more frequently after dusty, muddy, wet, or salt-heavy travel.
Can the DO45 be used for vehicle recovery?
No. The tow pin and coupling should not be used for recovery purposes or shock loading.
What should I check before every trip?
Check the locking mechanism, tow pin, handbrake release, safety chains, breakaway system, mounting bolts, cable routing, tires, and trailer lights.
Final Takeaway
The Cruisemaster DO45 with handbrake is designed for heavy off-road trailers that need a 4.5-tonne articulating coupling and integrated handbrake control. Its value is not limited to rough-road articulation. When correctly installed, the handbrake can make trailer parking, uncoupling, campsite setup, and storage more controlled.
Before buying or installing, confirm the trailer’s loaded weight, brake system, drawbar dimensions, tow pin compatibility, mounting pattern, handbrake clearance, and cable routing. During use, combine the handbrake with wheel chocks and a stable parking surface.
For heavy caravans and expedition trailers that require this configuration, the Cruisemaster DO45 Off-Road Articulating Trailer Hitch / Coupling – 4.5T With Handbrake offers a practical combination of towing capacity, off-road articulation, locking control, and trailer parking convenience.
