Off-grid RV travel becomes much more convenient when you can use familiar 120V electronics without connecting to campground shore power. A laptop, television, camera charger, small fan, or communication device may all require AC power, even when your RV is supplied primarily by a 12V battery system.

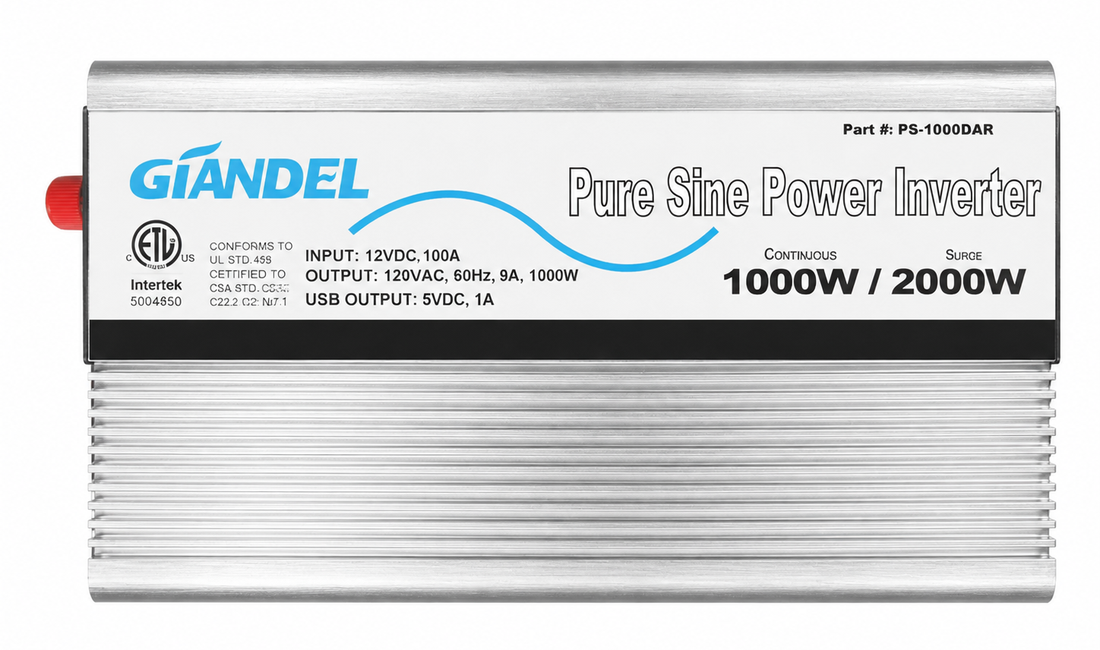

The GIANDEL PS-1000DAR 1000W Pure Sine Wave Inverter is designed to convert 12V DC battery power into 120V AC electricity for RV, vehicle, and off-grid applications. Its 1000W rating makes it especially suitable for moderate electrical loads rather than large heating appliances or complete RV electrical systems.
The key to getting the best performance is not simply connecting as many devices as possible. It is understanding how much power your electronics use, how much current the inverter draws from the battery, and how to install and operate the system safely.
What the GIANDEL PS-1000DAR Does
The GIANDEL PS-1000DAR is a 12V DC to 120V AC inverter with a 1000W power rating and pure sine wave output.
| Product characteristic | Description |
|---|---|
| Brand | GIANDEL |
| Model | PS-1000DAR |
| Input | 12V DC |
| Output | 120V AC |
| Rated power | 1000W |
| Waveform | Pure sine wave |
| Intended use | RVs, vehicles, battery systems, and off-grid power |
The inverter draws energy from a 12V battery bank and supplies AC power for compatible devices. It does not create energy independently. Every watt used on the AC side must ultimately come from the battery, charging system, or another DC power source.
The exact included accessories, protection functions, outlet configuration, and installation requirements should always be confirmed on the live product listing and user manual before installation.
Why Pure Sine Wave Output Matters in an RV
A pure sine wave inverter produces AC power that more closely resembles the electricity supplied by a utility outlet. This can be beneficial for electronics that contain sensitive power supplies, motors, compressors, or digital controls.
Compared with basic modified sine wave output, pure sine wave power may help reduce:
-
Audible buzzing from certain devices
-
Electrical interference
-
Excess heat in some power adapters
-
Unstable operation in sensitive electronics
-
Problems with selected motor-driven equipment
This does not mean every appliance will automatically work with a 1000W inverter. The device must still remain within the inverter’s continuous and startup power limits. Pure sine wave output improves power quality, but it does not increase the inverter’s wattage capacity.
What Can a 1000W RV Inverter Run?
A 1000W pure sine wave inverter is a practical size for many everyday electronics. It is commonly used when an RV owner wants basic AC convenience without building a high-capacity whole-coach power system.
Suitable examples may include:
-
Laptop computers
-
Phone and camera chargers
-
Small televisions
-
Internet routers and communication equipment
-
Low-wattage LED lighting
-
Small fans
-
Portable monitors
-
Audio equipment
-
Some CPAP machines
-
Selected compact kitchen or office devices
Actual power consumption varies by manufacturer and model. Always check the appliance label, owner’s manual, or manufacturer specifications before connecting it.
| Device type | Typical operating range | Important consideration |
| Laptop charger | 45–180W | Startup demand is usually low |
| Television | 40–200W | Allow additional power for soundbars or streaming devices |
| Camera or phone chargers | 5–100W | Several small chargers may run together |
| Small fan | 20–100W | Motor startup may require extra power |
| Compact monitor | 25–100W | Check the power adapter label |
| CPAP machine | Varies | Heated humidifiers can substantially increase demand |
| Coffee maker | 800–1,500W | Many models exceed a 1000W inverter’s practical range |
| Microwave | Usually above 1,000W input | Not generally a good match |
| Hair dryer or space heater | 1,000–1,800W | High-resistance heating loads can overload the inverter |
The table provides general examples only. The actual rating printed on the device takes priority.
Leave Power Headroom
Running an inverter continuously at its maximum rating leaves little room for startup surges or measurement differences. A better approach is to keep the normal combined load below the 1000W rating.
For example, a laptop using 90W, a television using 120W, a small fan using 50W, and chargers using 40W would create an estimated 300W load. This leaves considerable headroom for temporary changes in demand.
Avoid connecting several high-wattage appliances at the same time. A coffee maker, microwave, induction cooktop, electric heater, or hair dryer can use most or all of the available capacity by itself.
Motors and compressors also require additional power when starting. Refrigerators, pumps, air compressors, and similar devices may have a startup surge several times higher than their normal running wattage. Check the manufacturer’s startup rating before assuming that the appliance will operate successfully.
For a more detailed explanation of inverter sizing, see the RV inverter sizing and installation guide.
How Much Battery Current Does a 1000W Inverter Need?
The DC side of an inverter can draw substantial current. At a theoretical 1000W load, a 12V system would require approximately:
1000W ÷ 12V = 83.3A
Real systems draw more because the inverter is not 100% efficient and battery voltage changes under load. At full output, the actual current may approach or exceed 90A depending on voltage, efficiency, wiring, and operating conditions.
This is why a 1000W inverter should be connected directly to a properly sized battery system using appropriately sized cables and overcurrent protection. Long, undersized, or poorly terminated cables can cause voltage drop, heat, nuisance shutdowns, and reduced performance.
Follow the product manual for:
-
Battery cable gauge
-
Maximum cable length
-
Fuse or breaker rating
-
Grounding requirements
-
Terminal tightening specifications
-
Battery type compatibility
Never select a fuse simply because it matches the inverter’s wattage. The protection device must be appropriate for the cable, battery system, and installation method.
Battery Runtime: What to Expect
Battery runtime depends on the load, battery capacity, battery chemistry, allowable depth of discharge, inverter efficiency, and battery condition.
A simple estimate is:
Usable watt-hours ≈ Battery voltage × Amp-hours × Usable capacity × Inverter efficiency
For example, a 12.8V 100Ah lithium battery contains approximately 1,280 watt-hours of nominal energy. If 80% of the capacity is used and the inverter operates at approximately 90% efficiency, the usable AC energy may be roughly 920 watt-hours.
At a 300W load, that could provide approximately three hours of theoretical operation. At 800W, the runtime would be much shorter.
This is only an estimate. Low battery temperature, battery age, wiring resistance, inverter idle consumption, and high current demand can all reduce actual runtime.
For a full-system perspective, RV owners can also review the RV electrical system upgrade guide.
Installation Tips for RV Owners
A reliable installation begins with the physical location of the inverter.
Choose a location that is:
-
Dry and protected from water
-
Well ventilated
-
Away from direct sunlight
-
Close to the battery to minimize cable length
-
Easy to inspect and service
-
Protected from loose cargo and vibration
Do not mount the inverter inside a battery compartment where explosive gases may accumulate. Keep ventilation openings clear, and do not cover the housing with clothing, storage bins, or insulation.
Before wiring:
-
Turn off the inverter.
-
Disconnect the battery’s positive connection.
-
Confirm the polarity of every cable.
-
Install the required fuse or breaker close to the battery.
-
Connect the cables according to the manual.
-
Inspect all terminals for tightness.
-
Test the system with a small load first.
If the inverter will be connected to existing RV receptacles, have the AC installation completed by a qualified professional. A standalone inverter outlet and a hardwired RV electrical system are not the same thing.
Never Backfeed the RV
One of the most important safety rules is to avoid plugging the inverter into an RV wall outlet with a male-to-male cord. This can energize wiring in an unsafe and uncontrolled way.
To power selected RV receptacles from an inverter, the system requires an approved transfer switch, proper circuit protection, correct neutral and ground handling, and installation that follows applicable electrical rules.
For a simple setup, connect appliances directly to the inverter’s approved AC output. This is easier to understand and reduces the risk of accidentally energizing circuits that were not designed for inverter power.
Common Reasons an RV Inverter Shuts Down
If the inverter alarms or switches off, check the system in a logical order:
Low battery voltage
High AC loads can pull the battery voltage down quickly. Check the voltage at the inverter terminals while the load is operating, not only at rest.
Excessive load
Disconnect some appliances and test the inverter with a smaller load. Remember to consider startup power.
Undersized cables
Small or excessively long cables can create voltage drop between the battery and inverter. Inspect for hot terminals, loose lugs, or damaged insulation.
Poor ventilation
An inverter may reduce output or shut down if heat cannot escape. Make sure the cooling area is unobstructed.
Weak battery
A battery may show normal voltage with no load but collapse under heavy current demand. Test the battery under load if shutdowns continue.
The RV inverter troubleshooting guide provides additional diagnostic steps for voltage, overload, wiring, and overheating problems.
Best Operating Practices
To improve efficiency and battery life:
-
Turn the inverter off when AC power is not needed.
-
Charge devices in batches when practical.
-
Avoid leaving high-draw appliances connected in standby mode.
-
Keep the battery adequately charged before using large loads.
-
Use direct 12V versions of appliances when available.
-
Inspect cables and terminals periodically.
-
Avoid operating the inverter in wet or excessively hot conditions.
-
Confirm appliance wattage before connecting it.
Using a direct 12V appliance can sometimes be more efficient than converting 12V DC to 120V AC and then converting it back to a lower DC voltage through an adapter.
Frequently Asked Questions
Is a 1000W inverter enough for an RV?
It can be enough for laptops, televisions, chargers, small fans, and other moderate loads. It is generally not intended to power an RV air conditioner, electric heater, microwave, or several high-wattage appliances simultaneously.
Is pure sine wave better for RV electronics?
Pure sine wave output is generally preferred for sensitive electronics, motor-driven devices, and equipment with switching power supplies. However, the connected device must still remain within the inverter’s power limits.
Can this inverter run directly from a solar panel?
A standard inverter should not be connected directly to a solar panel unless the product specifically states that it is designed for that purpose. Solar panels normally charge a compatible battery through a solar charge controller, and the inverter then draws power from the battery system.
What battery size should be used?
The required battery size depends on the intended load and runtime. A larger battery provides more available energy, but the battery’s continuous discharge rating must also support the inverter’s DC current demand.
Can it power the entire RV?
A 1000W inverter is usually better suited to selected outlets or directly connected appliances. Powering the entire RV requires careful AC distribution design, transfer equipment, circuit protection, and professional installation.
Final Takeaway
The GIANDEL PS-1000DAR is a useful choice for RV owners who want clean 120V AC power for everyday electronics while camping away from shore power. Its 1000W rating is well suited to moderate loads such as computers, chargers, televisions, small fans, and selected medical or communication devices.
The best results come from realistic load planning, short and properly sized battery cables, correct DC protection, good ventilation, and responsible battery management. By treating the inverter as part of a complete 12V electrical system, RV owners can enjoy convenient AC power without placing unnecessary stress on the battery or wiring.
