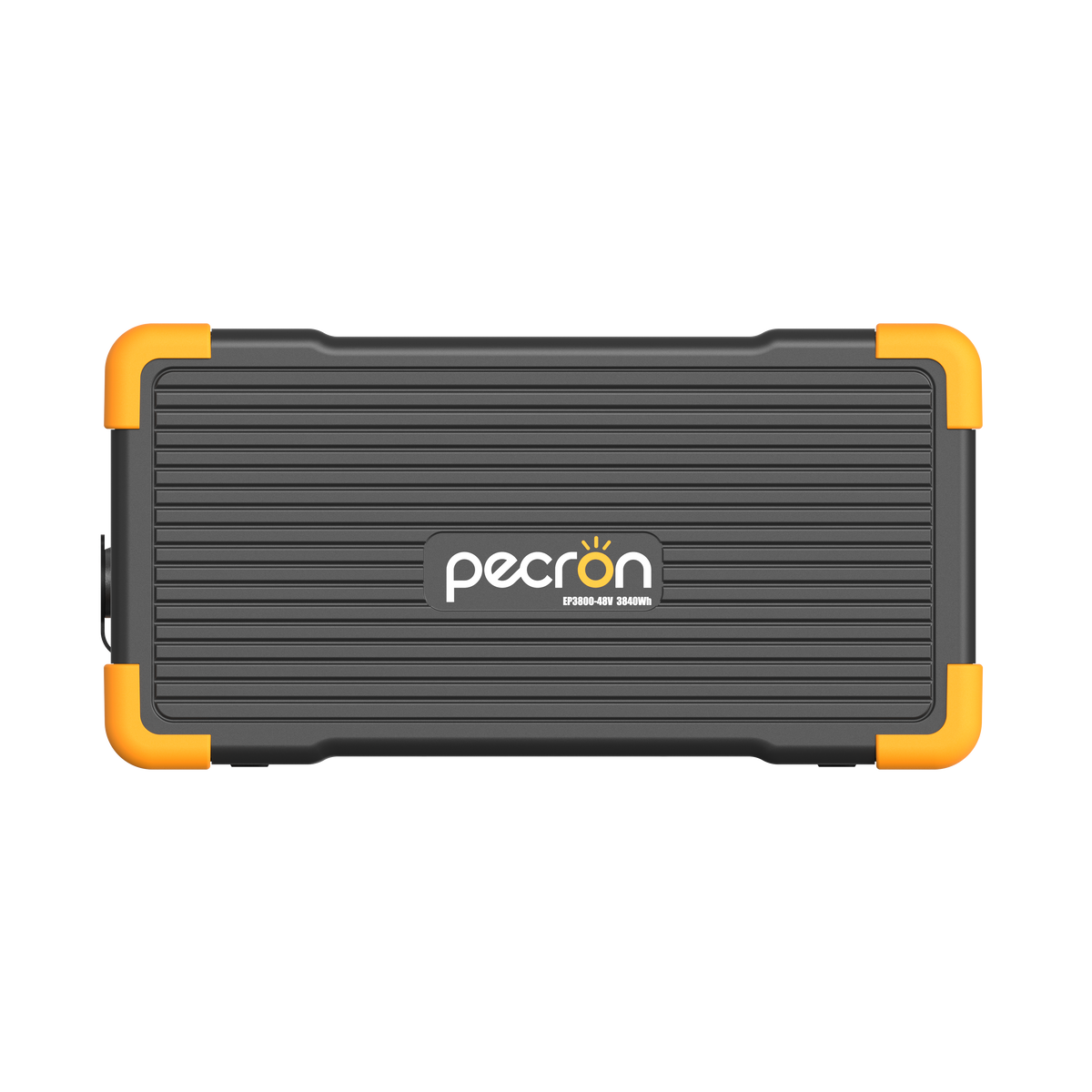

The Pecron EP3800-48V is a 3,840Wh LiFePO4 battery that bolts more capacity onto a Pecron power station. It has no outlets and no charging input of its own: it connects to the station with a cascade cable, the station charges it and draws from it, and together they behave like one bigger battery. This guide covers which Pecron stations it works with, how many each one takes, the total capacity you end up with, and the setup steps from Pecron's manual.
Which stations it expands
Pecron lists the EP3800-48V for the E1500LFP, E2400LFP, E3600LFP and F3000LFP among the stations we sell (its page also names the E1000LFP, E3800LFP and F5000LFP, which we don't carry). The E300LFP has no expansion port.
| Station | Station capacity | Max packs (Pecron) | Total with max EP3800-48V | Usable (x 0.85, our estimate) | Cable |
|---|---|---|---|---|---|
| E1500LFP | 1,536Wh | 2 | 9,216Wh | about 7,834Wh | MJ32 (in the EP3800-48V box) |
| E2400LFP | 2,048Wh | 2 | 9,728Wh | about 8,269Wh | MJ32 (in the box) |
| E3600LFP | 3,072Wh | 4 | 18,432Wh | about 15,667Wh | MJ32 (in the box) |
| F3000LFP | 3,072Wh | 2 | 10,752Wh | about 9,139Wh | XT120 cascade cable from Pecron |
Every total is the station plus 3,840Wh per pack, and each matches the figure on Pecron's product pages: 1,536 + (2 x 3,840) = 9,216; 2,048 + (2 x 3,840) = 9,728; 3,072 + (4 x 3,840) = 18,432; 3,072 + (2 x 3,840) = 10,752. The usable column applies the 85% factor Pecron's E-series manuals use to estimate running time.
You don't have to buy the maximum. One pack is often enough: an E2400LFP with one EP3800-48V is 5,888Wh (2,048 + 3,840), about 5,005Wh usable.
The F3000LFP needs a different cable
The EP3800-48V ships with an MJ32 cascade cable, and Pecron's EP3800-48V manual says it cascades to stations with an MJ32 port. The E1500LFP, E2400LFP and E3600LFP have MJ32 ports. The F3000LFP's expansion port is an XT120, and Pecron's EP3800-48V page tells F3000LFP owners to contact Pecron for the XT120 cascade cable. If you're pairing an EP3800-48V with an F3000LFP, ask us when you order and we'll sort the cable out with Pecron before it ships.
What about the FP5000-48V?
The FP5000-48V is a 5,120Wh pack that Pecron lists for its F5000LFP. Pecron doesn't list it for the stations in the table above, and we don't sell the F5000LFP, so for the stations we carry the EP3800-48V is the pack to look at.
How much expansion do you need?
Work out your daily use in watt-hours, multiply by the days you want to go without charging, and divide by 0.85 to get the rated capacity to aim for. For example:
- 900Wh a day for 4 days without sun: 900 x 4 = 3,600Wh usable, ÷ 0.85 = about 4,235Wh rated. An E2400LFP plus one EP3800-48V (5,888Wh) covers it; an E1500LFP plus one pack (5,376Wh) does too.
- 2,000Wh a day for 3 days: 6,000Wh usable, ÷ 0.85 = about 7,059Wh rated. An E3600LFP plus one pack (6,912Wh) falls just short; plus two packs (10,752Wh) clears it.
- Home backup through a multi-day outage: this is where the E3600LFP with four packs (18,432Wh) earns its keep.
Batteries only store energy; they don't make it. If you stay out longer than the battery lasts, size your solar too. A rough guide is daily watt-hours ÷ (4 to 5 sun hours x 0.75); our Pecron solar guide lists each station's input limits.
Setting it up: Pecron's steps
- Match the charge levels. Pecron says to bring the station and the pack within about 10% of each other before connecting. A bigger gap works but takes longer to balance.
- Set unique serial numbers. Each EP3800-48V has a serial-number knob. With more than one pack, give each a different number; duplicates can cause wrong battery readings. The numbers match the packs shown in the Pecron app.
- Connect the cascade cable. On the MJ32 cable, the PUSH button faces up; push until it clicks. You can turn the plug up to 90 degrees either way before inserting it, not after.
- Wait for green. The pack's status light shows yellow while it balances with the station and green when balanced. Pecron says to wait for green before running high-power loads.
A few more points from the manual: the pack can't be switched on or used without the station; the station's screen may not show the pack's own charge and discharge power, but it counts the pack in the battery level, and the app shows each pack's current and voltage; and after you switch the station off, the packs finish balancing before they shut down.
Stacking and storage
Packs stack on top of each other using the corner protectors, metal connecting pieces and screws in the box. Pecron says to stack no more than four. The EP3800-48V works between 32°F and 113°F (0-45°C); outside that range it won't run. For storage, Pecron recommends charging fully at least once every two months and, for long-term storage, charging and discharging every three months and storing at about 60%. Its manual also says leaving the pack uncharged or unused for more than six months voids the warranty.
Plan for the weight
An EP3800-48V is a heavy box. Pecron's own documents give different weights for it, so check the product page and plan on two people to lift it into a basement bay or onto a stack.
FAQ
Can I charge the EP3800-48V on its own?
No. It has no input or outlets and can't be activated without the station. It charges through the station from AC, solar or the vehicle.
Does adding a pack increase the station's output?
No. Packs add watt-hours (how long), not watts (how much at once). The inverter rating stays the same.
Can I mix pack sizes or brands?
Pecron's manuals warn against non-Pecron packs, which can damage the station. Stick to the packs Pecron lists for your model.
Warranty and shipping?
2 years (Pecron). The EP3800-48V ships from our warehouse in Upland, California to the lower 48 states. Not sure which setup fits? Ask us, or start with which Pecron power station fits an RV.
