Knowing how much water remains in an RV tank is one of the simplest ways to make camping more comfortable and better organized. A reliable tank level reading helps you decide when to refill, conserve water, prepare for an off-grid stay, or investigate a possible plumbing problem.

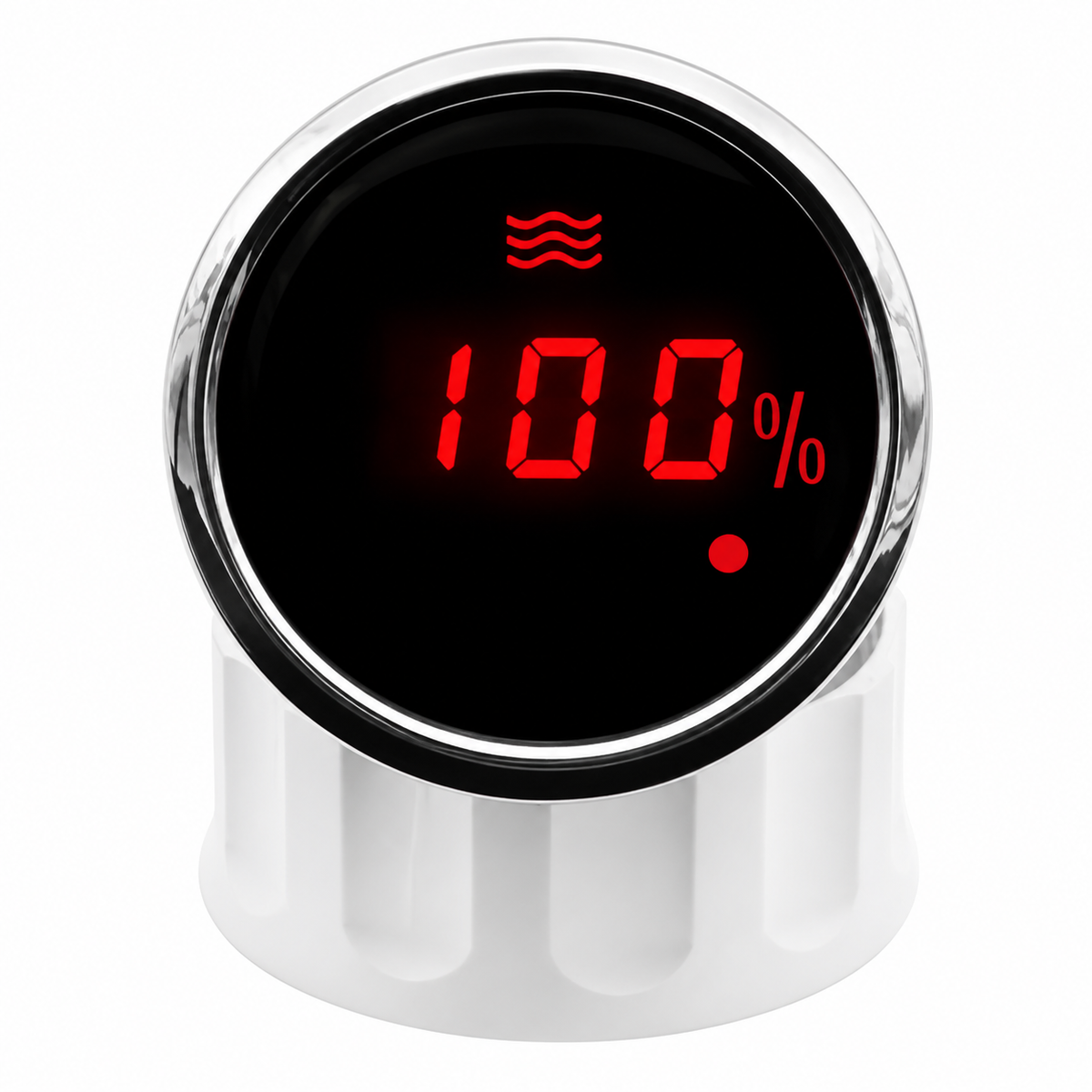

The RV Water Tank Level Gauge Digital LED Water Level Indicator is designed to help campers, trailers, and motorhomes monitor water levels with a digital LED display. It can be a useful replacement or upgrade when an existing gauge is difficult to read, inconsistent, or no longer functioning correctly.
This guide explains how RV water tank gauges work, what to check before installation, how to improve reading accuracy, and how to troubleshoot common level-indicator problems.
Why an RV Water Tank Level Gauge Matters
Water management becomes more important when camping away from full-service hookups. A tank that appears full at the beginning of a trip may empty faster than expected when used for:
-
Drinking and cooking
-
Showering
-
Washing dishes
-
Outdoor kitchen use
-
Toilet flushing
-
Cleaning equipment
-
General campsite maintenance
Without a dependable gauge, many RV owners estimate tank capacity based on usage or wait until the pump begins to lose pressure. Both methods are less convenient than checking a visible level indicator.
A digital LED gauge provides a dedicated reference point. Instead of opening a tank compartment or relying on guesswork, the owner can check the displayed level before using water or planning the next refill.
What Is a Digital RV Water Level Indicator?
A digital RV water level indicator is an electronic display used to show the approximate level of water inside a tank. Depending on the RV’s existing configuration, the display may work with a tank sensor, sender, or level-detection wiring system.
The gauge and the tank sensor perform different jobs:
-
The sensor detects or measures the water level.
-
The wiring carries the signal.
-
The gauge displays the result.
-
The power supply allows the display to operate.
This distinction is important when troubleshooting. If the display is blank, the issue may be electrical. If the display works but shows an incorrect level, the cause may involve the sensor, wiring, tank condition, or calibration.
The product should therefore be considered part of a complete tank-monitoring system rather than an isolated display.
Benefits of an LED RV Tank Gauge
Easier Reading
A digital LED display is generally easier to read than a faded analog scale or a hard-to-see panel, especially when checking the tank inside a dim camper compartment.
Faster Water Planning
A quick level check can help owners decide whether to refill before leaving a campground or begin conserving water during an extended stay.
Better Off-Grid Awareness
When boondocking, the water tank is a limited resource. A working gauge helps campers track consumption and reduce the risk of unexpectedly running out of water.
More Convenient Daily Use
Instead of opening service panels or visually inspecting the tank, the owner can check the indicator from the normal control area, depending on the installation location.
Useful Replacement Function
If the original indicator is damaged, unreadable, or unreliable, a compatible digital gauge may help restore basic water-system visibility.
Symptoms of a Faulty RV Water Level Gauge
An inaccurate reading does not always mean the gauge itself has failed. However, several symptoms indicate that the monitoring system needs inspection.
The Display Remains Blank
A blank display may be caused by:
-
No power supply
-
A blown fuse
-
A disconnected wire
-
A loose terminal
-
A damaged display
-
Incorrect polarity
Start with the simplest checks before removing the tank sensor.
The Gauge Always Shows Full
A constant full reading may result from a stuck sensor, shorted wiring, incorrect connection, or a sensor that is not compatible with the gauge.
The Gauge Always Shows Empty
A constant empty reading may indicate an open circuit, a disconnected sender wire, a failed sensor, or insufficient power to the indicator.
The Reading Changes Suddenly
If the display jumps from empty to full while the RV is parked on level ground, inspect the sensor, wiring, and connection points. If the reading changes while driving, movement inside the tank may be part of the explanation, but repeated extreme changes should still be checked.
The Reading Does Not Match Actual Water Use
A gauge may show a general level rather than a precise volume. Tank shape, sensor position, vehicle angle, internal residue, and wiring condition can all influence the displayed result.
What to Check Before Ordering
Before installing an RV water tank level gauge, compare the existing system with the replacement product.
Identify the Tank Type
Confirm whether you are monitoring:
-
Fresh drinking water
-
General-use water
-
Grey water
-
Black water
-
An auxiliary storage tank
Different tanks may use different sensors, wiring arrangements, and display requirements.
Inspect the Existing Gauge
Take a photograph of the current display and wiring before removal. Record the number of wires, connector style, mounting position, and visible labels.
Check the Sensor Arrangement
A new display may not automatically work with every existing sensor. Confirm that the gauge is compatible with the tank’s current sensing method before ordering.
Review Available Mounting Space
Measure the opening and surrounding panel area. Make sure there is enough room for the display, wiring, connectors, and future service access.
Confirm the Electrical Supply
Check the RV’s low-voltage supply and verify the required connection according to the product instructions. Never assume that a similar-looking display uses the same voltage or wiring arrangement as the original.
For a wider overview of tank fitment and connection planning, the Black Series water tank fitment guide provides useful information about tank types, dimensions, fittings, and sender locations.
Installation Planning Tips
A clean installation begins with preparation.
Turn Off Power
Disconnect the relevant 12V circuit before working on the gauge or its wiring. If the circuit is connected to a larger control panel, follow the RV manufacturer’s shutdown procedure.
Relieve Water-System Pressure
If the installation involves access to the tank sensor or plumbing area, turn off the water pump and relieve pressure before beginning work.
Label Existing Wires
Use labels or masking tape to identify each wire before disconnecting it. Note the power, ground, signal, and sensor connections according to the original layout.
Photograph the Original Installation
Take close-up photographs of the connectors and mounting position. This is helpful if the installation is interrupted or the gauge must be compared with the original unit.
Keep Wiring Away From Damage
Route wires away from:
-
Sharp metal edges
-
Hot appliances
-
Moving suspension parts
-
Wet areas
-
Loose storage items
-
Locations where they may be pinched
Use suitable protection and secure the wiring so vibration does not pull on the terminals.
Step-by-Step Installation Approach
The exact installation method depends on the RV and the gauge design, but the following sequence provides a practical framework.
1. Remove the Existing Indicator
Carefully remove the old gauge or panel without damaging the surrounding trim. Keep the original screws and note the mounting orientation.
2. Inspect the Wiring
Look for corrosion, broken insulation, loose terminals, crushed wires, and signs of previous repairs. Replace damaged wiring rather than connecting a new gauge to an unreliable circuit.
3. Compare Connections
Compare the replacement gauge with the old unit. Confirm the connector arrangement and identify each connection before making changes.
4. Install the New Gauge
Secure the indicator in the prepared opening. Avoid overtightening screws, especially when mounting into plastic or thin panel material.
5. Connect the Wiring
Make each connection carefully and follow the manufacturer’s wiring instructions. Protect exposed terminals from moisture and accidental contact.
6. Restore Power
Reconnect the relevant circuit and check whether the display activates normally.
7. Test the Reading
Test the gauge at several known tank levels if possible. Begin with a low level, then add water gradually and observe whether the display responds consistently.
How to Improve Reading Accuracy
A tank gauge is a monitoring tool, not always a laboratory-accurate measuring device. Several conditions can affect readings.
Park on Level Ground
A tank may show a different level when the trailer is parked on a slope. For a more useful comparison, check the gauge on relatively level ground.
Allow the Water to Settle
After filling or moving the RV, wait briefly before recording the level. Water movement inside the tank can temporarily affect the sensor.
Keep the Tank Clean
Residue, mineral deposits, or sediment may affect sensor performance. Follow the RV manufacturer’s cleaning and sanitizing recommendations.
Check the Sensor Location
The sensor position determines what the gauge interprets as empty, partial, or full. A sensor installed incorrectly may produce readings that do not match the actual tank condition.
Use Multiple Checks
Compare the gauge with water consumption, pump behavior, and refill volume. If the display consistently disagrees with all other evidence, inspect the sensor and wiring.
Common Troubleshooting Steps
Display Has No Power
Check the fuse, circuit switch, ground connection, and power wire. Use the manufacturer’s instructions and an appropriate electrical testing method.
Display Works but Shows the Wrong Level
Inspect the sensor connection, signal wire, tank sensor, and compatibility between the display and existing system.
Reading Is Unstable
Check for loose wiring, corrosion, poor grounding, tank movement, or a sensor affected by residue. Also test the gauge while the RV is parked on level ground.
Gauge Works Only Sometimes
Intermittent operation often points to a loose connector, damaged wire, weak ground, or moisture entering the connection.
Tank Reads Empty After Installation
Confirm that the sensor wire is connected correctly and that the gauge is receiving the expected signal. Do not assume the tank is actually empty until the system has been checked.
Maintaining an RV Water Level Gauge
Digital gauges require relatively little maintenance, but the surrounding system still needs attention.
-
Inspect wiring at the beginning of the camping season.
-
Check terminals for corrosion.
-
Keep the display area dry.
-
Avoid storing heavy items against the panel.
-
Check the tank sensor when cleaning the water system.
-
Confirm readings after winterization and de-winterization.
-
Recheck connections after rough off-road travel.
-
Replace damaged wires or connectors promptly.
The RV maintenance checklist and DIY repair guide can help include tank monitoring in a broader seasonal inspection routine.
RV Water Tank Gauge vs Manual Estimation
Manual estimation can be useful as a backup, but it has limitations.
| Method | Advantages | Limitations |
|---|---|---|
| Digital LED gauge | Quick and convenient | Requires compatible wiring and sensor |
| Water-use tracking | Helpful for conservation | Depends on accurate usage estimates |
| Refill volume | Can confirm approximate capacity | Requires access to a measured water source |
| Visual tank inspection | Direct observation | Often difficult and inconvenient |
| Pump behavior | Useful as a warning sign | Usually indicates a low level only after the problem begins |
The best approach is to use the gauge together with sensible water planning. A display provides information, while usage records and refill habits help confirm how the tank performs in real camping conditions.
Frequently Asked Questions
What does an RV water tank level gauge do?
It displays the approximate level of water in an RV tank through a digital LED indicator connected to a compatible sensing system.
Can I use this gauge with any RV water tank?
Compatibility should be confirmed before ordering. Check the tank type, sensor arrangement, wiring, power requirements, and available mounting space.
Why does my RV water gauge always show full?
Possible causes include a stuck or shorted sensor, incorrect wiring, a failed sender, or an incompatible display.
Why does the display remain blank?
Check the power supply, fuse, ground, connectors, and wiring. If these are correct, the display itself may require further testing.
Is a digital gauge more accurate than an analog gauge?
A digital display may be easier to read, but accuracy still depends on the sensor, installation, tank shape, wiring, and calibration.
Should I install the gauge myself?
Owners with basic 12V wiring experience may be able to complete the installation, provided they follow the instructions carefully. Professional assistance is recommended when the wiring is unclear or the tank sensor is difficult to access.
Can a water tank gauge prevent the RV from running out of water?
It cannot prevent water consumption, but it can provide earlier information so the owner can refill or conserve water before the tank is empty.
Final Takeaway
A dependable RV water tank level gauge gives campers better visibility into one of the most important onboard resources. The digital LED indicator can make routine checks faster and help owners plan refills, conserve water, and identify problems earlier.
Before installation, confirm the tank type, sensor arrangement, wiring, power supply, and mounting space. After installation, test the display at different water levels, protect the connections, and include the gauge in regular RV maintenance.
For campers, trailers, and motorhomes that need a clearer view of onboard water levels, the RV Water Tank Level Gauge Digital LED Water Level Indicator is a practical monitoring component to consider.
