Jackery SolarSaga portable solar panels for Explorer and HomePower stations, from the 40W SolarSaga 40 Air to the 500W SolarSaga 500 X, plus the connectors, extension cables and adapters that join them. Every panel ships from our warehouse in Upland, California, free to the lower 48 states, with Jackery's warranty. Not every panel suits every station, so check the two tables below before you buy, or see the full Jackery range.
Which SolarSaga panel fits which Jackery
| Panel |
Rated output |
Weight |
Stations Jackery pairs it with |
| SolarSaga 40 Air |
40W |
0.9 kg |
Explorer 300 v2 and 300D (both take up to 100W of solar) |
| SolarSaga 100 Air |
100W |
3.2 kg |
Explorer 1500 v2 (two; four through a solar panel connector). Jackery lists it as not compatible with the Explorer 300 v2, 300, 300D or 240D |
| SolarSaga 100 Prime |
100W |
— |
Shown with the Explorer 1500 Ultra. Anderson output with a DC8020 adapter in the box; older Explorers (1000, 550, 500, 300, 240, 160) also need a DC8020 to DC7909 adapter |
| SolarSaga 100 Light |
100W, flexible |
2.05 kg |
Bends up to 221 degrees for curved roofs; plugs into a compatible Jackery station with the included cable |
| SolarSaga 200W |
200W |
— |
One per port on the Explorer 1000 v2 and 2000 v2 (400W limit); two on the HomePower 2000 Plus v2 or 3600 Plus; three per low-voltage port on the Explorer 5000 Plus. DC8020 to DC7909 adapter included for older stations |
| SolarSaga 500 X |
500W (6 x 85W) |
about 22 lb |
One per low-voltage port on the Explorer 5000 Plus; Jackery also sells it with the HomePower 2000 Plus v2, 3000, 3600 Plus and 3600 Pro Max. Don't connect 500 X panels in series |
How much solar each station accepts
Jackery's own maximum solar input per station. Stay under it; a station ignores panel wattage above its limit.
| Station |
Capacity |
Max solar input |
Panel setups Jackery shows or sells |
| Explorer 300D |
288Wh |
100W |
SolarSaga 40 Air. Not the 100 Air |
| Explorer 300 v2 |
288Wh |
100W (USB-C input) |
SolarSaga 40 Air. Not the 100 Air |
| Explorer 1000 v2 |
1,070Wh |
400W (2 DC8020 ports) |
One SolarSaga 200W; two, one per port, get close to the limit |
| HomePower 1000 Plus v2 |
1,024Wh |
up to 400W |
One or two SolarSaga 200W |
| Explorer 1500 v2 |
1,536Wh |
400W (2 DC8020 ports) |
Two 100 Air, or four 100 Air with the connector |
| Explorer 2000 v2 |
2,042Wh |
400W (2 DC8020 ports) |
One 100W or 200W panel per port, or two 100W per port with the connector |
| Explorer 1500 Ultra |
1,536Wh |
800W (2 DC8020 ports) |
At most two panels per port |
| HomePower 2000 Plus v2 |
2,048Wh |
800W |
One SolarSaga 500 X, or two 200W |
| HomePower 3000 |
3,072Wh |
1,000W (2 DC8020 ports) |
SolarSaga 200W or 500 X |
| HomePower 3600 Plus |
3,584Wh |
1,000W (2 DC8020 ports) |
One 500 X, or two 200W |
| Explorer 5000 Plus |
5,040Wh |
Low-voltage ports 1,200W; up to 4,000W with the high-voltage input |
Each low-voltage port: one 500 X or three 200W |
Planning rule we use: a panel puts back about its rated watts x 4 to 5 sun hours x 0.75 per day, so a 200W panel refills roughly 600 to 750Wh on a clear day. Full working through in How many SolarSaga panels can my Jackery take?.
Jackery solar panel questions
Can I use a non-Jackery solar panel with a Jackery?
Current stations take a DC8020 input and most third-party panels end in MC4, so you need an MC4 to DC8020 cable and the panel's open-circuit voltage must stay inside the station's input range. Jackery's own panels come with the right cable. If you already own panels, send us the model and we will check it.
Can I chain two SolarSaga panels together?

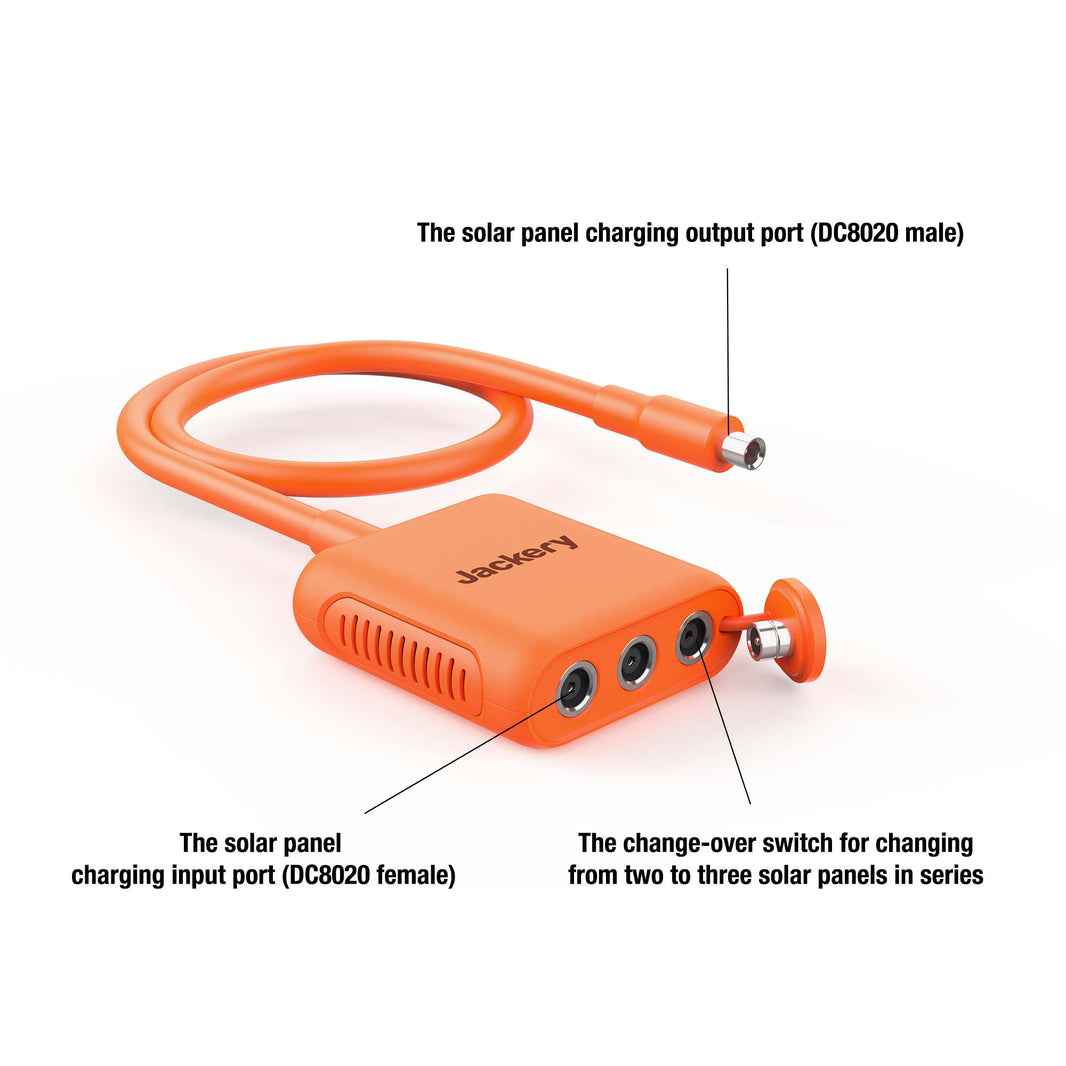

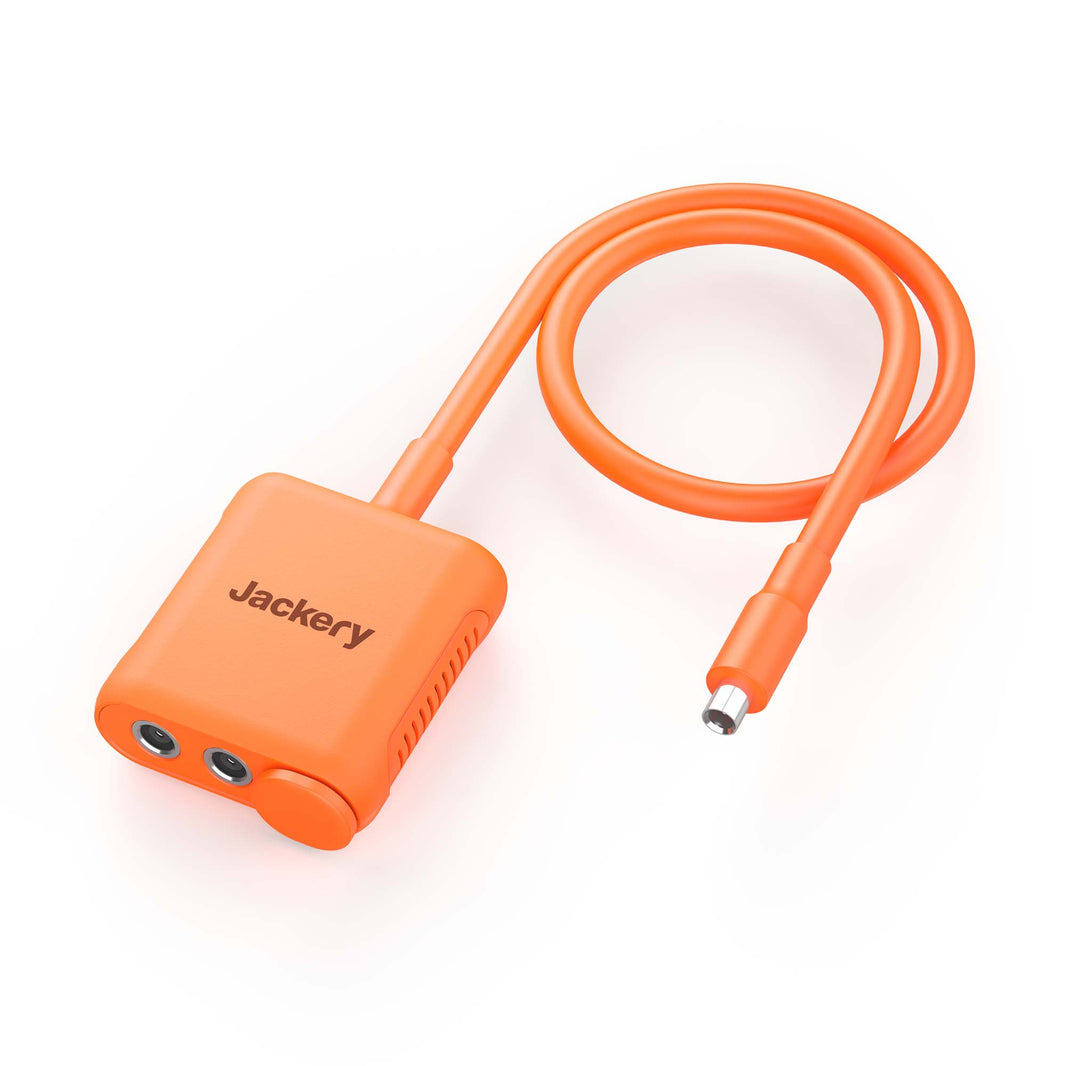

Only through the Jackery Solar Panel Connector, which joins two or three panels into one station input, and only on the stations it lists. Never put SolarSaga 500 X panels in series.
Which panel is right for an RV?
For a van or small trailer with an Explorer 1000 v2 or 2000 v2, one SolarSaga 200W per port. For a 30A trailer running off a HomePower 3600 Plus, a single SolarSaga 500 X refills it fastest. For an Explorer 5000 Plus, one 500 X per low-voltage port.
Do the panels work in the rain?
The SolarSaga 40 Air, 100 Air and 100 Light are IP68 rated; the 200W and 500 X are built for outdoor use but not for permanent installation. Fold them away in storms and never leave a 500 X array up in high wind.
Found it cheaper? We'll beat it. See the Jackery RV power kits for station-and-panel sets loaded into your cart in one click, or Jackery expansion batteries if you want more storage instead of more charging.
