Victron SmartShunt Battery Monitor, 500A, 1000A and 2000A
- Regular price
- $72.62
- Sale price
- $72.62
- Regular price
-
$118.00
Victron list $118.00 · you save $45.38
Add a protection plan
Provided and serviced by Mulberry. What's covered
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability
Free Shipping (ships from Upland in 3–7 days) & Free 30-Day Returns — prepaid return label, no restocking fee. Details
The Victron SmartShunt is an all-in-one battery monitor with built-in Bluetooth. It installs on the battery negative and measures every amp flowing in and out, giving you a true state-of-charge percentage, time-remaining estimate, and full history in the free VictronConnect app — no separate display required.
Specifications
- Brand: Victron Energy
- Part number: Varies by option
- Type: Shunt-based battery monitor, built-in Bluetooth
- Shunt ratings: 300 A, 500 A, 1000 A or 2000 A
- Enclosure: IP21 standard; IP65 versions available
- Battery types: LiFePO4, AGM, gel, flooded lead-acid
- Battery capacity setting: 1–9,999 Ah
- Second input: Starter battery, midpoint voltage or temperature (optional sensor)
- Communication: VE.Direct port (cable not included)
Key Features
- Accurate state of charge — shunt-based current counting, not a voltage guess
- Built-in Bluetooth — monitor from your phone with VictronConnect; no display or extra dongle needed
- Works with any chemistry — LiFePO4 lithium, AGM, gel, and flooded lead-acid
- Second input — monitor starter battery voltage, midpoint voltage, or battery temperature (with optional sensor)
- VE.Direct port — connect to a Cerbo GX for system display and remote VRM monitoring
Which size?
The 500A model covers most RV and camper systems, including 3000VA inverter setups. Choose 1000A or 2000A only if your peak system current exceeds the rating.
Deciding on a battery monitor? Read our Victron SmartShunt review.

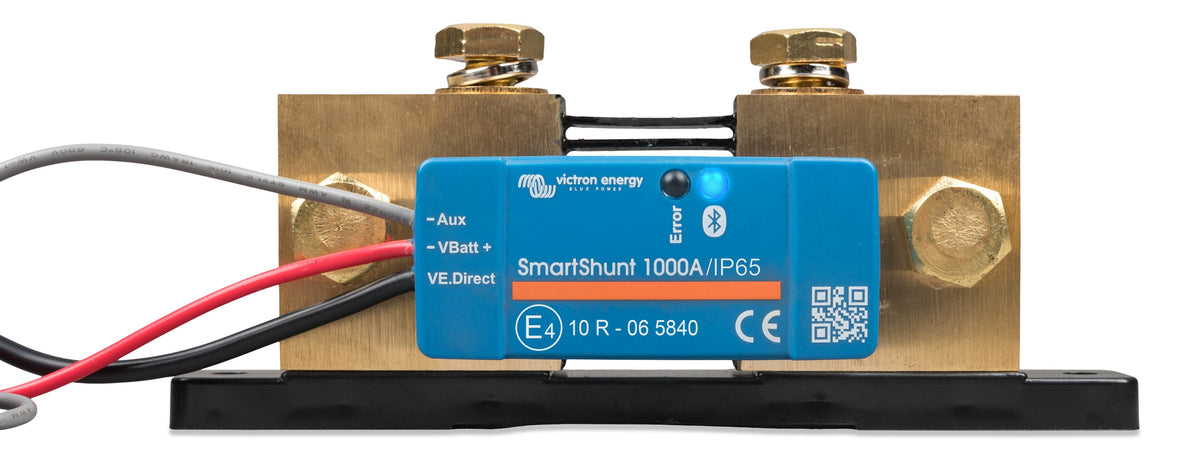

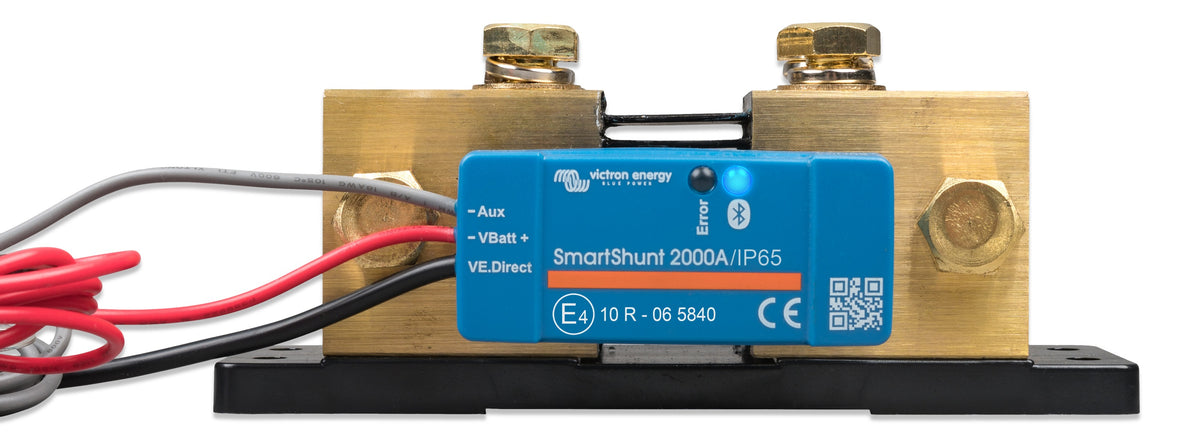

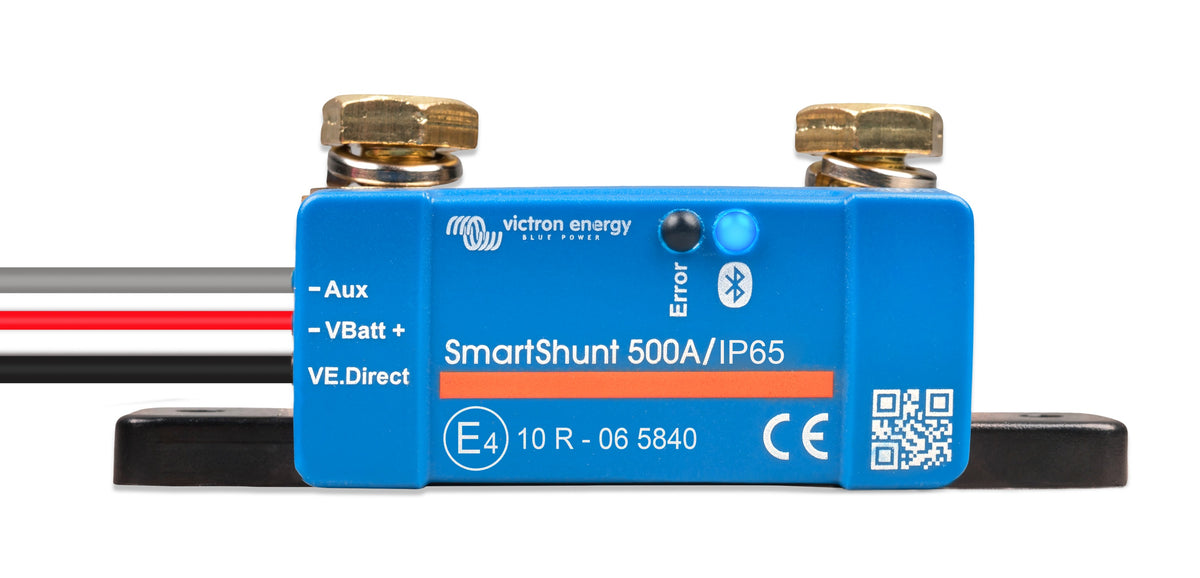

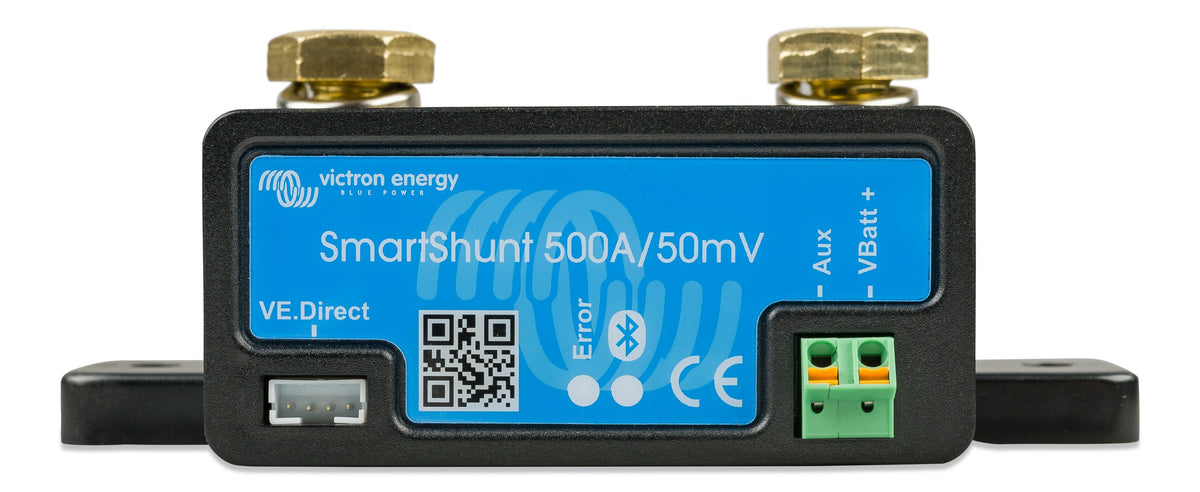

Victron part numbers on this page: SmartShunt 500A/50mV SHU050150050 · SmartShunt 1000A/50mV SHU050210050 · SmartShunt 2000A/50mV SHU050220050. Searching for a specific part number? Use our Victron part number lookup, or ask us and we will confirm the right one for your system.
Which size you need
- Size it to the current through it, not to battery Ah. The battery capacity is a setting (1–9,999 Ah).
- A 12 V MultiPlus-II 12/3000 draws roughly 215 A continuous by our estimate (2,400 W at 93% efficiency), so 500 A suits most single-inverter RVs. Go to 1000 A for a 12/4000 or two inverters.
- Larger shunts have a larger zero offset: 10 mA (300/500 A), 20 mA (1000 A), 40 mA (2000 A).
- The standard version is IP21 (dry locations only). Choose IP65 where it could get wet.
What you also need
- A VE.Direct cable to connect a GX device (not included).
Full guide: SmartShunt 300A vs 500A vs 1000A vs 2000A.
