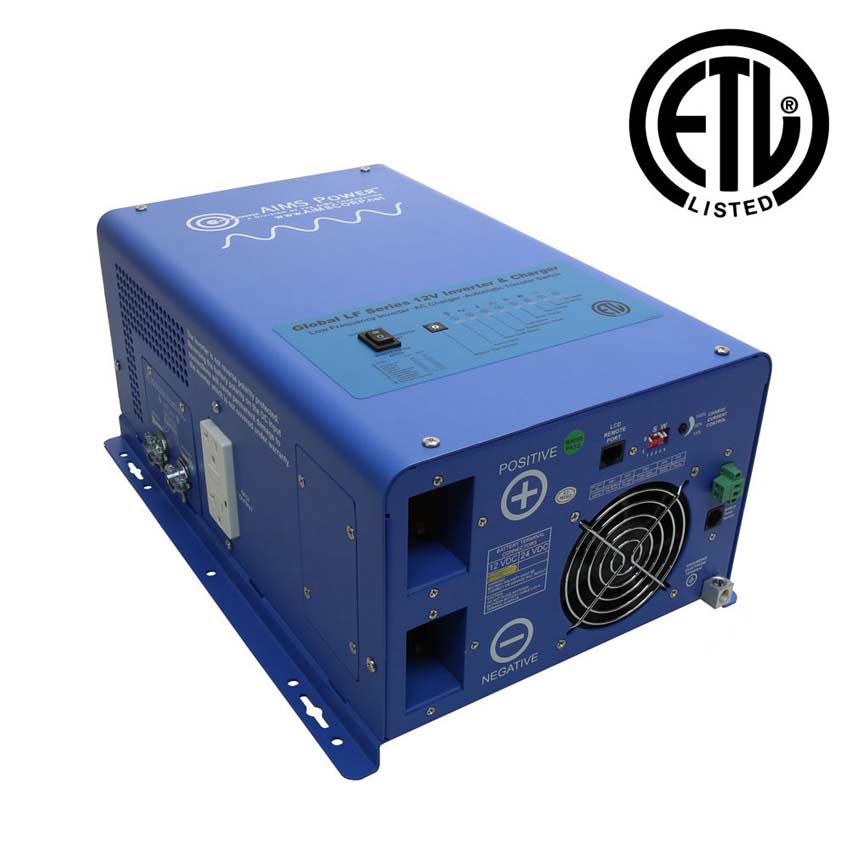

AIMS Power 3000W Pure Sine Inverter Charger 12V with 30A/50A Bypass
- Regular price
- $1,406.00
- Sale price
- $1,406.00
- Regular price
-
$1,565.00
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability
Run demanding tools and electronics anywhere with a rugged 3000W, 25A pure sine inverter charger delivering seamless backup power.
The AIMS Power 3000 Watt Pure Sine Inverter Charger combines an inverter, battery charger, and automatic 30A or 50A transfer switch into one heavy duty system designed for reliable off-grid or backup power. Built with a low frequency transformer design and engineered for high surge capability, it provides stable power for sensitive electronics while also supporting demanding inductive loads such as motors and tools.
This ETL listed inverter charger (UL 458) delivers up to 3000 watts continuous power with a 9000 watt surge for 20 seconds, making it ideal for RVs, food trucks, work trucks, boats, and house backup with the 50A transfer. With 92% peak conversion efficiency and a sophisticated multi-stage charging system capable of 100 amps, the unit helps keep batteries charged while reducing unnecessary AC energy draw.
Designed for both the Do It Yourselfer and professional installers, this system simplifies mobile and backup power by combining critical components into one rugged device. Conformal coated for high humidity environments.
- Users: Pure sine output safely powers electronics, while the 3-in-1 design powers larger appliances, tools, and onboard systems reliably. Supports multiple appliances at the same time.

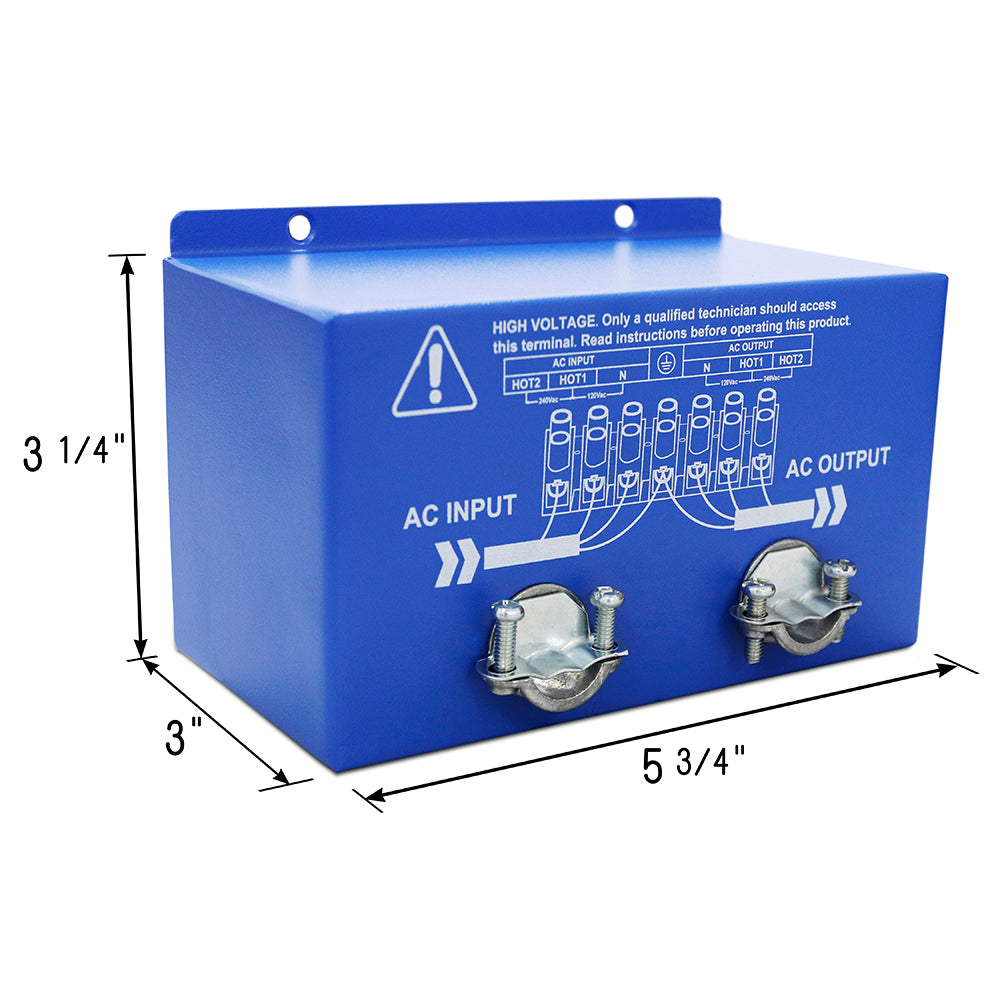

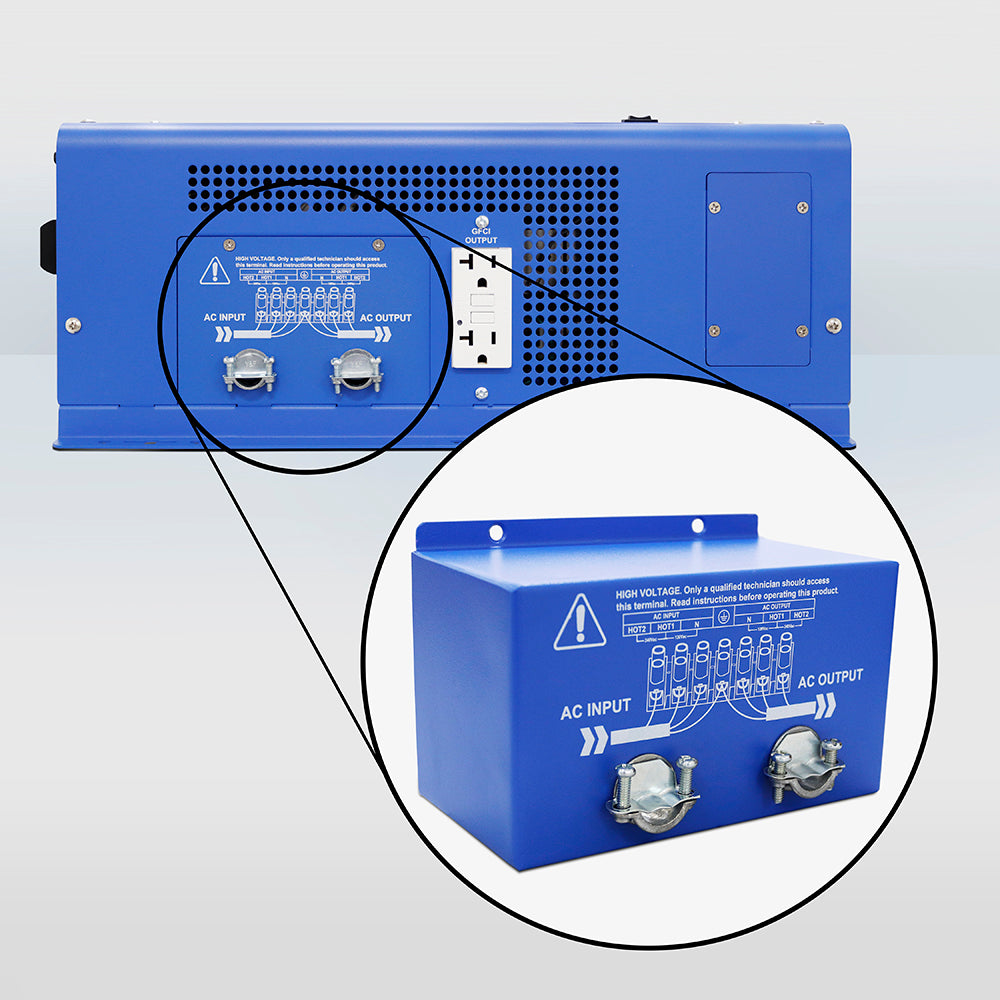

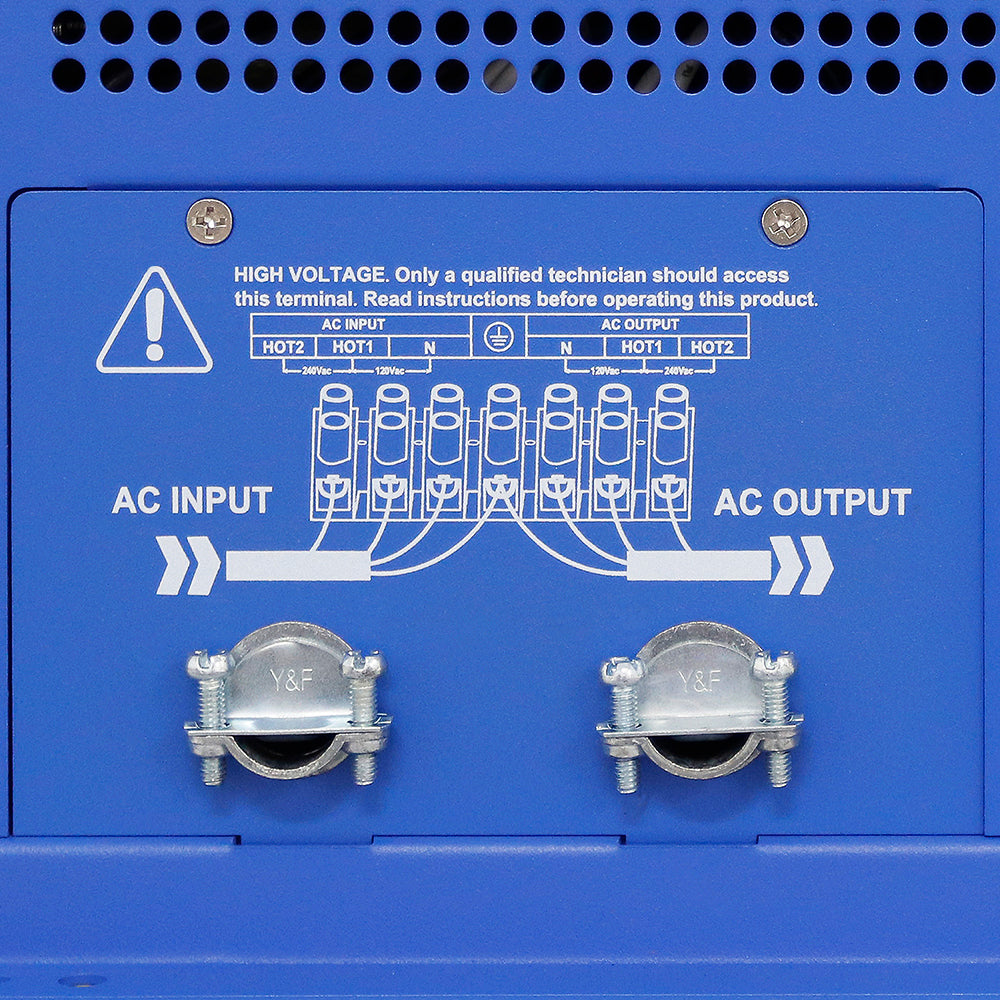

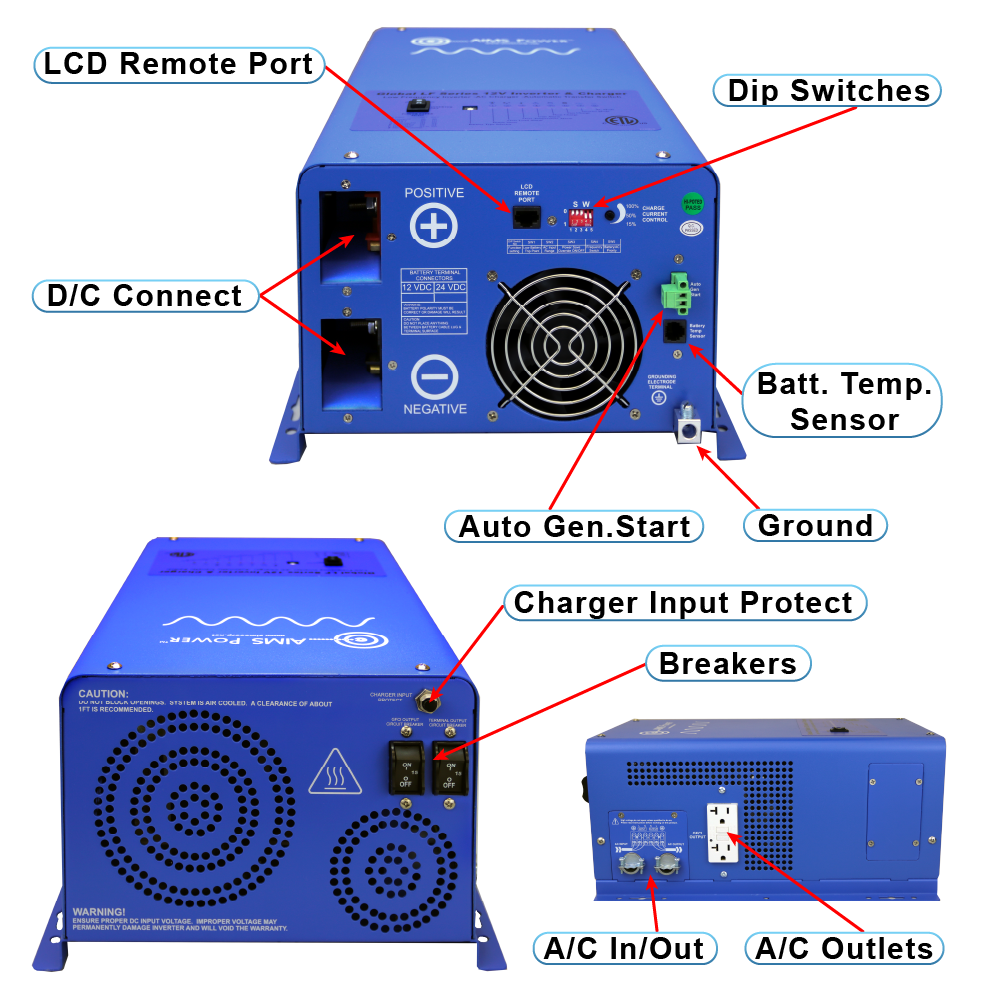

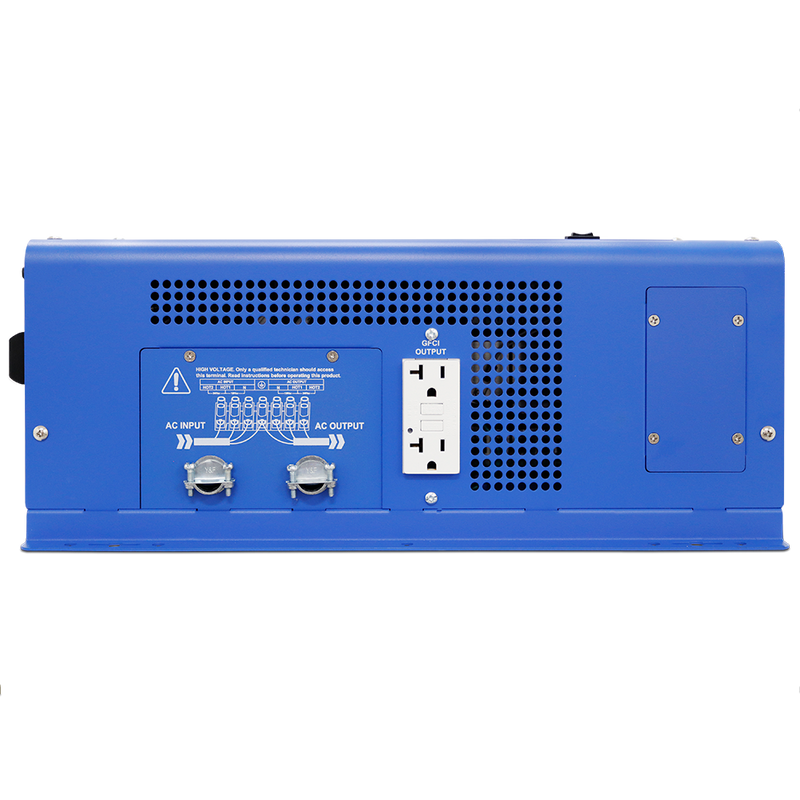

- Installers: AC direct connect terminal block, 120/240V, 30A/50A transfer capability, and DIP switch battery priority configuration simplify integration into RV or off-grid systems.
Specifications
- Built-in charger: 100A
- AC output: 120 VAC
- Battery wake-up: Yes
- Bluetooth: Yes, with dongle BT-AIMS-PRO
- Battery types charged: AGM, GEL, Lithium, Lead, User Defined
- Hardwire terminal block: Yes
- DC input: 12 VDC
- Continuous / surge AC amps: 33.33 A | 100 A
- Output type: Pure Sine Inverter Charger + Transfer Low Frequency
- Continuous / surge output: 3000W | 9000W

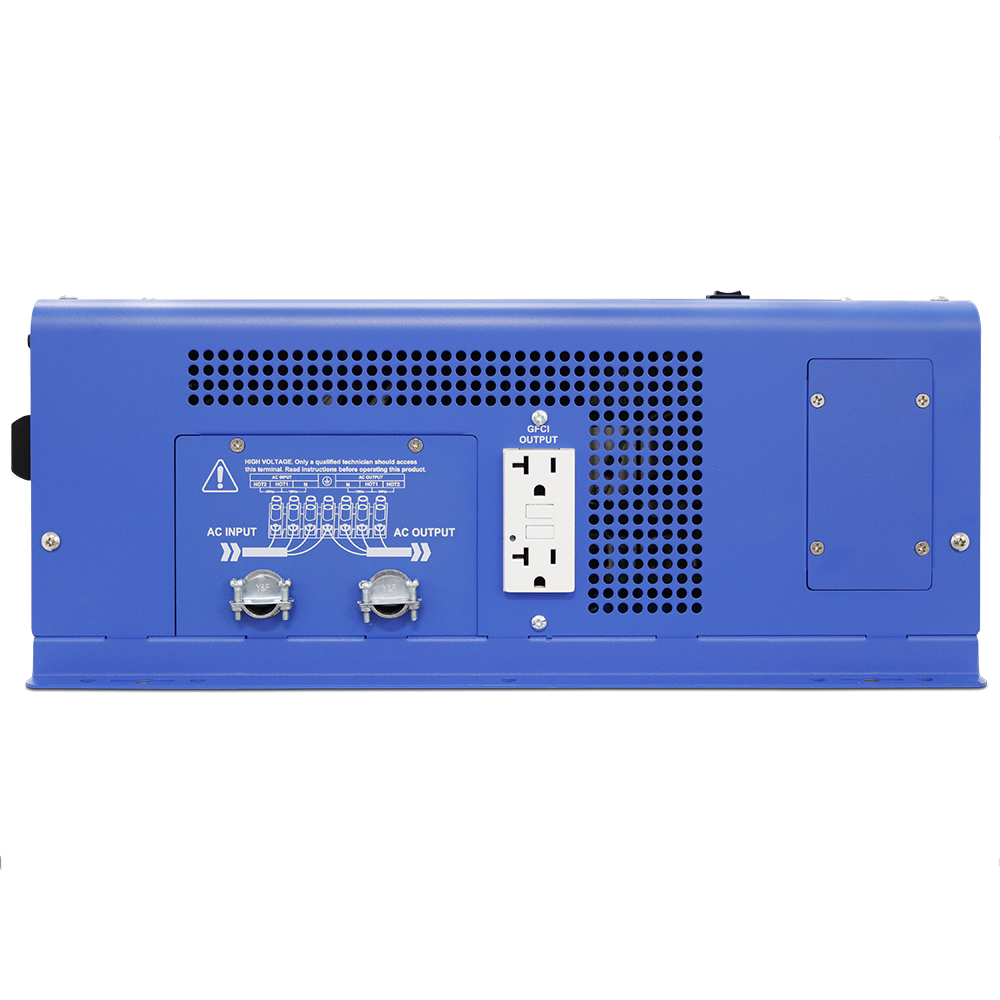

- Outlets: 2 Plus Hardwire
- Typical loads: Compressors, Pumps, Motors / Heavy Duty Multiple Devices High Demand / Large Variable Speed Motors / Appliances with Display
- Remote options: Bluetooth Dongle BT-AIMS-PRO / Ignition Switch REMLFLCDIGN / LCD & On/Off REMOTELF
- Third-party certification: Yes
- Warranty: 3 Year
- Transfer switch: Yes - 50 Amp
- AC input: 120V AC / 240V AC
- Weight: 69 lb
- AIMS Power model: PICOGLF3K12050BY
Genuine AIMS Power, backed by the AIMS Power warranty. Ships from our warehouse in Upland, California. Questions about sizing an inverter, battery or solar setup for your RV or van? Ask us before you order.
Who this bypass model is for
- The 50A PICOGLF: the one 12V AIMS inverter charger with a 120V/240V input and a 50A transfer switch, ETL listed to UL 458. Built for coaches with 50A service or a larger generator.
- Same core as the 3000W V/VR: 3000W continuous, 9000W surge, 100A charger with a lithium profile and wake-up.
- If you have a 30A cord only, the standard 3000W V is the simpler fit.
Guide: AIMS PICOGLF series explained.
