Jackery HomePower 3600 Pro Max Power Station 3,584Wh 240V
- Regular price
- $1,788.00
- Sale price
- $1,788.00
- Regular price
-
$2,099.00
Will it fit my RV?
We don’t list this part for specific RV brands. Compare the dimensions with the part you’re replacing before ordering.
Protect your purchase
Breakdowns and accidental damage, no deductible. What's covered
- Breakdowns from normal use for the whole term, even after the factory warranty ends
- Drops, spills and cracks from everyday handling
- Batteries that won't charge, hold a charge or fall below 70% capacity
- Repair, replacement or reimbursement. Cancel within 30 days for a full refund
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability
Shipping: ships from Upland in 3–7 days to the lower 48 states only (no Hawaii, Alaska or Puerto Rico). Free shipping. Warranty and support are handled by Jackery directly.

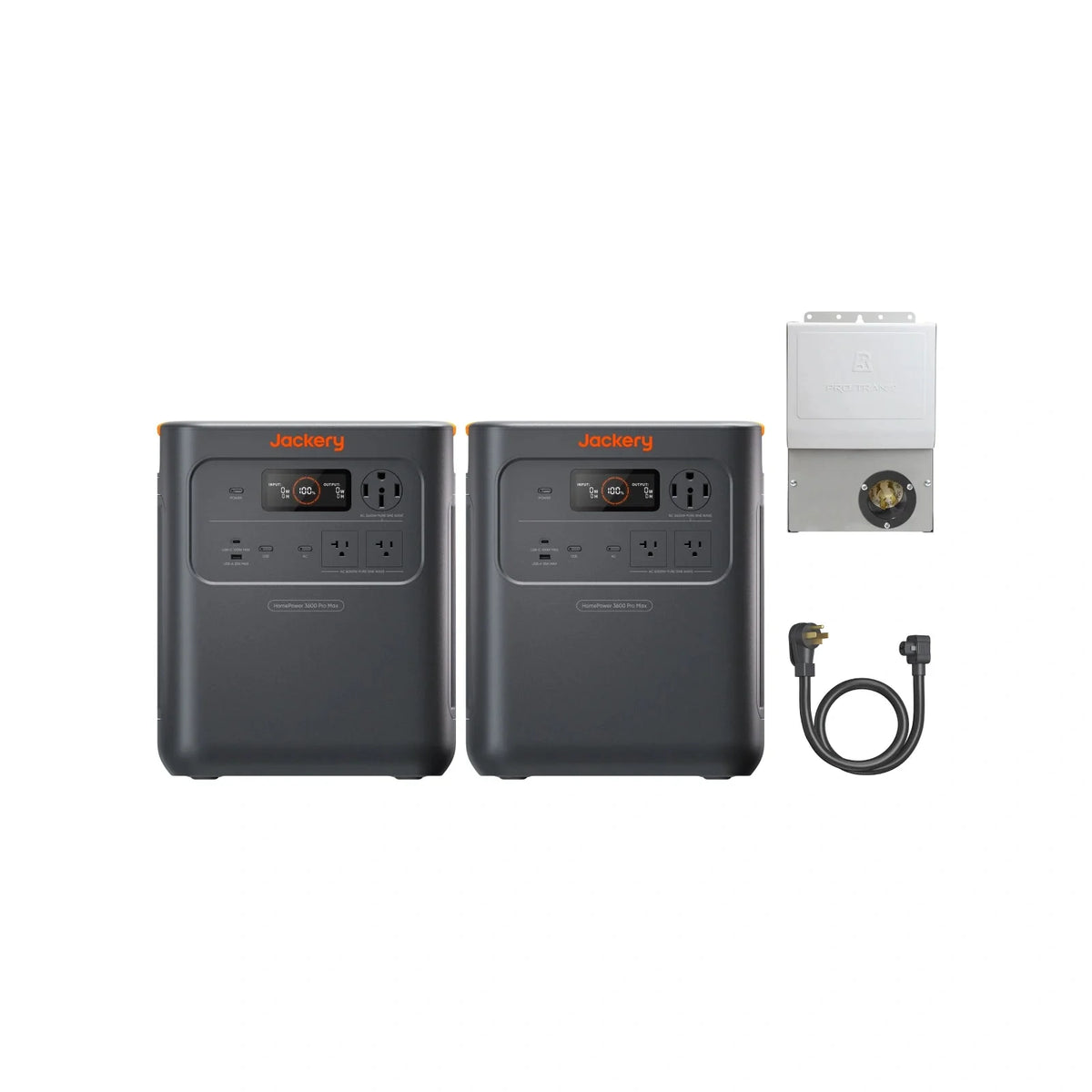

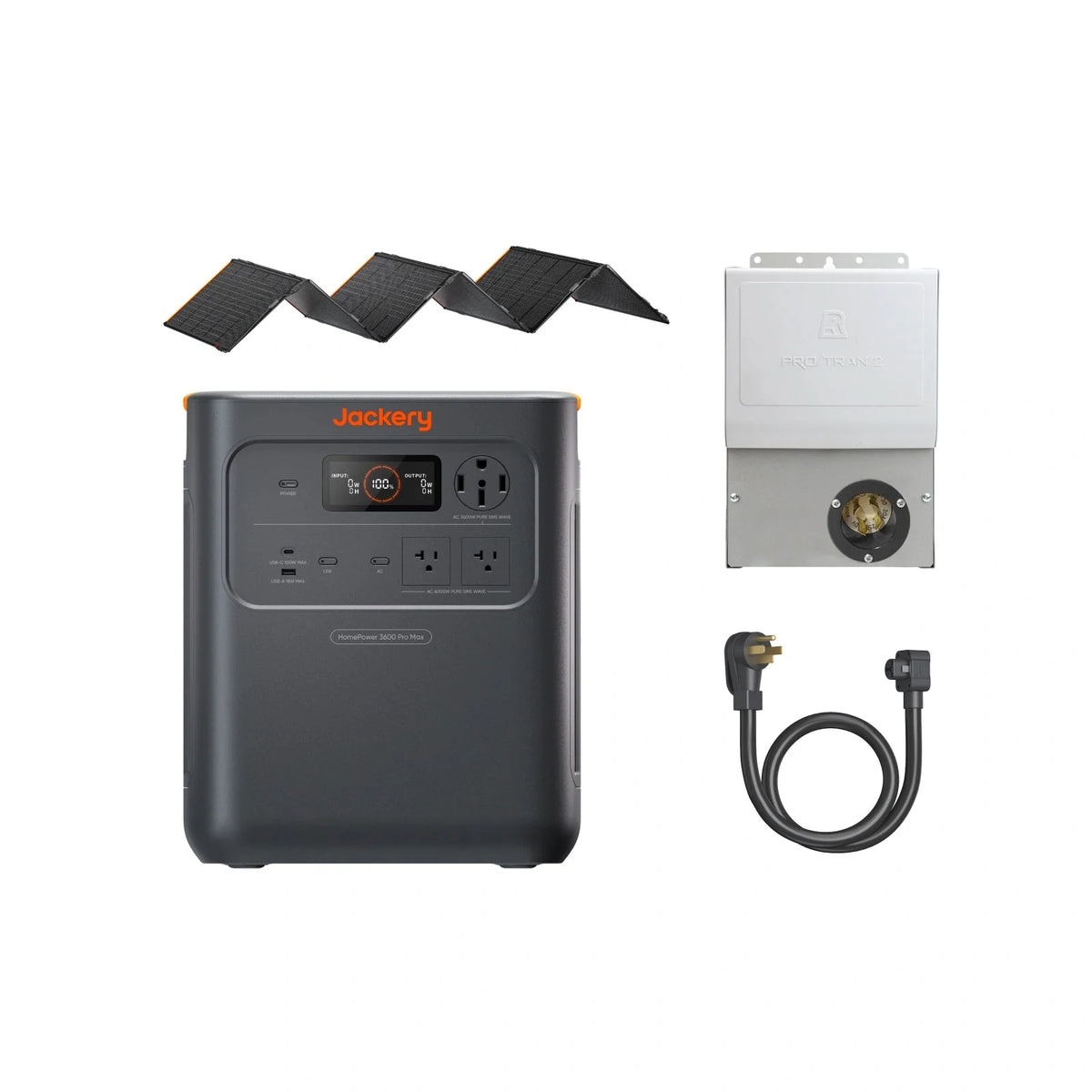

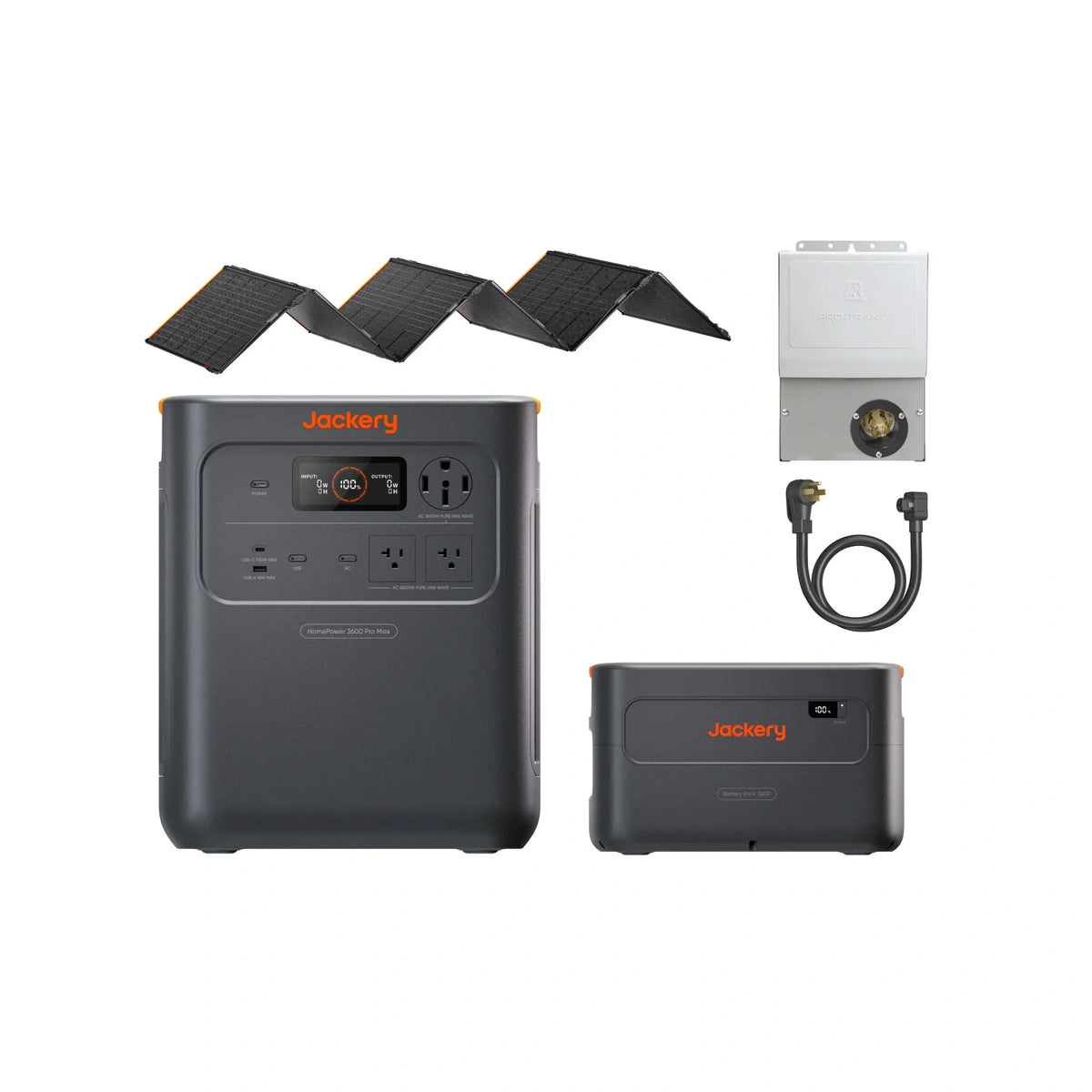

Also sold as a set: the HomePower 3600 Pro Max with matched Jackery solar panels, expansion batteries or transfer gear in one order. See the HomePower 3600 Pro Max Solar Generator bundles →

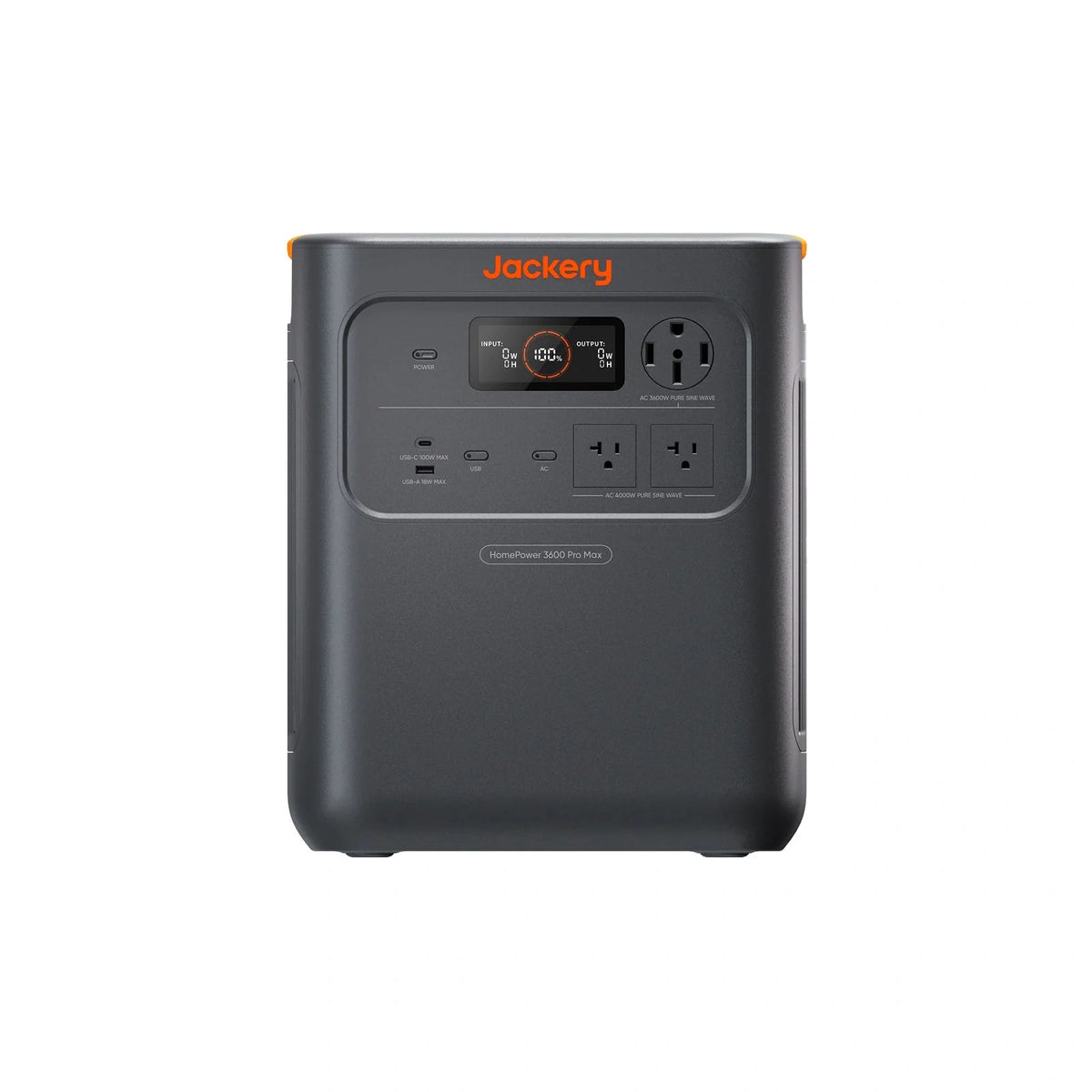

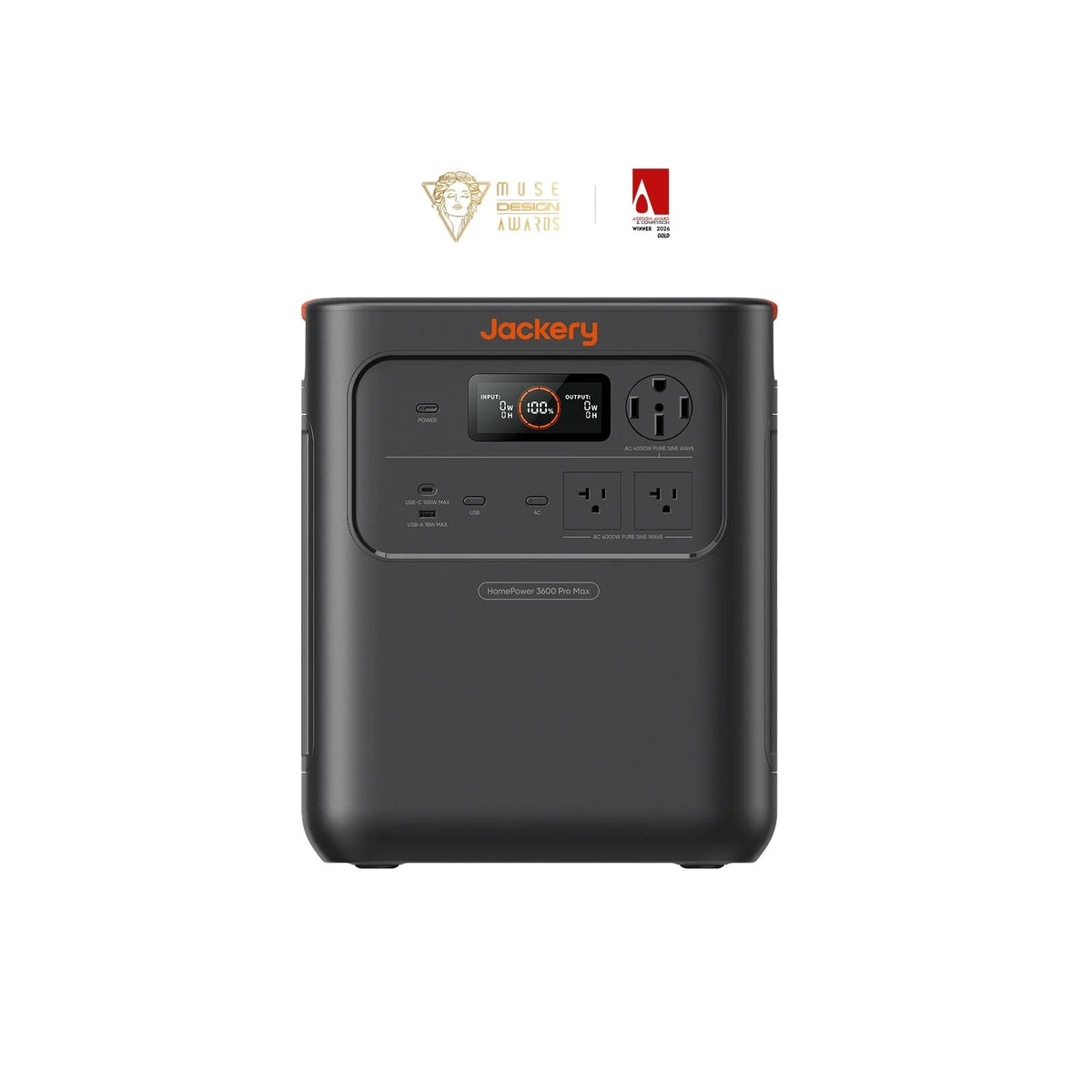

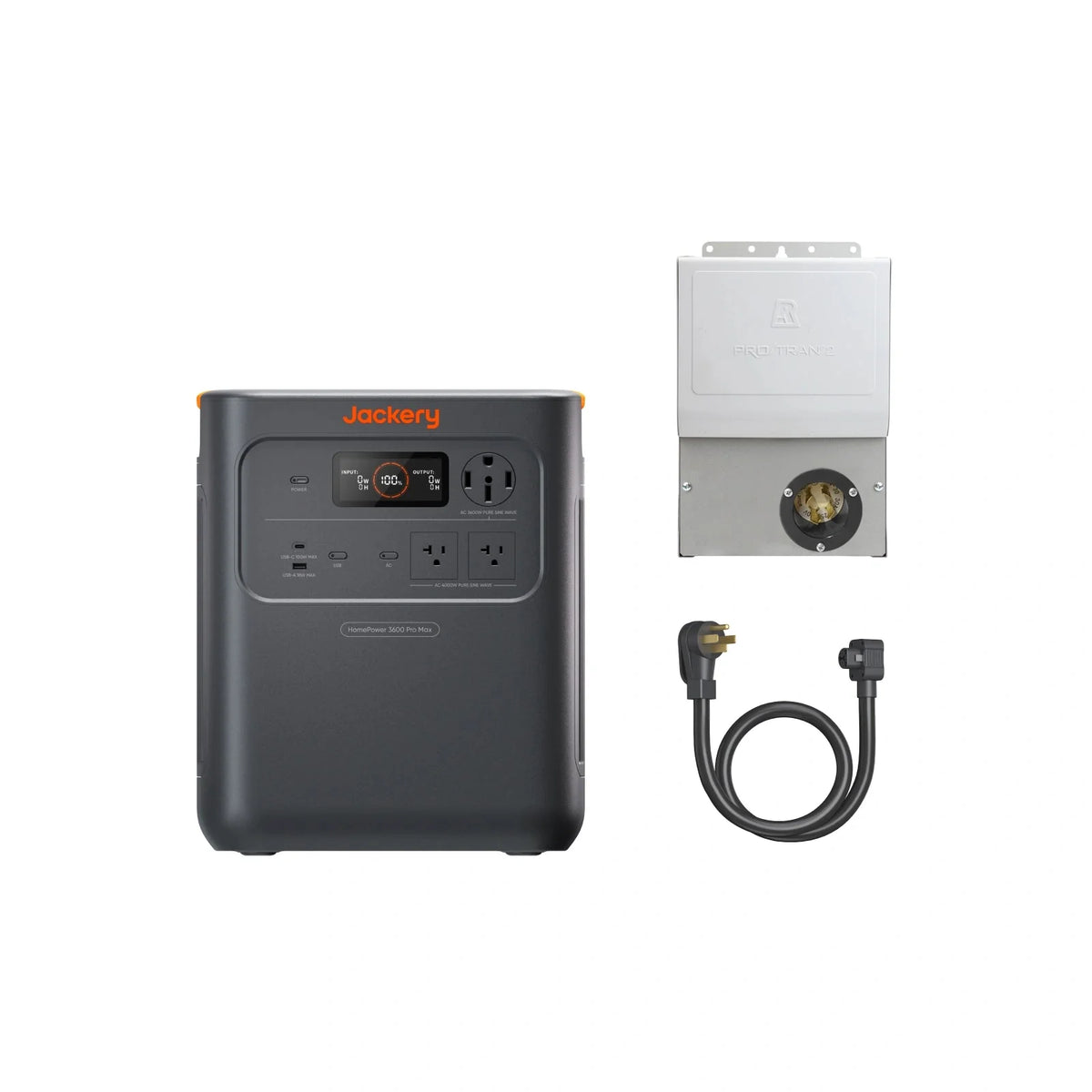

The Jackery HomePower 3600 Pro Max is the current flagship of the 3.6kWh class. A single unit delivers 4,000W at 240V or 2,000W at 120V, expands to 21.5kWh with Battery Pack 3600 units and to 43kWh with two units in parallel, and can run 240V and 120V loads at the same time. Paired with a manual transfer switch it becomes a whole-home or whole-camper backup with a sub-10 ms UPS handover.
EV-grade LFP cells are rated for 6,000 cycles (16+ years), the unit is UL 9540 certified with 5VA-grade fireproofing and an EPO emergency stop, and it runs under 30 dB. Jackery lists 8 ways to recharge, including from a gas generator. The 40A charging cable and manual transfer switches are listed separately.
Specifications

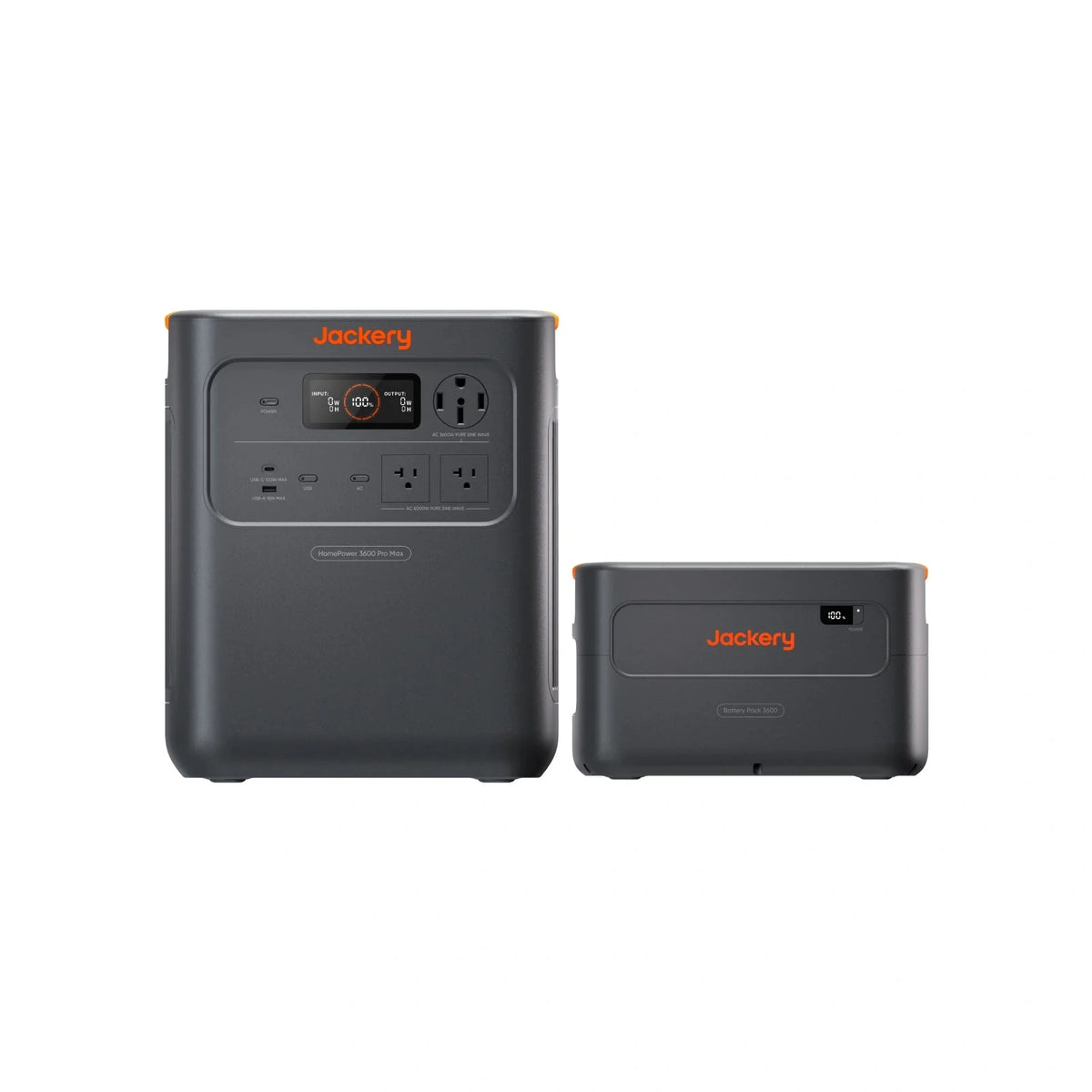

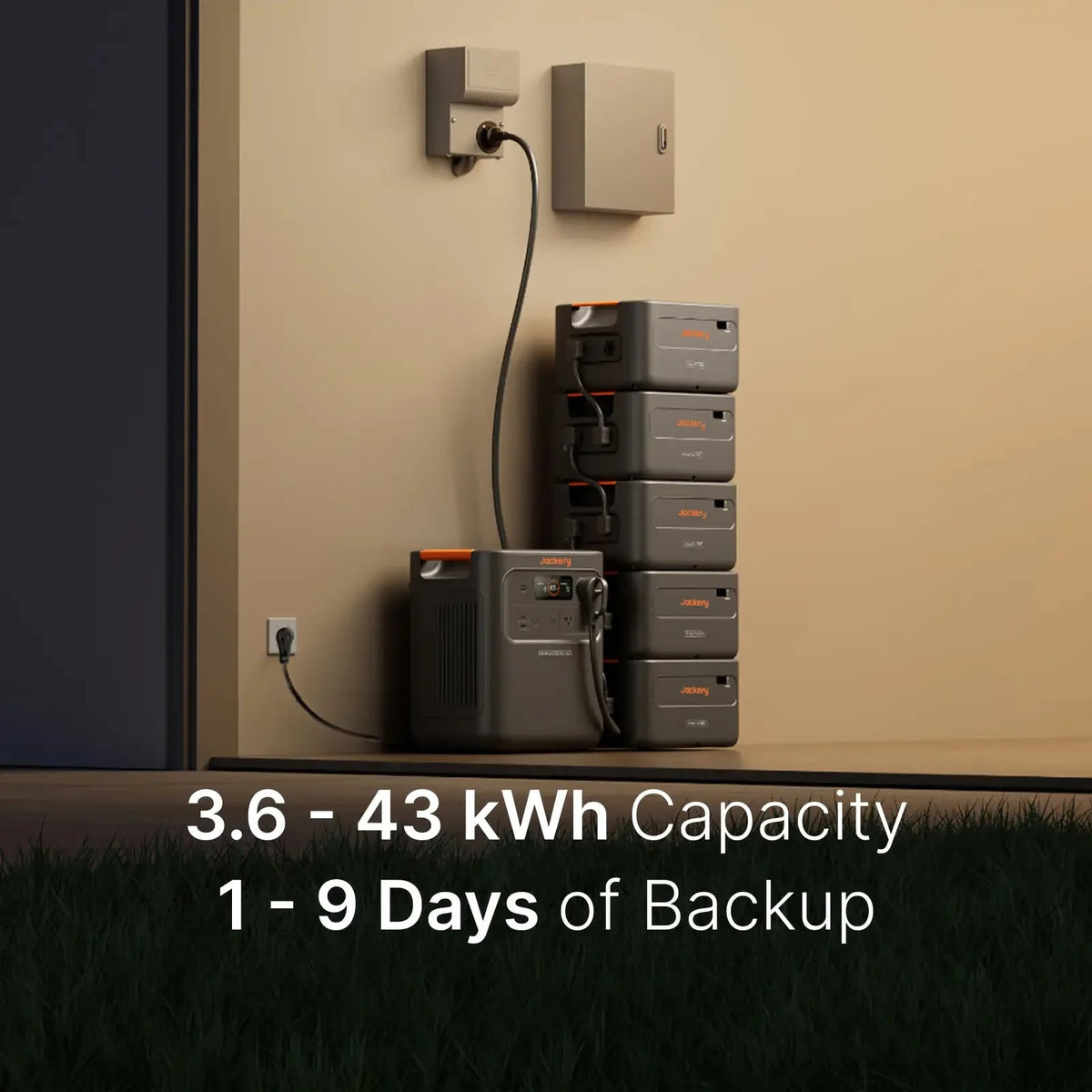

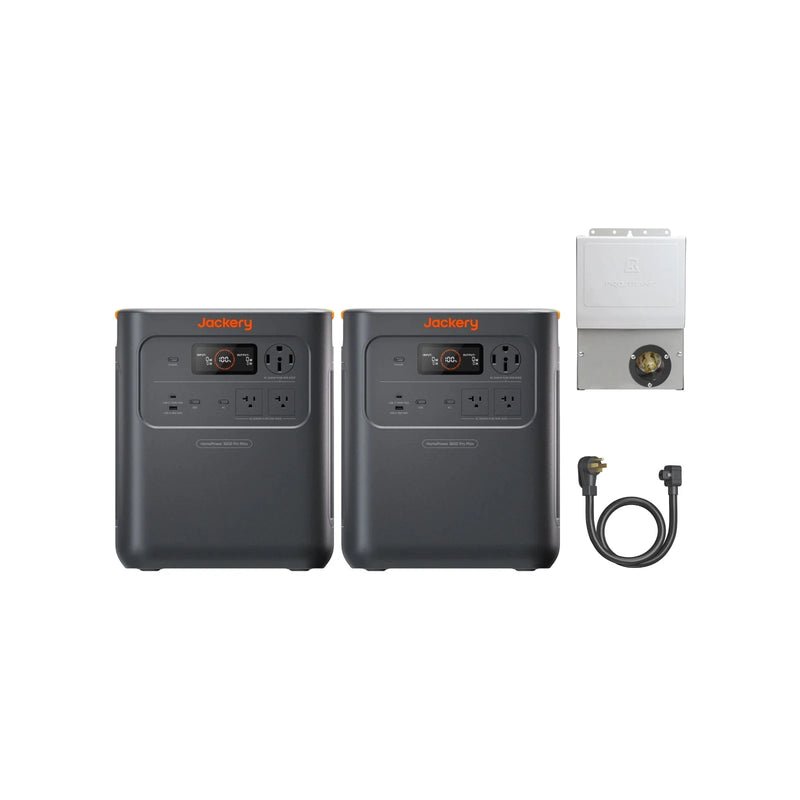

- Capacity: 3,584Wh, expandable to 21.5kWh (single) or 43kWh (two units in parallel)

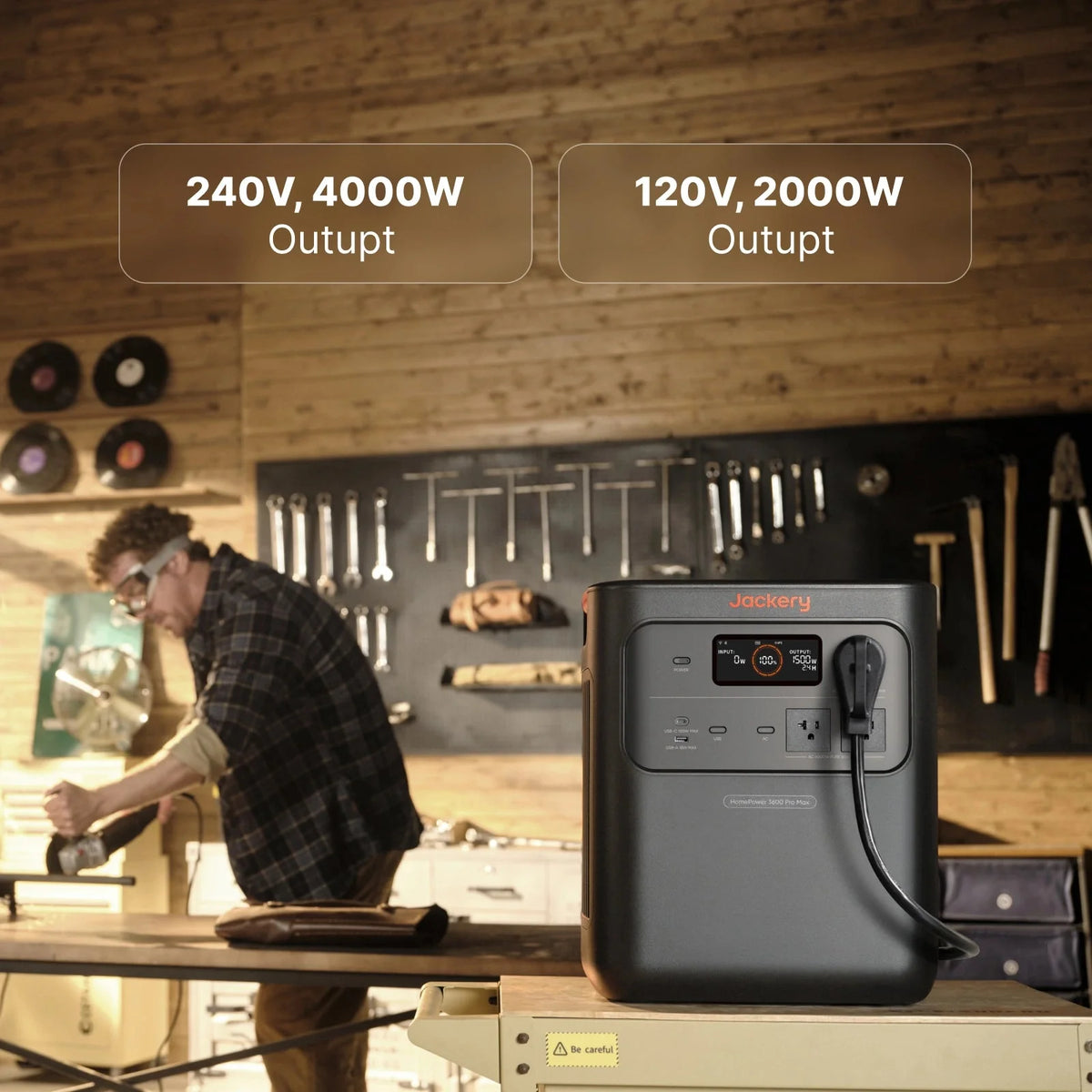

- AC output: 4,000W at 240V or 2,000W at 120V from one unit
- UPS switchover: under 10 ms
- Cell chemistry: EV-grade LiFePO4, 6,000 cycles
- Certification: UL 9540, 5VA-grade fireproofing, EPO emergency stop
- Noise: under 30 dB
- Recharge: 8 methods including gas generator
- UPC: 810182245508
- Jackery part number: 21-0001-000430
Genuine Jackery, shipped from Upland in 3–7 days and backed by the manufacturer's warranty. Sold by RV Parts Giant alongside our RV electrical and solar parts.
What it runs
- Biggest single appliance: up to 2,000 W (4,000 W surge)
- Gas furnace blower (300 W): about 10.2 h
- Starlink Standard dish (75 W): about 40.6 h
- Microwave (1,000 W): about 3.0 h
2,000 W at 120V; 4,000 W (8,000 W surge) at 240V through a NEMA 14-50R outlet. Surge at 120V is 4,000 W.
Which solar fits

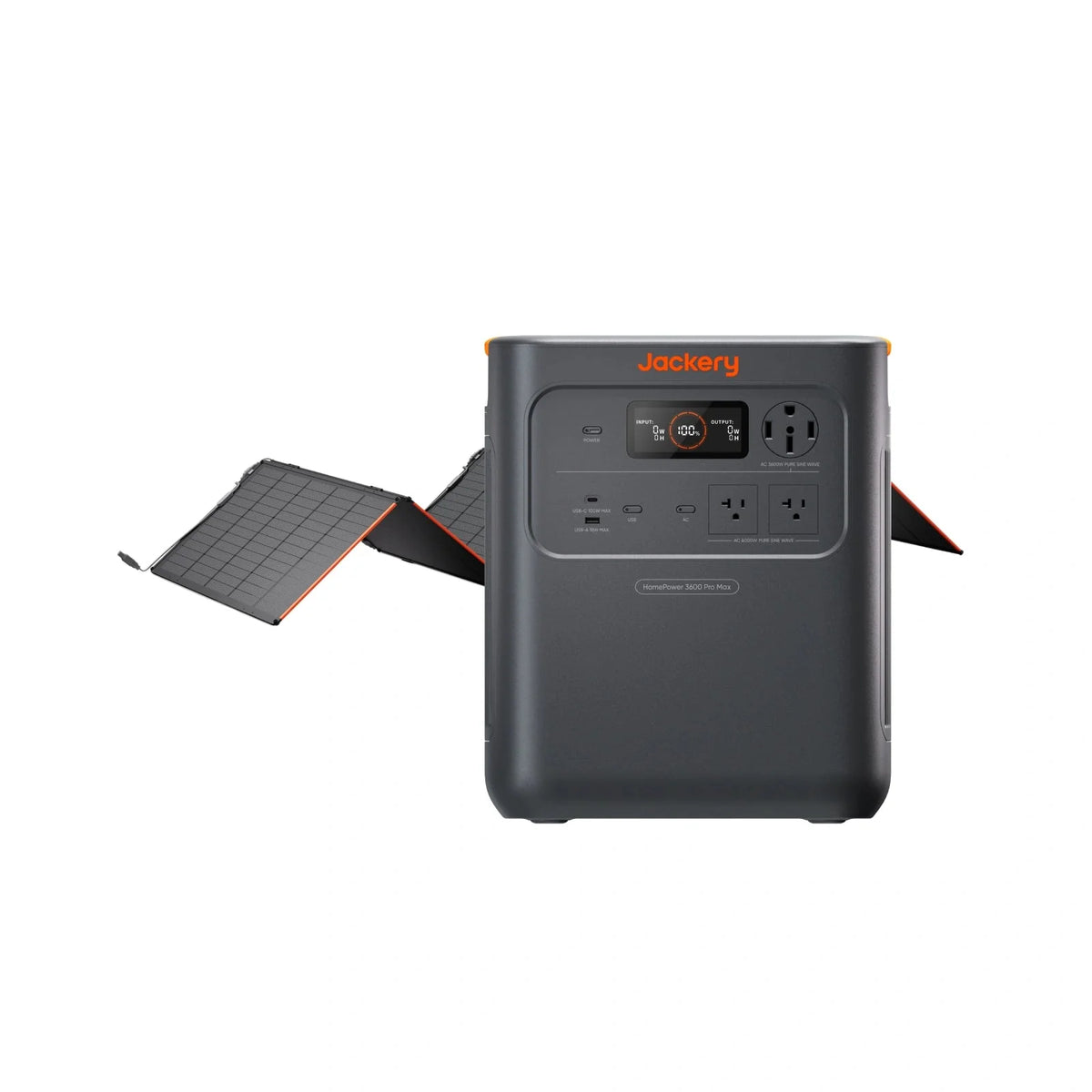

Jackery doesn’t publish a maximum in its spec table. It sells this unit with a SolarSaga 500 X.
Hours = 3,584 Wh × 0.85 ÷ watts, our planning estimate; appliance watts are Jackery’s typical figures. See HomePower for RV and home backup and How many SolarSaga panels can my Jackery take?.
Shop the full Jackery range, Jackery solar panels and Jackery expansion batteries.
Eligible unused and uninstalled physical products may be returned
within 30 days after delivery.
Regular sale and discounted products are eligible for return.
Only products clearly marked “Final Sale” before purchase are
non-returnable.
Conditions and exclusions apply. See our Return and Refund Policy.
Free standard shipping is available on eligible physical-product orders delivered within the contiguous United States, with no minimum order amount.
Black Series generic replacement parts and products or orders that are oversized, require freight shipping, are special-order, contain hazardous materials, or are delivered to remote or limited-access areas are excluded. Any applicable shipping charge will be displayed at checkout before you submit your order.
In-stock products are generally processed within 1–2 business days. Estimated delivery is approximately 4–12 business days, depending on the product, destination, carrier, and delivery method.
Alaska, Hawaii, U.S. territories, and international destinations are not included in the contiguous United States free-shipping offer. See our Shipping Policy for complete details.
Buying a system, not just a part?
At this size the right answer depends on your rig, your loads and how you camp. Tell us what you are trying to run and we will price the whole build before you order - cable, fusing and all - or confirm this is the right part for the job.
Talk to a power specialist - 1-844-GIANT-44 (844-426-8344) Book a consultation · Size it yourself · Pay over time
Frequently Bought Together
After spending 46 hours without power during the July 4th holiday limping along with a gas generator that could not meet our needs I started looking for a reliable power system to power critical loads in our home for an extended period. The relatively new Jackery 3600 Pro Max is a system targeting home power backup. The system can carry both 240v & 120v loads, provides USB outlets, and is compatible with manual transfer switches and Jackerys ATS. The Jackery 3600 Pro Max acts as an auto-transfer system when connected with a manual transfer switch. The system supports additional batteries to extend supply during an outage. During an outage I will power six critical loads and plan on charging the Jackery 3600 Pro Max daily as needed. I have tested the system by failing grid power and the Jackery 3600 Pro Max kept power to my critical loads perfectly. I will add additional batteries in the future and may add a Jackery 5000 Solar Generator to my house as well.
Originally posted on jackery.com, Jackery's official store, and shared here by RV Parts Giant, an authorized Jackery dealer.
For a medium size home around 1250 sq. ft. The 3600 Pro Max is ideal for backup power and it may also be used power for the house off grid.
Originally posted on jackery.com, Jackery's official store, and shared here by RV Parts Giant, an authorized Jackery dealer.
Been using this now for a couple weeks. Loving it. It seems to be working great for my usage.
Originally posted on jackery.com, Jackery's official store, and shared here by RV Parts Giant, an authorized Jackery dealer.
Wouldn’t know. I haven’t been able to interconnect my Jackery system until Jackery figures out what are all the correct connections and cables needed. So far, Jackery is not scoring very high for equipment knowledge and being able to understand the statements and pictures I have sent. If you are going to sell new items, you need to insure you list everything that is or might possibly be used to interconnect that equipment. As the customer, I should not be the one to point out deficiencies and correct incorrect equipment connections.
Originally posted on jackery.com, Jackery's official store, and shared here by RV Parts Giant, an authorized Jackery dealer.
Wish it still had wheels it is so heavy! In full bright sun the 500w panel was only inputting 172w so far it has not been able to sustain my camper for 1 weekend. We didnt even use the AC! Not sure how this unit would carry my basic home needs in the event of an outage. So far not impressed unfortunately.
Originally posted on jackery.com, Jackery's official store, and shared here by RV Parts Giant, an authorized Jackery dealer.
Great to have lfp battery rather than Lithium. Battery is easy to maneuver with the carry handle and operate with display or App. Still have to connect it to the main panel with my electrician to see how well the install instructions and operations work. Difference of auto panel to manual switch operation seems to be explained ok. Since the manual switch was the only available for sale went with that option with extra cable. May try add on battery packs in future
Originally posted on jackery.com, Jackery's official store, and shared here by RV Parts Giant, an authorized Jackery dealer.
So far I charged it up tested it for what my main concern was a sump pump and refrigerator it worked great didn't get to try out the solar panels yet but so far so good T Y
Originally posted on jackery.com, Jackery's official store, and shared here by RV Parts Giant, an authorized Jackery dealer.
So far it's really great. We have tried charging with the solar panels and even on a coudy day we had good charging. It's really holding the charge too. The only drawback is that it is not on wheels, but we have it on a platform with wheels so we can move it as needed. We're really glad we have it!
Originally posted on jackery.com, Jackery's official store, and shared here by RV Parts Giant, an authorized Jackery dealer.
Pleased so far except my unit does not have wheels nor a telescopic handle. Several pics that I saw when I ordered mine, showed my model having both.
Originally posted on jackery.com, Jackery's official store, and shared here by RV Parts Giant, an authorized Jackery dealer.
This is much better than my delta 2. The software is much better, the 10ms transfer is quick enough to not trip my connected sources, and the app actually works.
Originally posted on jackery.com, Jackery's official store, and shared here by RV Parts Giant, an authorized Jackery dealer.
