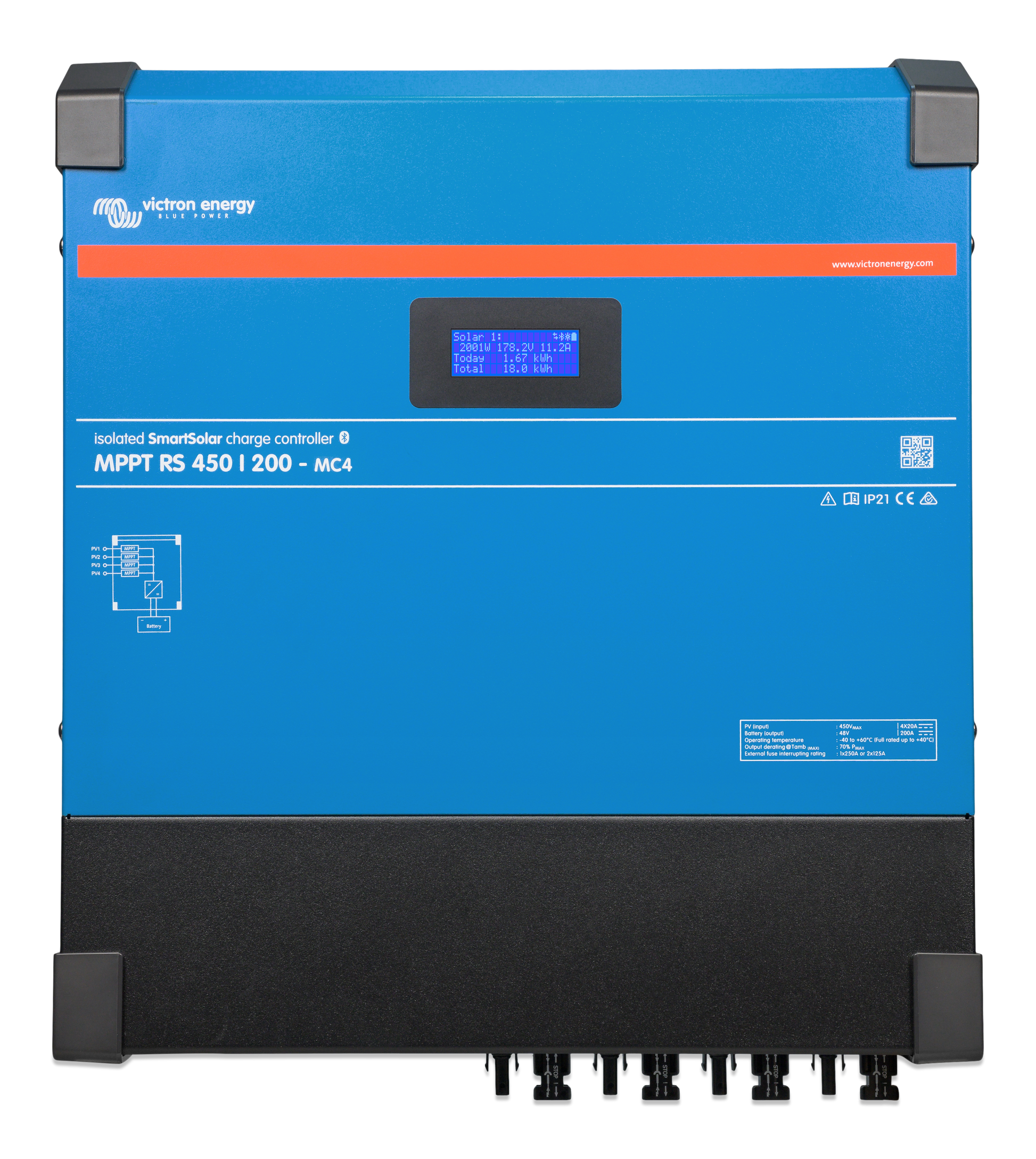

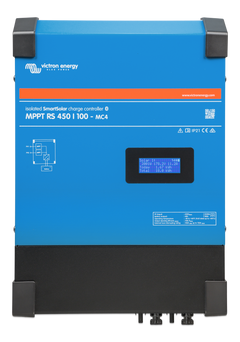

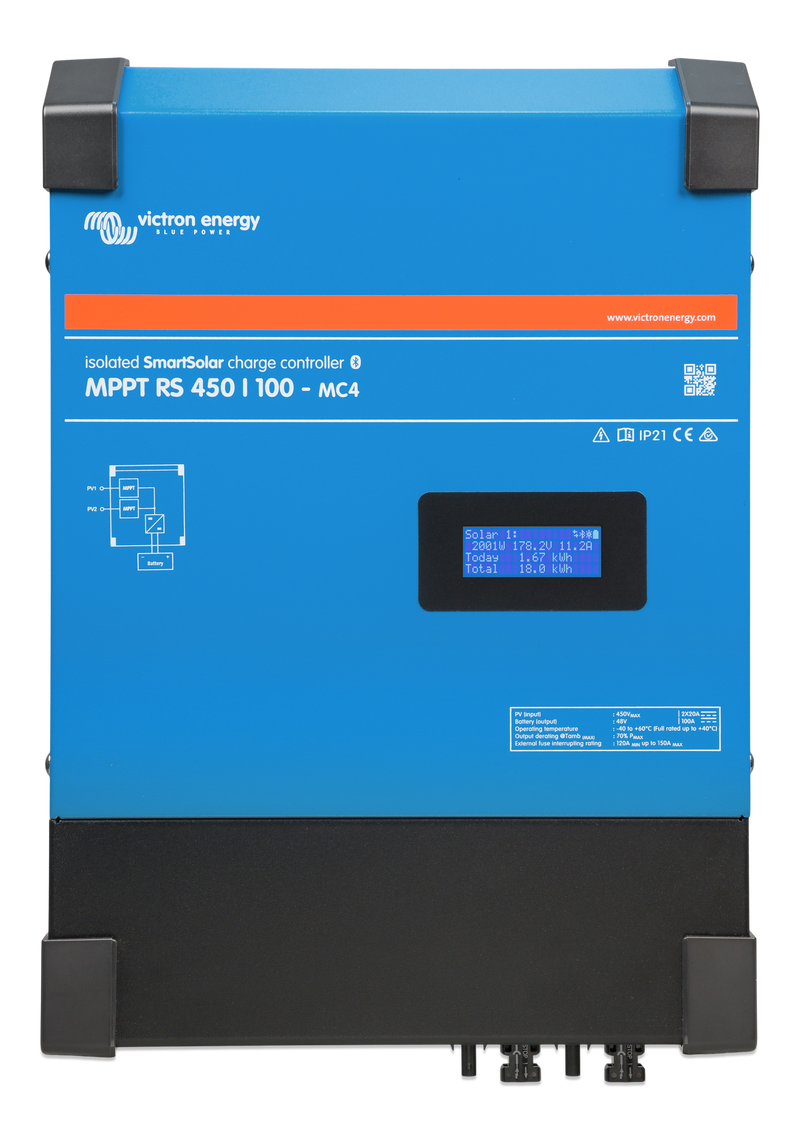

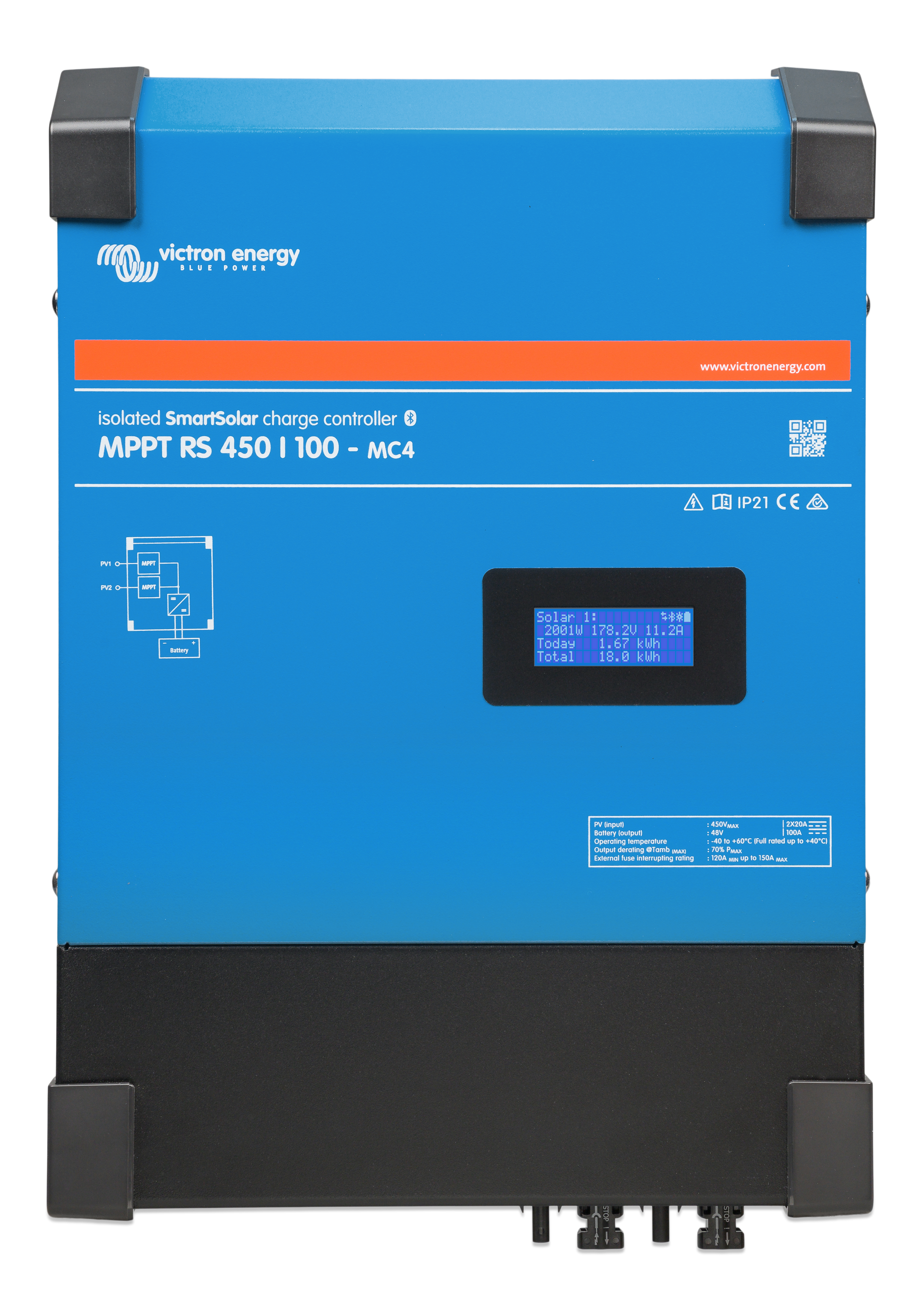

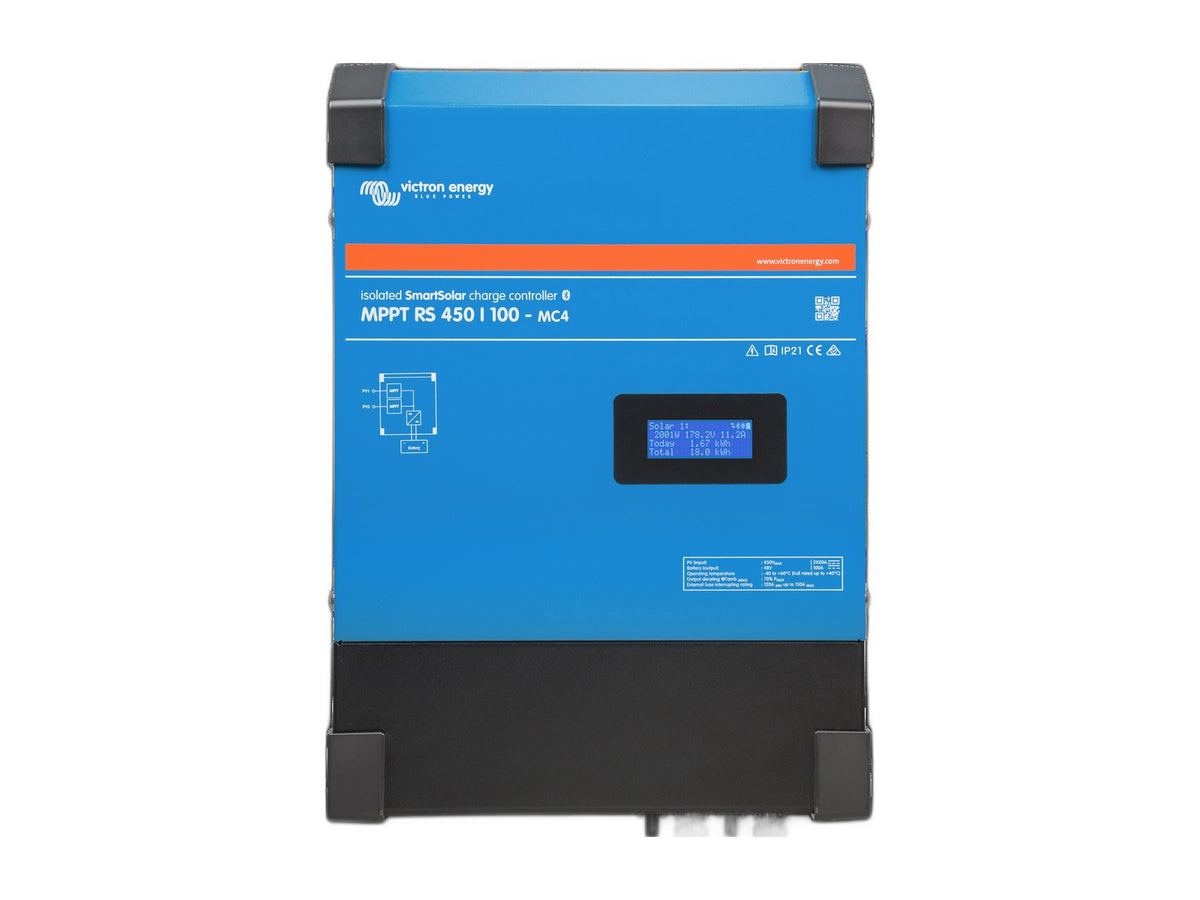

Victron SmartSolar MPPT RS 450/100 and 450/200 Solar Controller
- Regular price
- $1,076.90
- Sale price
- $1,076.90
- Regular price
-
$1,434.00
Victron list $1,434.00 · you save $357.10
Add a protection plan
Provided and serviced by Mulberry. What's covered
Prepaid return label, no restocking fee. Details
Couldn't load pickup availability
Free Shipping (ships from Upland in 3–7 days) & Free 30-Day Returns — prepaid return label, no restocking fee. Details
Authorized U.S. Victron Energy dealer · Genuine Victron with the full manufacturer warranty
The Victron SmartSolar MPPT RS 450/100 and 450/200 are high-voltage solar charge controllers for large 48V off-grid and grid-connected systems — accepting up to 450V of series-connected PV across independent MPPT trackers, with isolated PV connections, an integrated display, and active cooling. Available in 5.76kW (100A) and 11.52kW (200A) models.
Building a big system? Our Victron MPPT sizing guide helps you plan it. Browse all solar charge controllers.
Specifications
- Brand: Victron Energy
- Part number: Varies by option
- Type: High-voltage MPPT solar charge controller
- Models: RS 450/100-MC4 (5.76kW) or RS 450/200-MC4 (11.52kW)
- PV input: 65–450 VDC (120 VDC start-up)
- Battery: 48V
- PV isolation: Galvanically isolated PV connections
- Interfaces: Display, Bluetooth, VE.Can, VE.Direct
- Size: 17.3 x 12.3 x 4.9 or 19.2 x 17.1 x 5.8 by model
The SmartSolar MPPT RS is Victron's solution for systems with large series-connected PV arrays charging 48V DC battery banks — perfect for large off-grid and grid-connected battery systems. Features include a wide 65–450 VDC solar voltage input (120 VDC startup), independent tracking inputs, full connectivity, isolated PV connections, a display screen, fully programmable charging parameters, and active cooling.
Multiple independent MPPT trackers let you optimize panel layout for your location. Isolated PV connections provide full galvanic isolation for added safety, and PV isolation resistance monitoring detects unsafe faults at higher voltages. The unit is light, efficient, and quiet thanks to high-frequency technology. Display and Bluetooth show battery and controller parameters and allow setup via VictronConnect. VE.Can and VE.Direct ports connect to a GX device for monitoring, logging, and remote updates; VE.Can supports up to 25 units in parallel. Programmable relay, temperature sensor, auxiliary, digital input, and voltage sense connections are included; the remote input accepts the Victron smallBMS and other allow-to-charge BMS signals.
| SmartSolar MPPT RS 450/100-MC4 | 17.3 x 12.3 x 4.9 |
| SmartSolar MPPT RS 450/200-MC4 | 19.2 x 17.1 x 5.8 |
Victron part numbers: SCC145110512; SCC145120510
