Most factory Class B vans built in the last several years charge the house battery from the engine through a battery isolation manager, and the lithium version of it, the Li-BIM 225, is common enough that owners refer to it by name. When those owners upgrade the house bank to a bigger lithium battery, the question on every Class B board is the same: keep the Li-BIM, or replace it with a DC-DC charger.
They are different devices doing different jobs, and the right answer depends on the alternator you have and the bank you are building.
What a Li-BIM actually does
A battery isolation manager is an intelligent relay. It sits between the starter battery and the house battery, keeps them separate so one cannot drain the other, and connects them together when the engine is running so the alternator charges both.
The lithium version adds a duty cycle, and this is the part most owners have never had explained. During normal charging the Li-BIM 225 connects for 15 minutes, disconnects for 20, and repeats, so it is connected 15 minutes in every 35. It disconnects when the house battery's resting voltage rises above 13.4 volts, which it treats as full. It carries 225 amps continuously and 1,200 amps for 30 seconds, and it draws nothing in either state.
The duty cycle exists to protect the alternator. A lithium bank will take every amp an alternator can produce for as long as it is connected. Connecting it for 15 minutes and then giving the alternator 20 minutes to cool is the isolation manager's way of stopping the alternator cooking without limiting current directly.
What it does not do is regulate. When connected, the house battery sees whatever the alternator puts out, at whatever current the wiring allows. There is no charge profile, no absorption or float stage, and no current limit other than the wiring and the duty cycle.
What a DC-DC charger does differently
A DC-DC charger is a regulated charger fed by the starter battery. It takes whatever the alternator provides and delivers a fixed, chosen current to the house bank with a proper multi-stage lithium profile.
The consequences are the mirror image of the Li-BIM:
- Current is limited by design, to the charger's rating, not by a timer. A 50 amp DC-DC charger draws 50 amps continuously and never more, so the alternator's load is known and constant rather than cycling between everything and nothing.
- The bank gets a real charge profile, bulk, absorption and float at the voltages your battery specifies, rather than raw alternator voltage.
- Charging is continuous, not 15 minutes in 35, so over a drive of any length the bank receives more energy at a lower peak load.

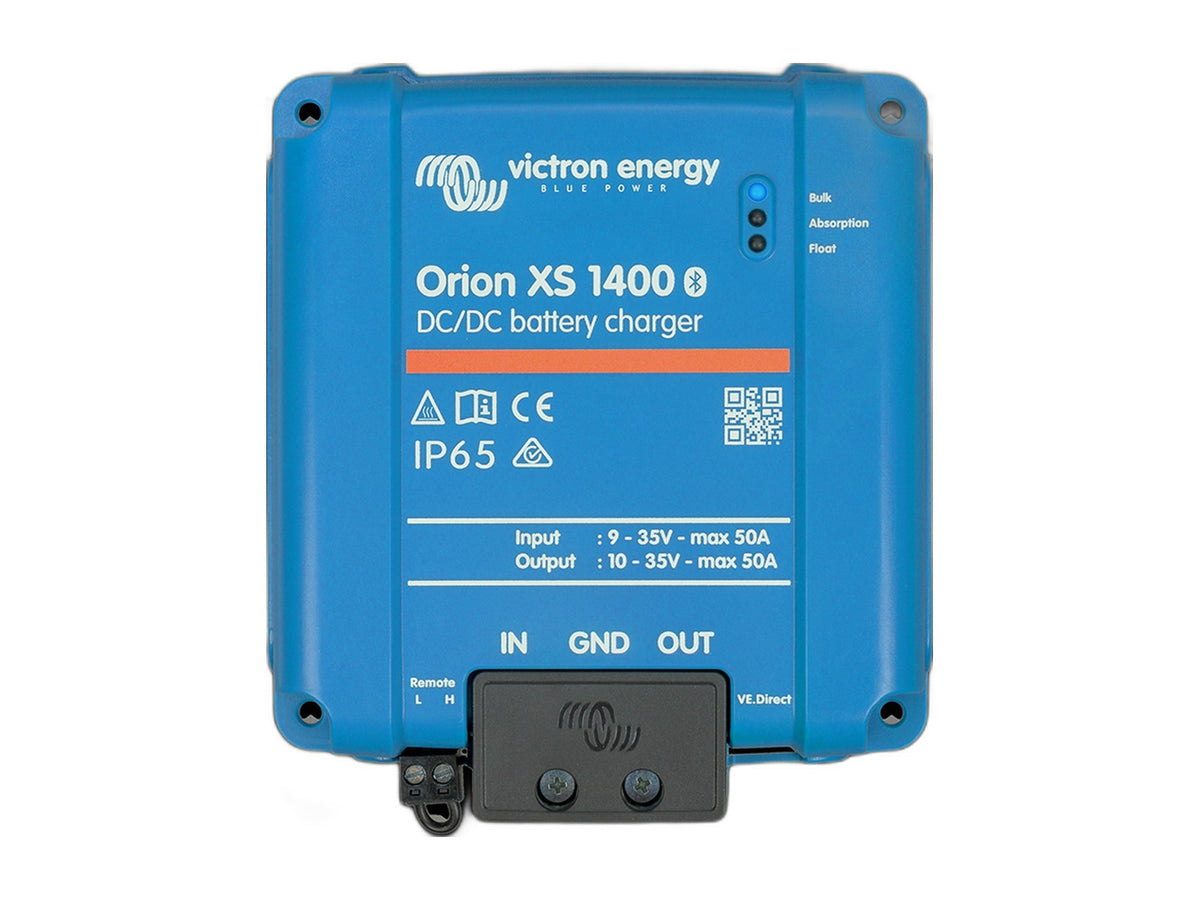

- It works with smart alternators, which vary their output voltage and shut down when the vehicle decides no charge is needed. An isolation manager on a smart alternator can find itself connected to a source that has dropped out. The Orion XS detects engine running from alternator voltage, with a smart-alternator mode, and backs its own current off rather than dropping out when input voltage sags.
So which one
Keep the Li-BIM if the bank is modest, the alternator is a standard fixed-output unit, and you are happy with the duty cycle. Many owners run this way for years. It is simple and it was designed for exactly this.
Fit a DC-DC charger if any of these is true:
- You have installed a larger lithium bank than the van came with, and want it charged at a known rate rather than whatever the alternator surrenders.
- The van has a smart or variable-voltage alternator.
- You want to charge continuously on a long drive rather than 15 minutes in 35.
- You want the charging data in the same app as the rest of the system.
- You have had the alternator run hot, or a belt or alternator failure, since going lithium.
The Orion XS is the unit for a 12 volt van where starter and house share a chassis ground, which is the usual Class B arrangement, and it is the model owners on the Class B boards are actually fitting. Where the two systems need separate grounds, the Orion-Tr Smart isolated provides galvanic isolation. Our Orion XS versus Orion-Tr Smart guide covers the choice and the engine-detection settings in detail.
Size it to the alternator, not the battery
This is the mistake that turns a lithium upgrade into an alternator replacement.
A DC-DC charger draws its rated current from the starter battery, and the alternator has to replace that while also running the van. A 50 amp charger on a modest alternator that is also feeding air conditioning in slow traffic on a hot day is asking a lot. Find the alternator's continuous rating before choosing the charger, and if you do not know it, that is the number to find first.
A rule of thumb that circulates on the boards, that a DC-DC charger should not take more than about a third of the alternator's rating, is conservative but sensible for a van that idles in traffic with the air conditioning on.
What else changes when you swap
The converter. The van's shore-power converter has its own charge profile, and if it was built for the original battery it may undercharge lithium or, if it has an equalisation mode, harm it. Our guide to converter upgrades for lithium covers what has to change on the shore side.
Monitoring. On lithium, voltage stops telling you state of charge. A SmartShunt counts amp-hours in and out and reports the real percentage, and it shares data with the Orion XS over Bluetooth so the two appear in the same app.
Fusing. A larger lithium bank delivers far more short-circuit current than the original battery, and the fuse nearest it needs an interrupt rating to match. Our cable and fuse sizing guide covers the rule.
Cable. A DC-DC charger on a long run from the engine bay to the house battery needs cable sized for the current and the distance. On a long-wheelbase van that run is often long enough to push you up a gauge.
A note on model-specific installs
Where the isolation manager sits, how the factory converter is wired, and which terminal feeds the house bank differ between a Roadtrek, a Travato, a Tellaro and the rest, and they change between model years. We have not published van-by-van wiring guides because we would be describing layouts we have not verified, and a wrong terminal in a wiring guide is worse than no guide. Your van's electrical schematic, or a photo of the isolator and its connections sent to us, is the right starting point.
