"Drop-in replacement" is how lithium batteries are usually sold, and mechanically that is fair. They fit the same tray and land on the same terminals.
Electrically it is not that simple. The battery is the easy part. What normally has to change is everything that charges it, and one thing that protects it.
Here is the full list, ordered by how likely it is to bite you.
1. The converter, because a lead-acid profile never fills a lithium battery
Your RV's converter is the box that turns shore power into 12 V DC to run the coach and charge the house batteries. Most factory converters are built around a lead-acid charge profile, and that profile is wrong for lithium in two different directions.
It undercharges. Many converters spend most of their life in a float stage around 13.6 V. A lead-acid battery is happy there. A lithium battery sitting at that voltage will settle somewhere well short of full, which is why owners who swap the battery and change nothing else so often report their expensive new bank behaving like a smaller one than they paid for.
Some actively harm. Converters with an equalisation or desulfation mode periodically push a deliberately high voltage to boil the electrolyte in a flooded battery. Lithium has no electrolyte to stir and does not tolerate that treatment. If your converter has an equalise mode, it must be disabled or the converter replaced.

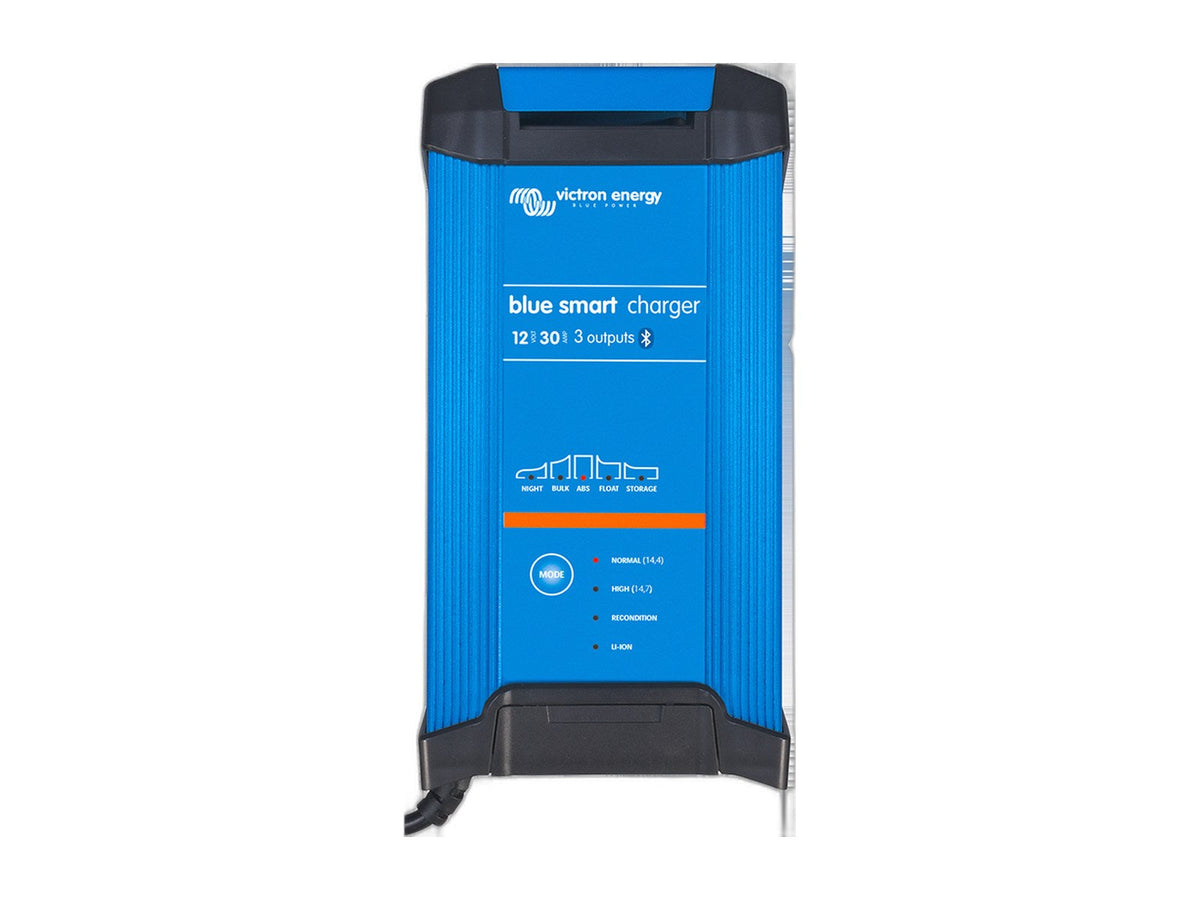

What to do. Either fit a converter with a genuine lithium profile, or fit a charger you can configure. The Blue Smart IP22 and the Smart IP43 both let you select the profile from your phone, which matters because the correct absorption and float voltages come from your battery manufacturer, not from a generic lithium preset. Different LiFePO4 packs specify different numbers. Use the figures in your battery's datasheet.
2. The alternator path, because this is the one that costs money to get wrong
This is the change owners skip most often and regret hardest.
A lead-acid battery limits its own charge current as it fills, because its internal resistance rises. Lithium does not. A depleted lithium bank will accept everything the alternator can produce, for as long as the alternator can produce it, and it will keep accepting it while the alternator cooks.
Modern vehicles make this worse. A smart or variable-voltage alternator adjusts output for the starter battery's needs and may drop its voltage well below what a lithium house bank needs, so you get the risk without even getting a full charge.
The fix is a DC-DC charger between the starter battery and the house bank. It draws a current you choose rather than whatever the battery demands, and it outputs the profile lithium needs regardless of what the alternator is doing.
- The Orion XS is the current high-output non-isolated unit.
- The Orion-Tr Smart isolated adds galvanic isolation, which you want where the two systems do not share a reliable common ground, and in most marine installs.
Size it against the alternator, not the battery. A large DC-DC charger on a modest alternator is exactly the overheating problem you were trying to avoid. If you are unsure of your alternator's continuous rating, that is the number to find before choosing a model.
3. Solar, if you have it
A solar charge controller has its own charge profile and it needs the same treatment as the converter. Any decent MPPT controller can be set to lithium.
The SmartSolar MPPT range configures from your phone. Set it to your battery's specified figures, not to a default.
Check every charging source. A system where the converter and the DC-DC charger are set to lithium but the solar controller is still on a lead-acid profile will behave unpredictably, because whichever source is active at the time decides the outcome.
4. Low-temperature charging, the one genuinely new failure mode
LiFePO4 must not be charged below freezing. Charging a cold lithium cell plates lithium metal onto the anode, which permanently reduces capacity and can create an internal short. It is cumulative and it is invisible until the battery fails.
Discharging in the cold is fine. It is charging that does the damage.
Three ways to handle it:
- A battery with internal low-temperature cutoff. The battery's own management system refuses charge when it is too cold. This is the simplest answer and it is why the specification is worth checking before you buy. The Victron LiFePO4 Smart and SuperPack ranges are built around a managed approach.
- A battery with self-heating, which draws a little power to warm the cells before accepting charge.
- External control, using a temperature sensor to inhibit charging.
If your camper is stored or used anywhere that goes below freezing, this is not optional.
5. Monitoring, because voltage stops telling you anything
On a lead-acid battery, resting voltage is a usable proxy for state of charge. On lithium it is not. The discharge curve is famously flat, so the same voltage covers a very wide range of remaining capacity, and it tells you almost nothing until the battery is nearly empty.
Fit a shunt-based monitor. A SmartShunt counts amp-hours in and out and reports actual state of charge to your phone.
This is not a nice-to-have on lithium. Without it you are guessing, and the whole reason for buying lithium was to use more of the capacity with confidence.
6. Fusing, which most upgrades never revisit
Lithium delivers far higher short-circuit current than the lead-acid bank it replaced. Victron's own wiring handbook states that in every lithium installation, at least one fuse in the DC line must have an interrupt rating at or above the bank's maximum prospective short-circuit current, and describes that as a mandatory safety requirement.
Interrupt rating is not the same as the amp rating printed on the fuse, and common DC fuse types differ enormously on it. A fuse that was correct for your old batteries may not be correct now.
We cover this properly in Victron DC cable and fuse sizing for RV systems. If you read one thing before finishing a lithium conversion, read that.
7. Low-voltage disconnect
Lithium's flat discharge curve means the coach gives you very little warning before the battery management system disconnects to protect itself. That can mean everything shuts off at once rather than dimming gracefully.
A Smart BatteryProtect disconnects loads at a threshold you choose, so non-essential loads drop before the battery protects itself and takes the whole coach with it.
What does not need to change
To keep this in proportion:
- 12 V loads are fine. Lights, pumps, fans and fridges do not care.
- The inverter is usually fine, though it is worth checking its low-voltage cutoff sits sensibly against your battery's limits.
- Cable sizing does not change because of chemistry alone, though it may change if you take the opportunity to add an inverter or increase current.
A sensible order of work
- Confirm your battery's specified charge voltages and its low-temperature behaviour.
- Set or replace the converter.
- Set the solar controller.
- Add a DC-DC charger sized to the alternator.
- Fit a shunt monitor.
- Review fusing, especially interrupt rating.
- Add low-voltage disconnect for non-essential loads.
Steps one to three are what make the battery work. Step four is what stops an expensive tow. Step six is what stops a fire.
If you tell us your battery model, your alternator rating and what charges the bank today, we will work through the list with you before you order anything. Everything ships from Upland, California.
