If your RV or van's house battery only charges when you're plugged into shore power or sitting in full sun, you're leaving free energy on the table every time you drive. A Victron Orion DC-DC charger takes the raw, irregular voltage coming off your vehicle's alternator and turns it into a proper multi-stage charge for your house battery bank — safely, and without overloading your alternator. This guide walks through how Orion chargers work, which version is right for your setup, and how to size one correctly.
Why a DC-DC charger, and not just a battery isolator?
Older dual-battery setups used a simple voltage-sensing relay (VSR) or isolator to connect the starter and house battery whenever the engine was running. That approach is fine for two lead-acid batteries of similar chemistry, but it breaks down with modern setups for a few reasons:
- Lithium batteries need a real charge profile. A raw alternator connection doesn't taper voltage correctly for LiFePO4 cells, and can leave the battery undercharged or trip its internal BMS.
- Smart alternators complicate things. Many newer tow vehicles and vans use variable-voltage "smart" alternators that don't hold a steady 14.2–14.4V, so a direct connection charges inconsistently — sometimes not at all.
- Alternator protection matters. A lithium house bank has very low internal resistance and will try to pull far more current than a small stock alternator is rated for if it's wired straight to it.
A Victron Orion DC-DC charger solves all three: it takes whatever voltage the alternator is putting out, current-limits it to a safe rate, and delivers a proper adaptive multi-stage charge (bulk, absorption, float) to your house battery — whether it's AGM, gel, or lithium.
Isolated vs. non-isolated: which do you need?
Every Orion charger comes in two flavors, and picking the wrong one is the most common mistake buyers make.
Non-isolated chargers share a common negative/ground between the starter and house side. They're less expensive and simpler to wire, and they're the right call for the vast majority of single-chassis RV and van installs where the starter battery and house battery share the same vehicle ground.
Isolated (galvanic isolation) chargers keep the input and output completely separate, including the ground reference. You need this when:
- Your house battery bank and starter battery are on genuinely separate ground/chassis systems (common in trailers towed behind a tow vehicle, or truck campers with their own frame ground)
- You're charging a boat battery from an outboard or engine with its own bonding system
- Local wiring codes or your rig's electrical design require galvanic isolation for safety

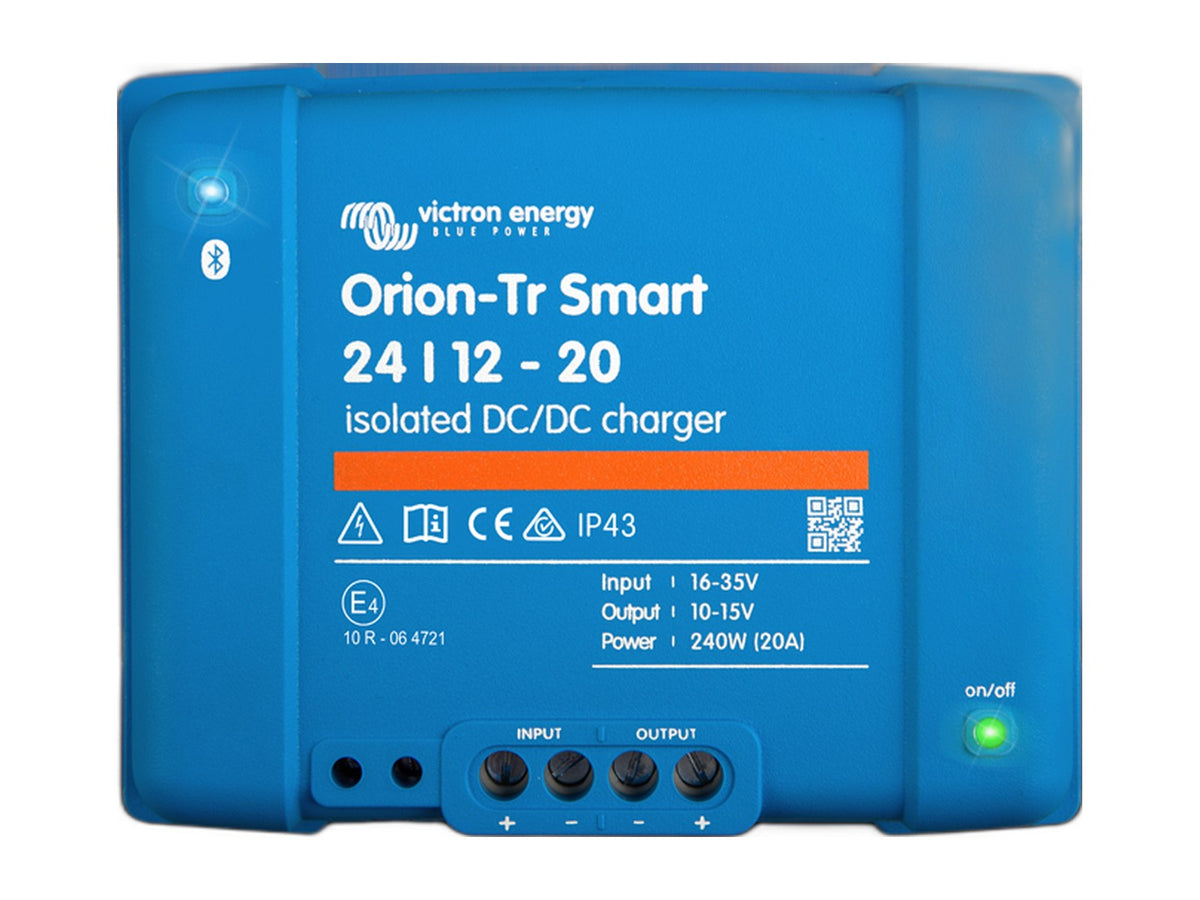

For a standard motorhome, camper van, or truck bed build where everything shares one chassis ground, non-isolated is simpler and cheaper. For a travel trailer or fifth wheel where the house battery lives in a separate structure from the tow vehicle, isolated is usually the safer, code-compliant choice. The Orion-Tr Smart Isolated DC-DC charger and Orion-Tr Smart Non-Isolated DC-DC charger are functionally identical otherwise — same Bluetooth monitoring, same adaptive charge algorithm.
Orion-Tr Smart vs. Orion XS: which model line?
Victron currently sells two generations of Bluetooth-enabled Orion chargers, and they're aimed at slightly different jobs.
Orion-Tr Smart
The established workhorse. Available in isolated and non-isolated versions, in a wide range of input/output voltage combinations (12/12, 12/24, 24/12, 24/24) and currents from roughly 9A up to 30A. It's fully programmable and monitorable over Bluetooth with the VictronConnect app, and it's the more affordable option if you don't need the newest features.
Orion XS
Victron's newer, higher-output design. The Orion XS DC-DC battery charger pushes up to 50A (or 70A in the larger variant) to a 12V house bank, runs at roughly 98.5% efficiency thanks to its aluminum PCB design, and includes smarter engine-running detection so it won't drain your starter battery if you're parked with the key on but the engine off. It also has a native VE.Direct port, which makes it easy to integrate into a Cerbo GX-based monitoring system. If you're charging a larger lithium bank (200Ah+) and want to top it off quickly on a drive, the XS is the better fit.
For lower-power applications — topping off a small battery, running 12V accessories off a 24V system, or converters in commercial vehicles — the compact Orion IP67 resin-encapsulated converter is a rugged, weatherproof option worth considering too.
Sizing your Orion charger
The right amperage depends on your battery bank size and how much driving time you actually get between charges. A rough rule of thumb Victron itself recommends: keep DC-DC charging current at or below about 50% of your alternator's rated output, so you're never putting the alternator under sustained max load.
- Small bank (100Ah or less, occasional weekend trips): An 18–20A Orion-Tr Smart is usually plenty and keeps wiring and fusing simple.
- Mid-size bank (100–200Ah, regular touring): Step up to a 30A Orion-Tr Smart, or consider the Orion XS 50A if you want faster recovery on shorter drives.
- Large lithium bank (200Ah+, full-time or off-grid heavy use): The Orion XS 50A or 70A is worth the extra cost — it will meaningfully cut down the drive time needed to refill a big bank.
Pair your charger with a battery sized to actually use that charge current. A Victron Lithium SuperPack with its built-in BMS is a straightforward drop-in that works cleanly with any Orion charger, and if you're running multiple lithium batteries together, a Lynx Smart BMS gives you centralized protection and monitoring across the whole bank.
Installation basics
A few things that trip people up during install:
- Fuse both ends. Fuse the input near the starter battery/alternator side and the output near the house battery — this protects the wiring run itself, not just the charger.
- Wire gauge matters. Undersized cable between the alternator and charger is the most common cause of an Orion charger underperforming its rated output. Size for the full rated current over your actual cable run length, not just the average.
- Engine-running detection. Orion chargers sense alternator voltage to know when the engine is running and it's safe to draw current — they don't need a separate ignition wire in most installs, though a remote on/off switch (like the Orion-Tr Isolated remote cable) is handy for manual override.
- VictronConnect setup. Every Smart-series Orion charger is configured over Bluetooth — you'll set your battery chemistry, absorption/float voltages, and charge current limit in the app rather than with DIP switches.
For a full parts list and wiring layout, see our Victron 12V system build guide, and browse the complete Victron BMS & battery protection lineup if you're building out a larger lithium bank.
Who can skip a DC-DC charger
If your rig is solar-only with no regular driving between charge cycles, or your factory converter/charger already handles everything you need at anchor, a DC-DC charger may not be worth the added wiring. It earns its keep specifically when you drive regularly and want that drive time to actually refill your house bank — which describes most full-time and frequent-touring RVers and van dwellers.
Frequently Asked Questions
Can I run an Orion DC-DC charger alongside solar?
Yes — this is one of the most common setups. The Orion charger handles charging while driving, and a Victron MPPT solar charge controller handles charging while parked. Both can feed the same battery bank without conflict since each manages its own charge stage independently.
Will a DC-DC charger drain my starter battery?
No, not when installed correctly. Orion chargers only draw current when they detect the alternator is running (engine on), and most models include a low-voltage cutoff that stops pulling from the starter battery if voltage drops too low — protecting you from a dead start battery.
Do I need the isolated version for a travel trailer?
In most travel trailer and fifth-wheel setups, yes — because the trailer's house battery system and the tow vehicle's starter battery are on separate chassis grounds connected only through the trailer plug, galvanic isolation is the safer and more common choice. Check your specific wiring before deciding.
